3-32

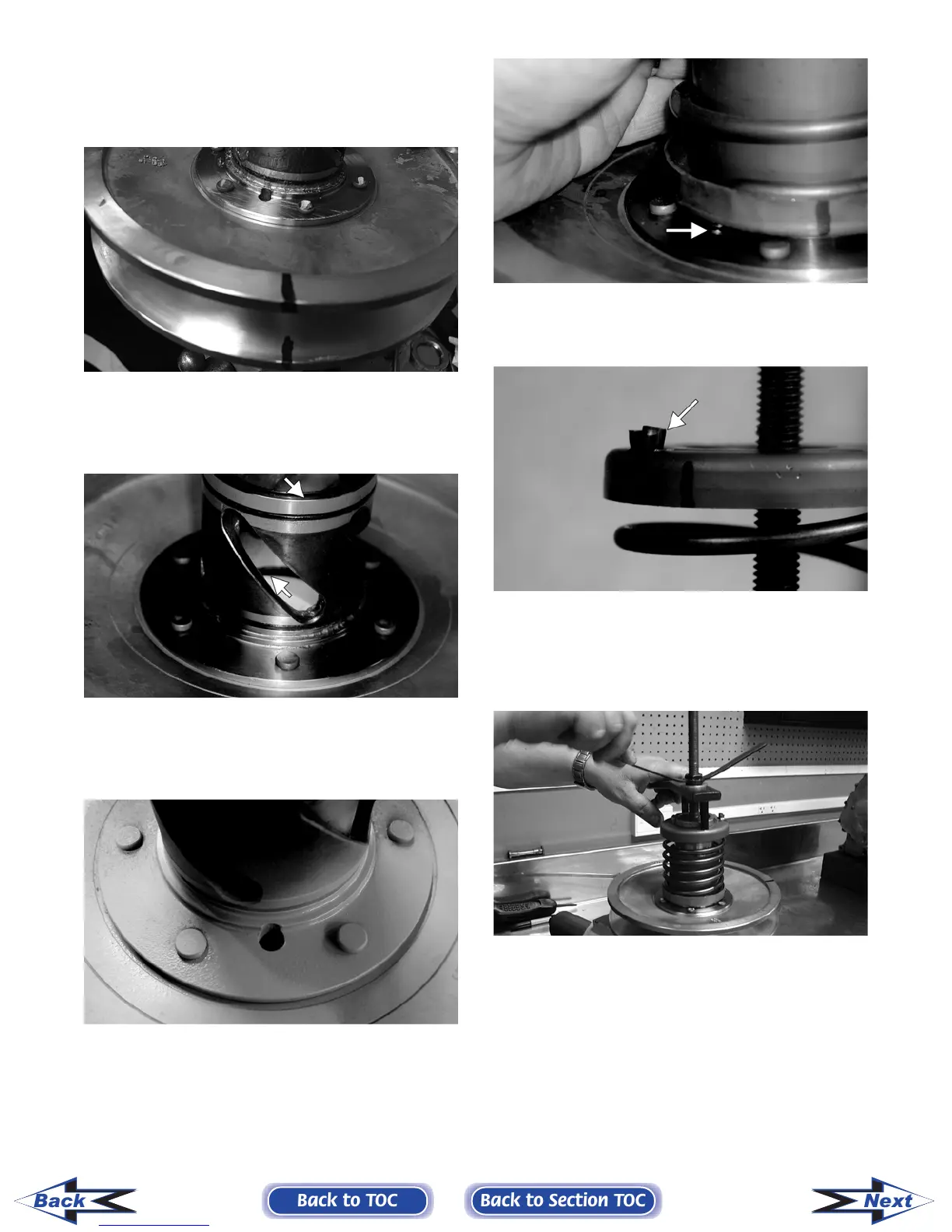

2. Apply multi-purpose grease to the O-rings and
grease seals on the movable face; then install on
the fixed face making sure the alignment marks
are properly aligned.
CD060
3. Install the four pins and spacers into the fixed
face hub; then pack the cam slots in the movable
face with multi-purpose grease.
CF095A
4. Install the movable face sleeve aligning the hole
in the spring seat with the spring anchor hole in
the movable face.
CF097
5. Install the spring over the hub and movable face
sleeve; then insert the end of the spring through
the sleeve and into the spring anchor hole in the
movable face.
CF089A
6. Place the spring holder on the spring engaging
the spring end with the appropriate anchor hole.
CF087A
7. Assemble the notched-ring nut, spring holding
handle, one flat washer, and the wing nut in
order on the pulley compressor bolt; then thread
the wing nut onto the bolt.
CD052
8. Compress the spring until the spring holder
nears the threads on the fixed face hub; then
using the handle, wind the spring holder coun-
terclockwise to align the flats of the spring
holder and hub.
