8-7
8
INSTALLING

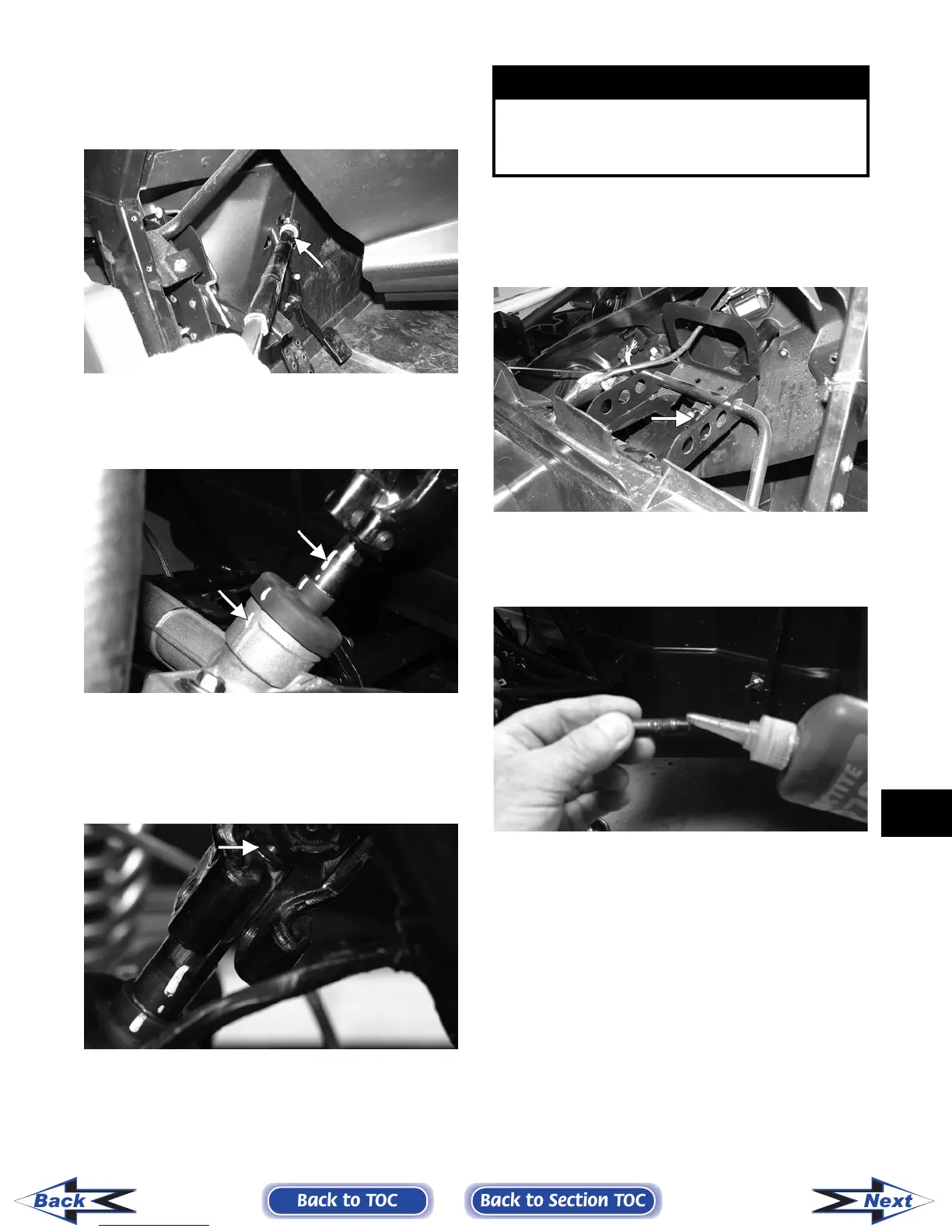

1. Place the steering shaft assembly into position
through the opening in the splash panel.
PR314A
2. Align the match marks on the pinion shaft and
the lower steering shaft joint; then slide the
steering shaft joint onto the pinion shaft.
PR333A
3. Apply green Loctite #270 to the cap screw; then
secure the lower steering shaft joint to the pinion
shaft making sure the pinion shaft does not pro-
trude into the joint beyond the clamping surface.
Tighten to specifications.
PR309A
4. Align the match mark on the upper steering
shaft joint with the mark on the steering wheel
shaft; then install the flat thrust washer and the
steering shaft joint onto the steering wheel shaft.
PR313A
5. Apply green Loctite #270 to the cap screw; then
install the cap screw in the upper steering shaft
joint and finger-tighten.
PR310
6. Install the flat thrust-washer and two wave
washers on the steering wheel shaft; then align
the match marks on the steering wheel shaft and
the steering wheel. Loosely install the nut.
! WARNING
Allowing the lower steering shaft joint to extend too
far onto the pinion shaft could cause binding or
lock-up of the steering joint resulting in loss of
steering control.
