2-5
2
CD747

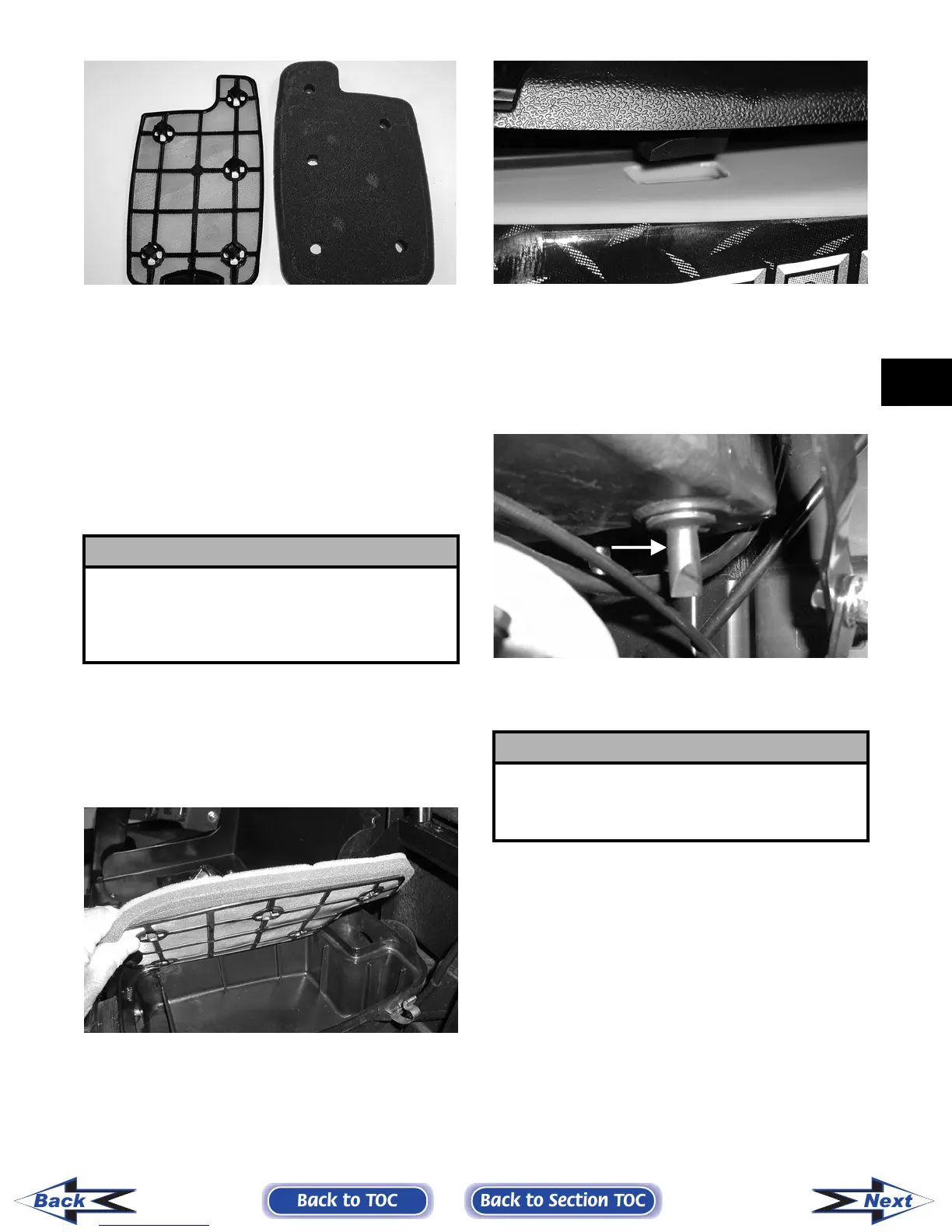

4. Fill a wash pan larger than the filter with a
non-flammable cleaning solvent; then dip the
filter in the solvent and wash it.
NOTE: Foam Filter Cleaner and Foam Filter Oil
are available from Arctic Cat.
5. Dry the filter.
6. Put the filter in a plastic bag; then pour in air fil-
ter oil and work the filter. Reattach the filter to
the filter screen.
7. Clean any dirt or debris from inside the air
cleaner. Be sure no dirt enters the carburetor.
8. Place the filter assembly in the air filter housing
making sure it is properly positioned and prop-
erly seated with the filter screen down.
PR090
9. Install the air filter housing cover and secure
with the retaining clips; then install the center
console and seats making sure the seats lock
securely.
CD670
CHECKING AND CLEANING
DRAINS
1. Inspect one-way drains beneath the main hous-
ing for debris and for proper sealing.
PR141A
2. Replace any one-way drain that is cracked or
shows any signs of hardening or deterioration.
3. Wipe any accumulation of oil or gas from the
filter housing and one-way drains.
! CAUTION
A torn air filter can cause damage to the vehicle
engine. Dirt and dust may get inside the engine if the
element is torn. Carefully examine the element for
tears before and after cleaning it. Replace the ele-
ment with a new one if it is torn.
! CAUTION
The one-way drain to the left is the clean air section
of the filter housing. Any leak of this one-way drain
will allow dirt into the engine intake causing severe
engine damage.
