2-19
2
PR108

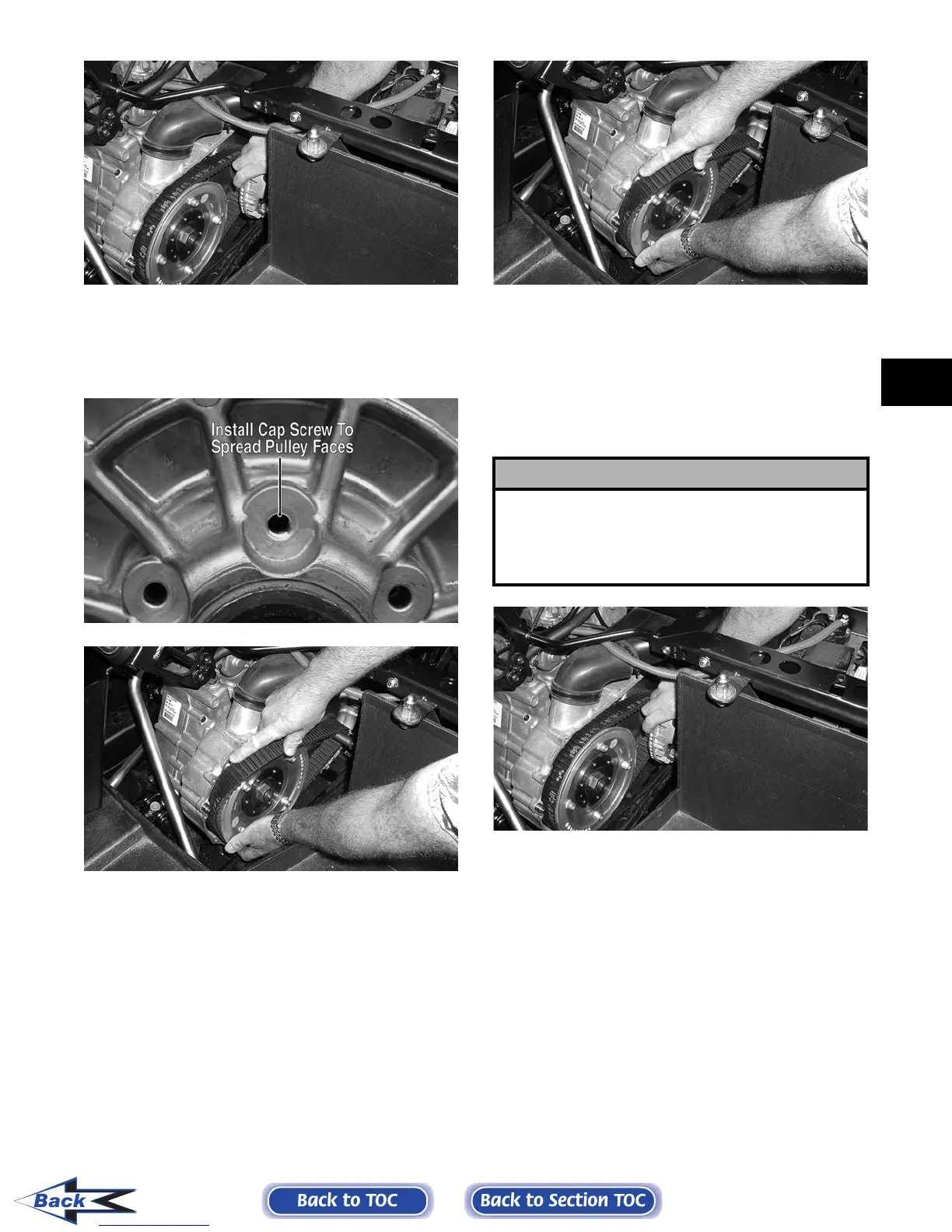

4. Install one of the V-belt cover cap screws into
the driven pulley fixed face; then turn the driven
pulley clockwise to spread the pulley faces.
Remove the V-belt.
PR476A
PR109
INSTALLING
1. Place the V-belt into position on the driven pul-
ley and over the front shaft.
PR109
NOTE: The arrow on the V-belt should point rear-
ward.
2. Pinch the V-belt together near its center and slide
the spacer and movable drive face onto the drive-
shaft. Secure the drive face with a nut. Tighten
the nut to specifications (see Section 10).
PR108
NOTE: At this point, remove the cap screw from
the driven pulley fixed face.
3. Rotate the V-belt and driven pulley/clutch until
the V-belt is flush with the top of the driven pul-
ley.
4. Place the V-belt cover gasket into position; then
install the cover and secure with the cap screws
making sure the different-lengthed cap screws
are in their proper location. Tighten the cap
screws to specifications (see Section 10).
5. Secure the seat-base with the four cap screws.
Tighten securely.
6. Install the seats and center console making sure
the seats lock securely.
! CAUTION
Make sure the drive belt does not prevent the mov-
able face from contacting the spacer when tighten-
ing the nut or false torque readings could occur. The
assembly could loosen after starting the engine
causing damage to the shaft and pulley.
