3-37
3
CC687

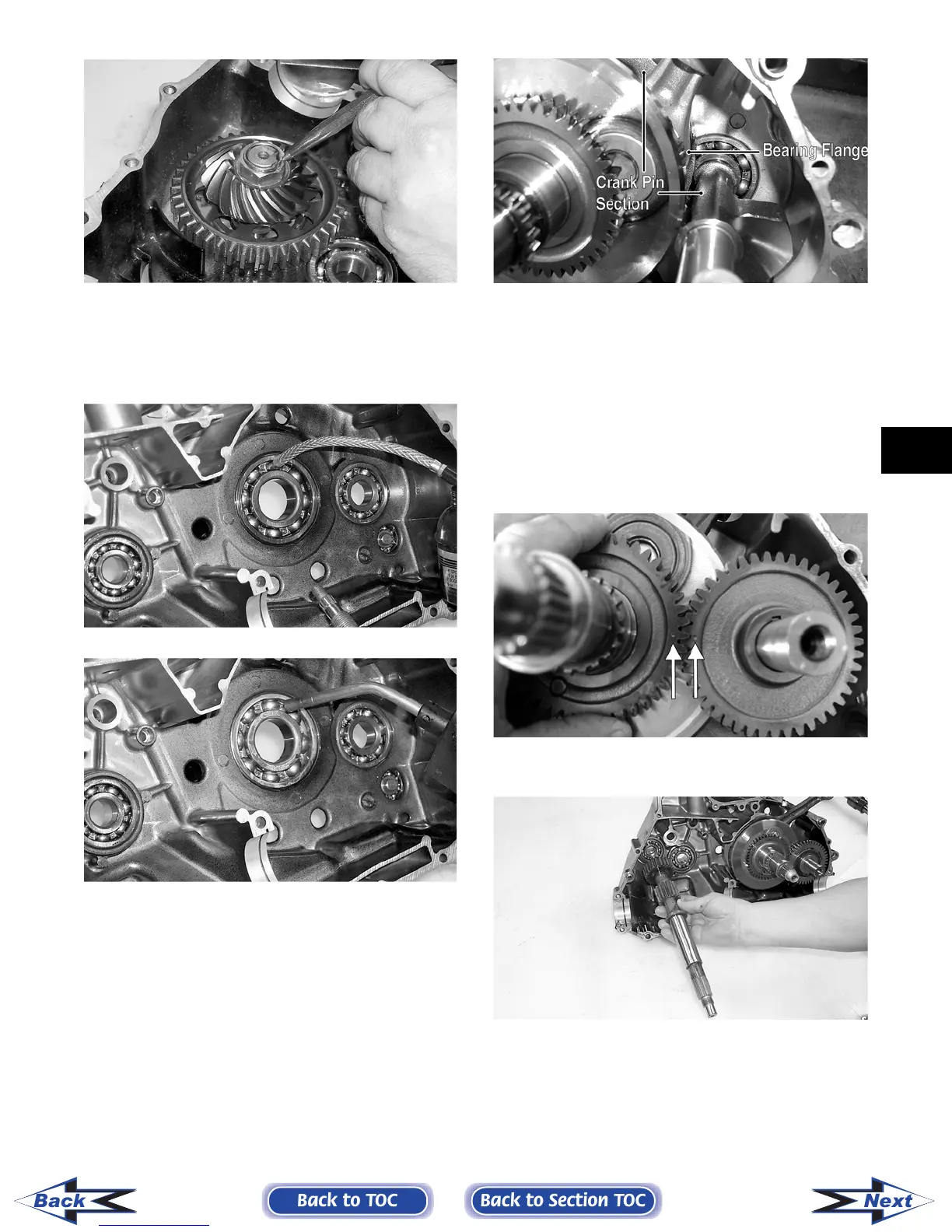

3. Apply a liberal amount of engine oil to the
crankshaft bearing. Using a propane torch, heat
the bearing until the oil begins to smoke; then
slide the crankshaft assembly into place.
CC688
CC689
NOTE: If heating the bearing is not possible, the
crankshaft can be installed using a crankshaft
installing tool.
4. Install the crank balancer.
CD832B
NOTE: It will be necessary to rotate the crank
balancer until the counterweight is facing away
from the crankshaft; then rotate the crankshaft
clockwise into the journal area to allow the crank
balancer to be fully seated.
5. Place the key into the crank balancer keyway;
then install the crank balancer gear making sure
the alignment dots on the crank balancer gear
and the crankshaft gear align.
CD826A
6. Install the driveshaft.
CC675
7. Place a washer on each end of the countershaft
assembly; then install the assembly.
