3-40

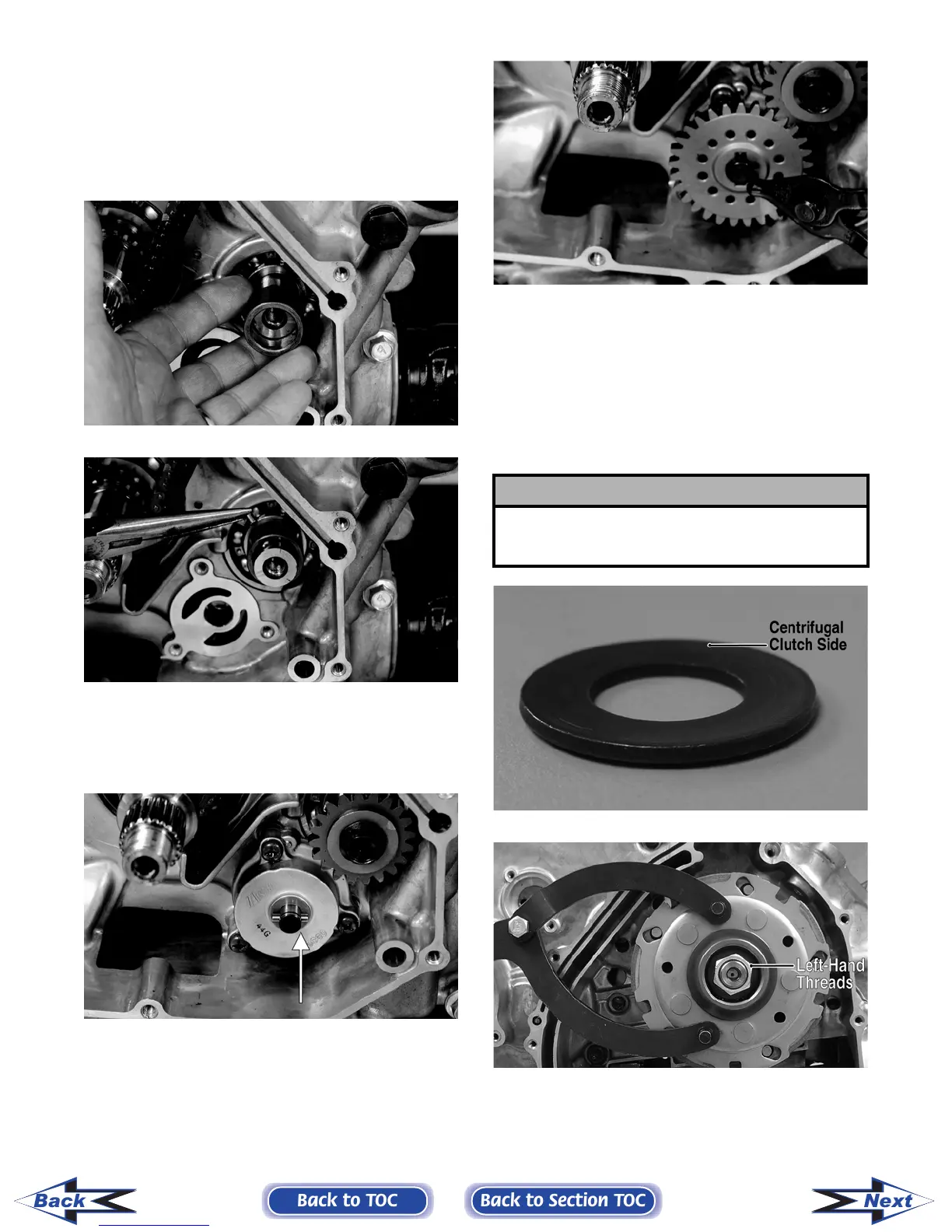

4. Install the oil pump drive gear spacer onto the
crank balancer shaft. Grease the pin and insert it
into the shaft; then install the drive gear making
sure the raised side of the gear is facing toward
the inside. Secure the gear with the cap screw
(threads coated with red Loctite #271) and the
washer. Tighten the cap screw to specifications.
CD992
CD991
5. Grease the driven gear pin and insert it into the
oil pump shaft; then install the driven gear (not-
ing the direction of the sides of the gear from
removing). Secure with a snap ring.
CD985A
CD984
NOTE: When installed correctly, the sides of the
drive and driven gears will be flush with each other.
6. Install the clutch shoe assembly and secure with
the washer (with the flat side facing the assem-
bly as noted in removing) and the nut (threads
coated with red Loctite #271). Tighten to speci-
fications.
FI336A
FI279A
7. Lightly grease the clutch housing seal; then
insert the left fixed drive spacer.
! CAUTION
Care must be taken that the directional washer be
installed correctly and note that the nut has
left-hand threads.
