3-44
CD948A
CD940B

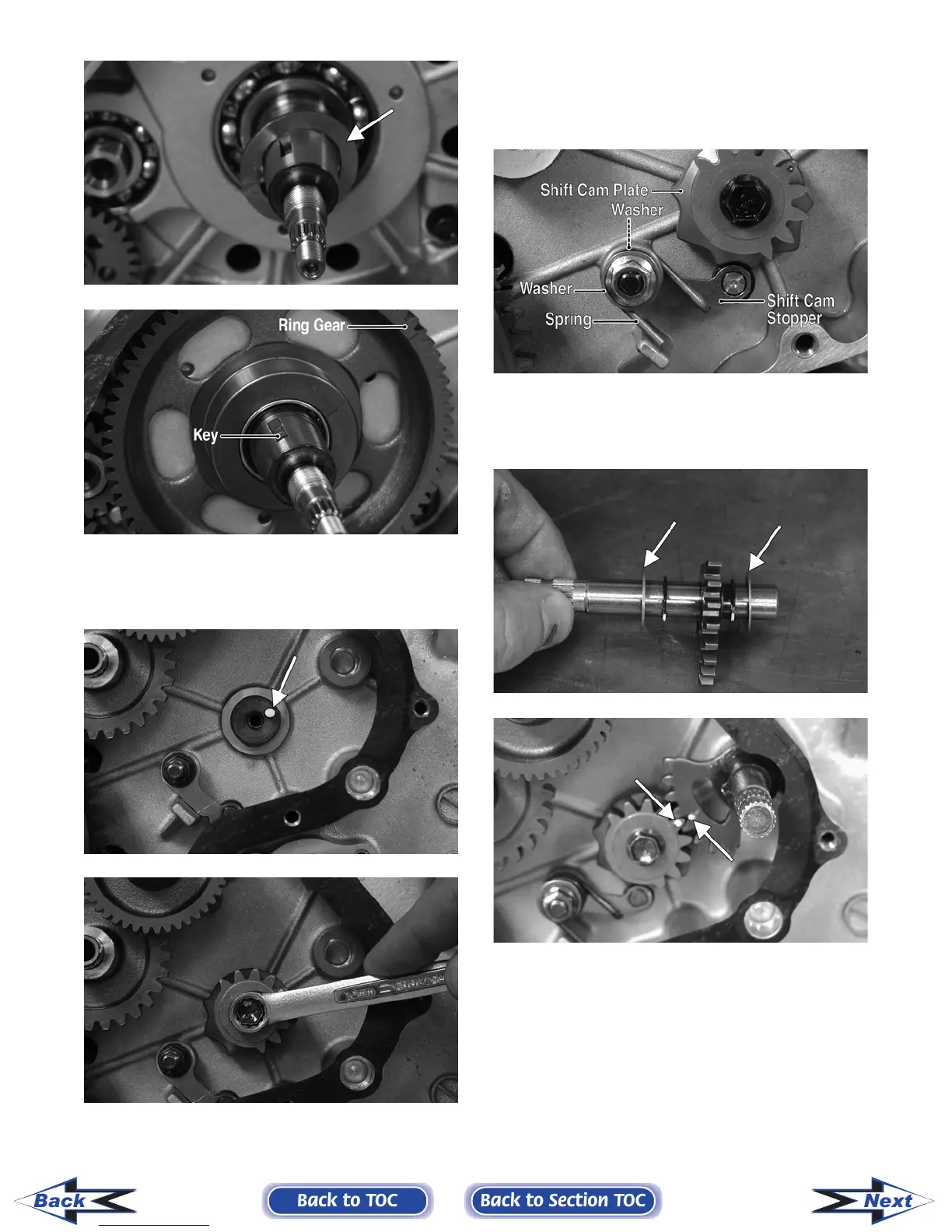

5. Install the shift cam plate onto the shift cam
shaft; then coat the cap screw threads with red
Loctite #271 and tighten securely.
CD935A
CD934
6. Install the shift cam stopper, spring, and two
washers; then coat the threads on the mounting
stud with red Loctite #271 and install the nut.
Tighten securely.
PR434A
7. Install the shift shaft with two washers making
sure to align the timing mark on the shift shaft
with the mark on the shift cam plate.
CD954A
CD927A
8. Lubricate the magneto cover gasket with fresh
engine oil; then place it into position on the two
alignment pins. Make sure the outer shift shaft
washer is in place.
