According to the FigAnnexe 2, you have a fully monitored line responding to the security norms.
8.33 Wire Things
In this chapter you will find schematics about how to wire DIVA with external devices. Here is the list of
devices that will be discussed:
• Power Supply
• Fireman Microphone
• PSS Microphone
• Music Sources
• Mic/Line
• Amplifier
• Speaker lines
• Normal Logic Inputs
• Evacuation Inputs
• Outputs
• 100V Output
• Computer
• RS232
• DIVA8S
• Basic Wiring
• Remote Panel

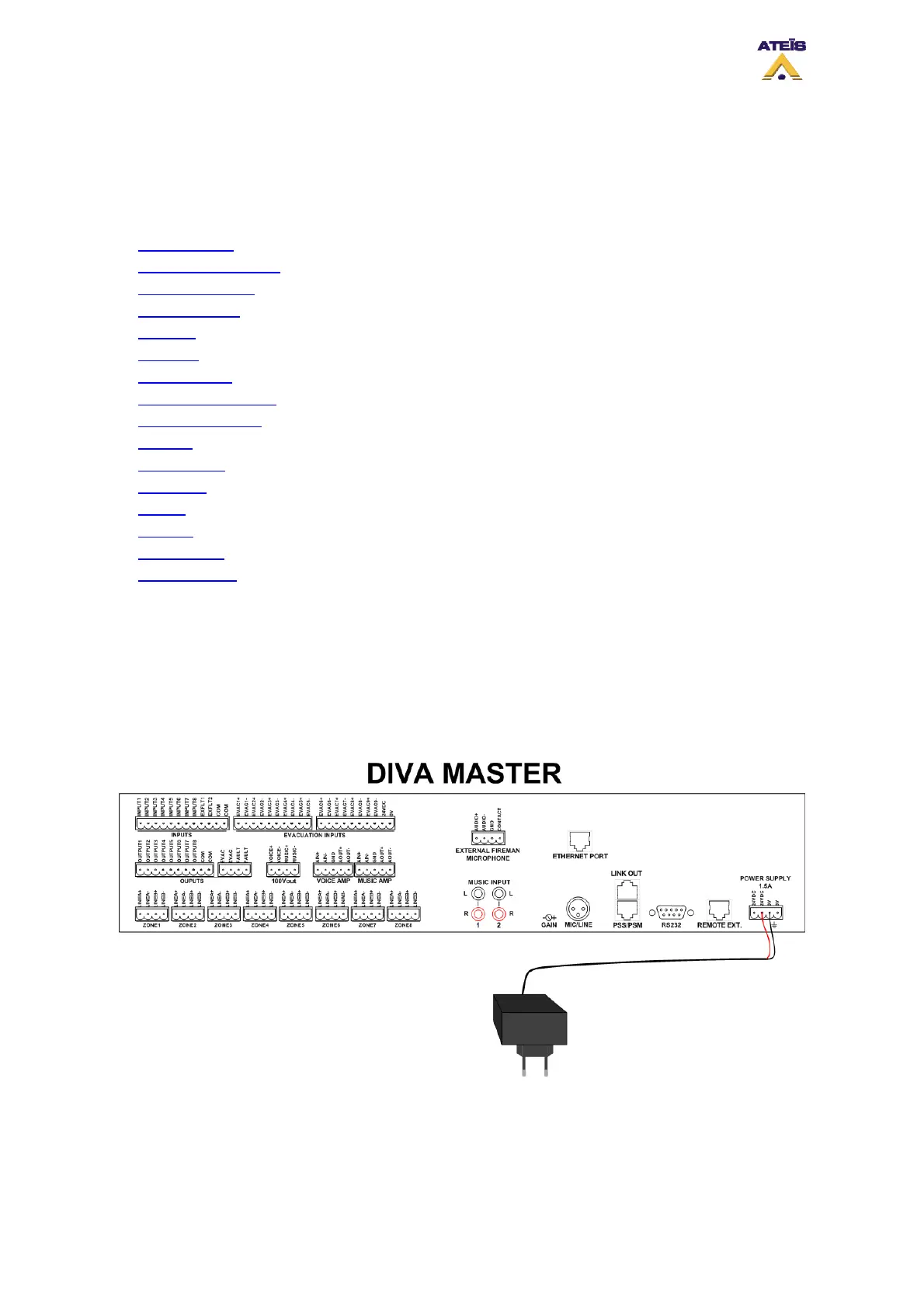

8.33.1 Power Supply
The DIVA operating voltage supply is 24VDC. Pleas use only the provided power block or something
equivalent.
To connect the provided 230V/24VDC power supply, use an euroblock connector in order to link the
power supply to the 24VDC and 0V DIVA inputs.
In case of using an other supply, watch out for polarity and voltage value.
