8.33.9 Evacuation inputs

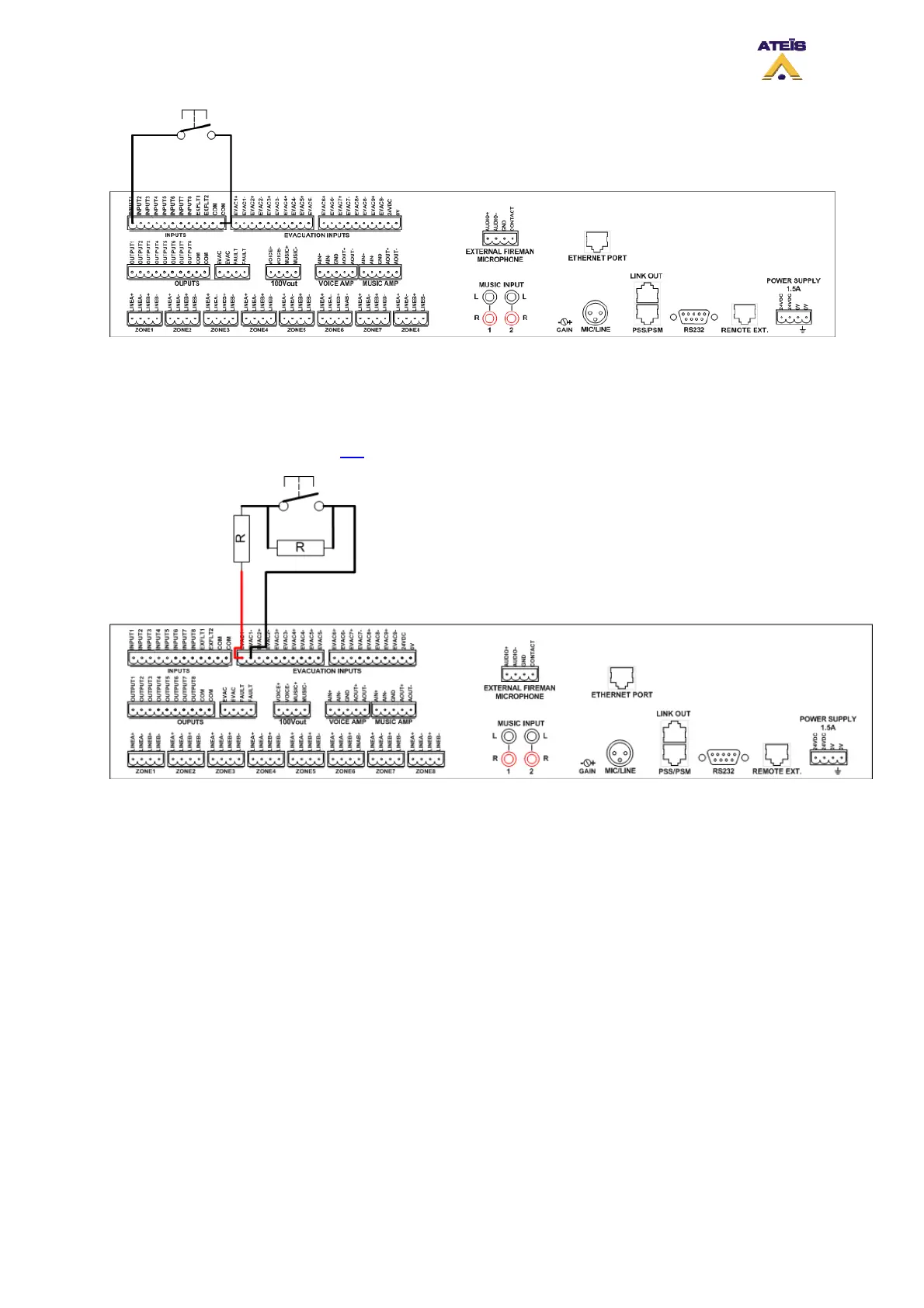

The main aim of evacuation input is to offer the possibility of monitoring contact. To achieve a
monitored contact, please see the schematics below. To learn more about how to perform a
monitorable contact, please read this
.
8.33.10 Outputs
Logic output are simple contact that when closing link the OUTPUTx connector to the COM connector.
The following schematic show a way to create a indicator LED.
