8.33.6 Amplifier
The connection to amplifier can slightly change according to the amplifier model used.
The 0dB output of DIVA are named as follow:
• AIN+: for positiv 0dB output
• AIN-: for negativ 0dB output
• GND: for 0dB ground output
The 100V input are named as follow:
• AOUT+: for positiv 100V input
• AOUT-: for negativ 100V input

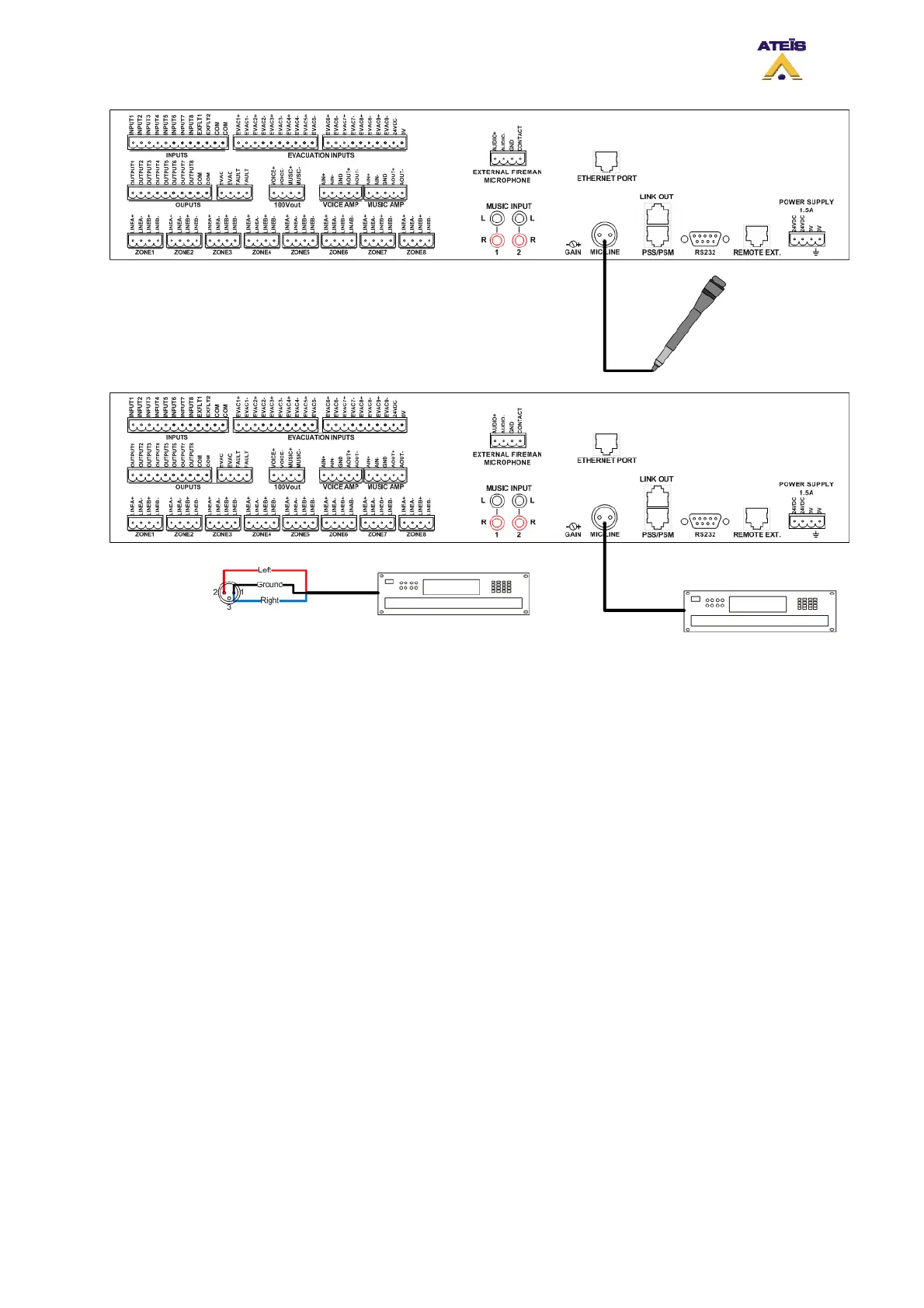

According to the schematic below, the DIVA 0dB output are linked to the amplifier 0dB input and the
DIVA 100V input are linked to the amplifier 100V output.
Depending on the configuration needed, you can use the amplifier fault output to force DIVA to enter
security mode in case of amplifier failure. To achieve this aim, simply connect the DIVA EXFLT
connector to the amplifer FAULT connector.
To learn more about amplifier connection, please refer to the amplifier manual.
