8.33.2 Fireman Microphone

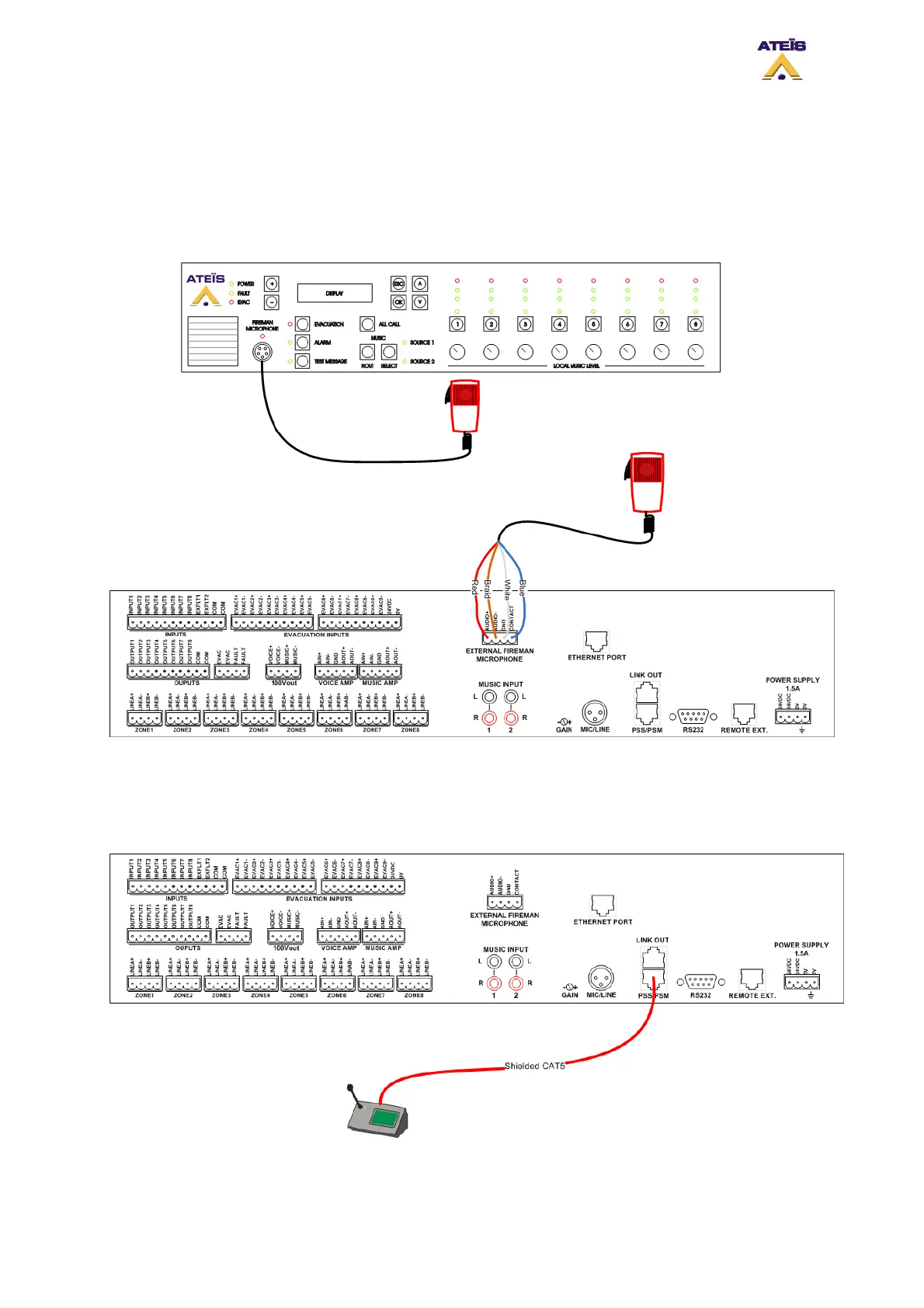

To connect the SHM1 fireman microphone, simply connect the SHM1 connector with the front panel
fireman microphone connector. In case of using an other microphone, use the back connector to
connect the microphone, see the lower picture.
Note: the front panel connector and the back connector are parrallel connected. Please only use one
of them.
8.33.3 PSS Microphone
In order to connect the PSS microphone to DIVA, simply use a shielded CAT5 cable to link the
PSS/PSM DIVA RJ45 connector to the RJ45 of the PSS. Maximum cable length 200m, if more
distance is needed please use a local 24V power supply .
