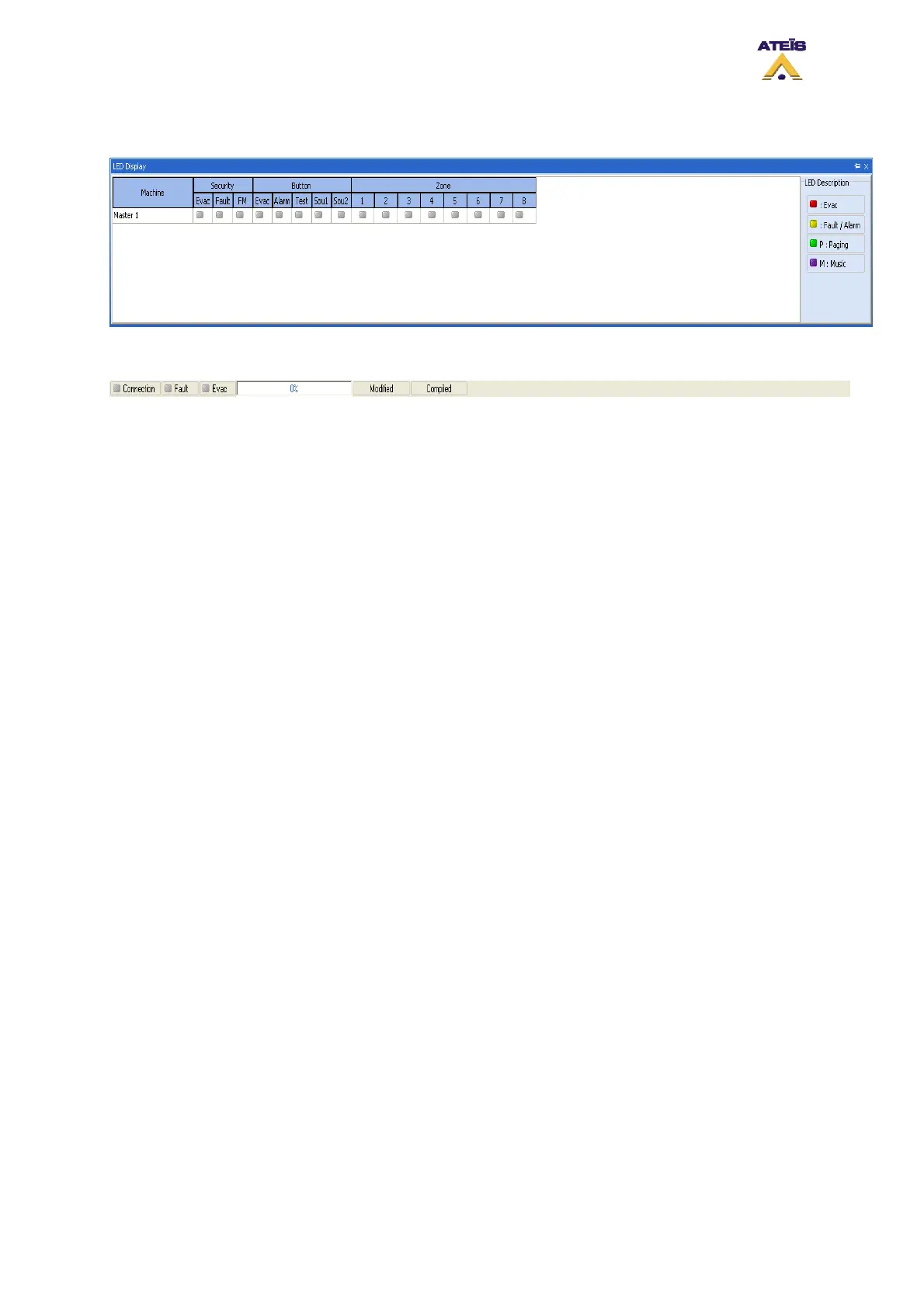

• LED Display: offers real time status LED display, only if connected to DIVA units. It is a replic of
the front panel LED display
7.8 Status Bar
The status bar shows quick look status information about:
• Connection: Lights up when connected to DIVA
• Fault: Lights up when a faults status is detect onto DIVA
• Evac: Lights up when a Evac state is detected
Additional Status Information
• Timeline: Shows the progress of commands like opening component control
windows
• Modified: Indicates if the current file has been modified since last save
• Compiled: Indicates if the current file has been compiled
