8.33.16 Basic Wiring

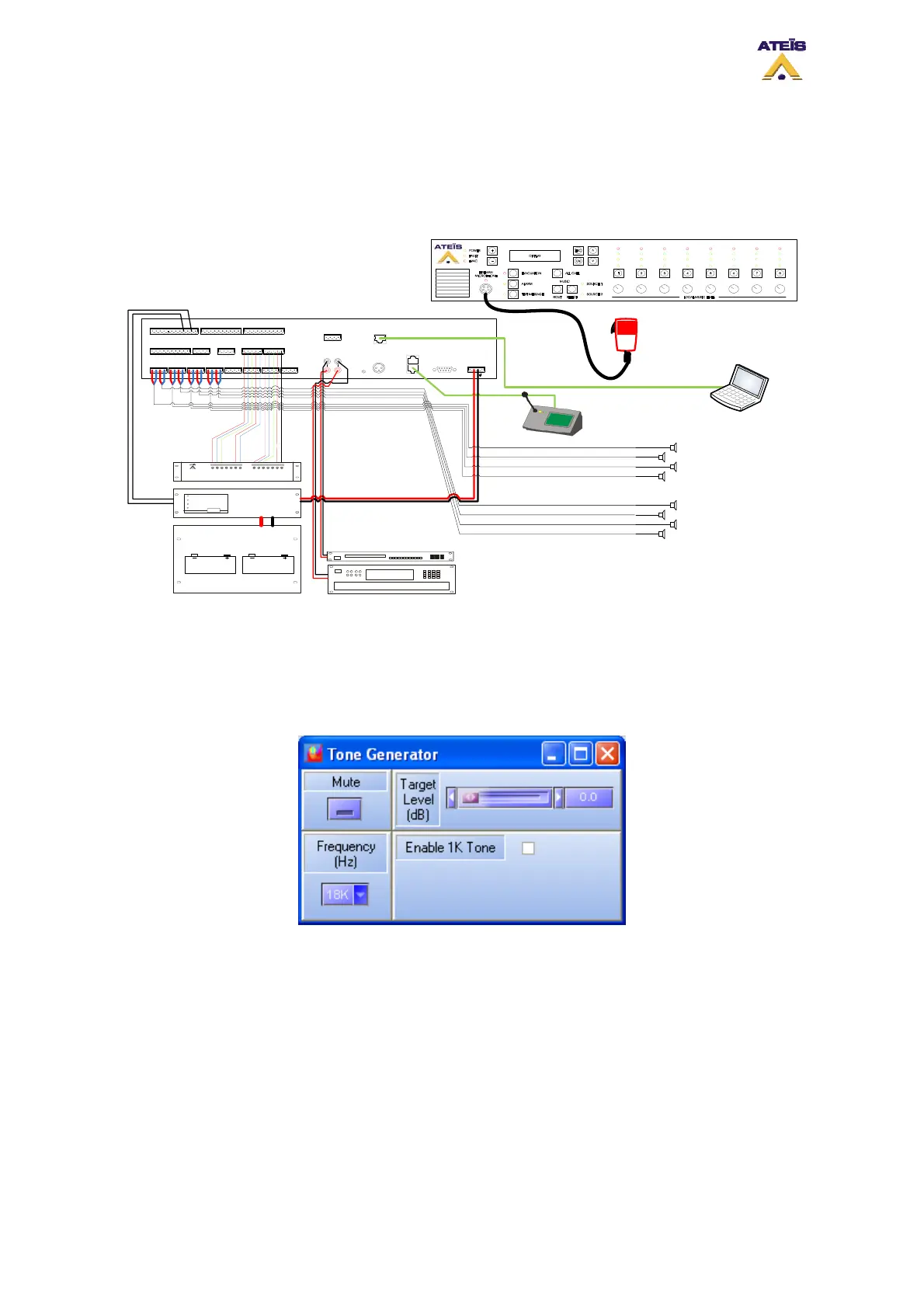

This schematics intends to show how to create a simple wiring for one DIVA master unit.
SPA2240 2x240W
AMP
CD
TUNER
Zone 1
Zone 2
Zone 3
Zone 4
LineA
Batt Batt
Prése nce S ORT IE
2
Prése nce S ORT IE
1
Défaut SECTEUR
Défaut BATTERIE
SONaes
SONAES
Zone 1
Zone 2
Zone 3
Zone 4
LineB
EVAC1+
EVAC1-
EVAC2+
EVAC2-
EVAC3+
EVAC3-
EVAC4+
EVAC4-
EVAC5+
EVAC5-
INPUT1
INPUT2
INPUT3
INPUT4
INPUT5
INPUT6
INPUT7
INPUT8
EXFLT1
EXFLT2
COM
COM
EVAC6+
EVAC6-
EVAC7+
EVAC7-
EVAC8+
EVAC8-
EVAC9+
EVAC9-
24VDC
0V
OUTPU T1
OUTPU T2
OUTPU T3
OUTPU T4
OUTPU T5
OUTPU T6
OUTPU T7
OUTPU T8
COM
COM
EVAC
EVAC
FAULT
FAULT
VOICE+
VOICE-
MUSIC+
MUSIC-
LINEA+
LINEA-
LINEB+
LINEB-
LINEA+
LINEA-
LINEB+
LINEB-
LINEA+
LINEA-
LINEB+
LINEB-
LINEA+
LINEA-
LINEB+
LINEB-
LINEA+
LINEA-
LINEB+
LINAB-
LINEA+
LINEA-
LINEB+
LINEB-
LINEA+
LINEA-
LINEB+
LINEB-
AIN+
AIN-
GND
AOUT+
AOUT-
AIN+
AIN-
GND
AOUT+
AOUT-
INPU TS
EVACUATION INPUTS
OUPUTS 100Vout VOICE AMP MUSIC AMP
ZONE1 ZO NE2 ZONE3 ZONE4 ZONE5 ZONE6 ZONE7 ZON E8
AUDIO+
AUDIO-
GND
CONTACT
EXTERNAL FIREMAN
MICROPHONE
R
1
L
MUSIC INPUT
R
2
L
24VDC
24VDC
0V
0V
EXTERNAL FIREMAN
MICROPHONE
ETHERNET PORT
MIC/LINE
PSS/PSM
LINK OUT
GAIN
-
+
RS232
DIVA MASTER
LINEA+
LINEA-
LINEB+
LINEB-
PSS
FIREMAN
MICROPHONE
Control
Computer
8.34 Use Tone Generator
In the DIVA software you can control the tone generator parameters. To access the tone generator
parameters window, click on "Monitoring" under the DIVA icon in the system window. Then click on the
Tone Generator button.
• Mute: here you can mute the generation of the pilot tone
• Frequency (Hz): allows to choose between 18kHz and 20kHz pilot tone by using the drop-down
menu
• Target Level (dB): allows to increase the tone level up to 10dB
• Enable 1K Tone: ticking this option allows to add a 1kHz signal to the current pilot tone
