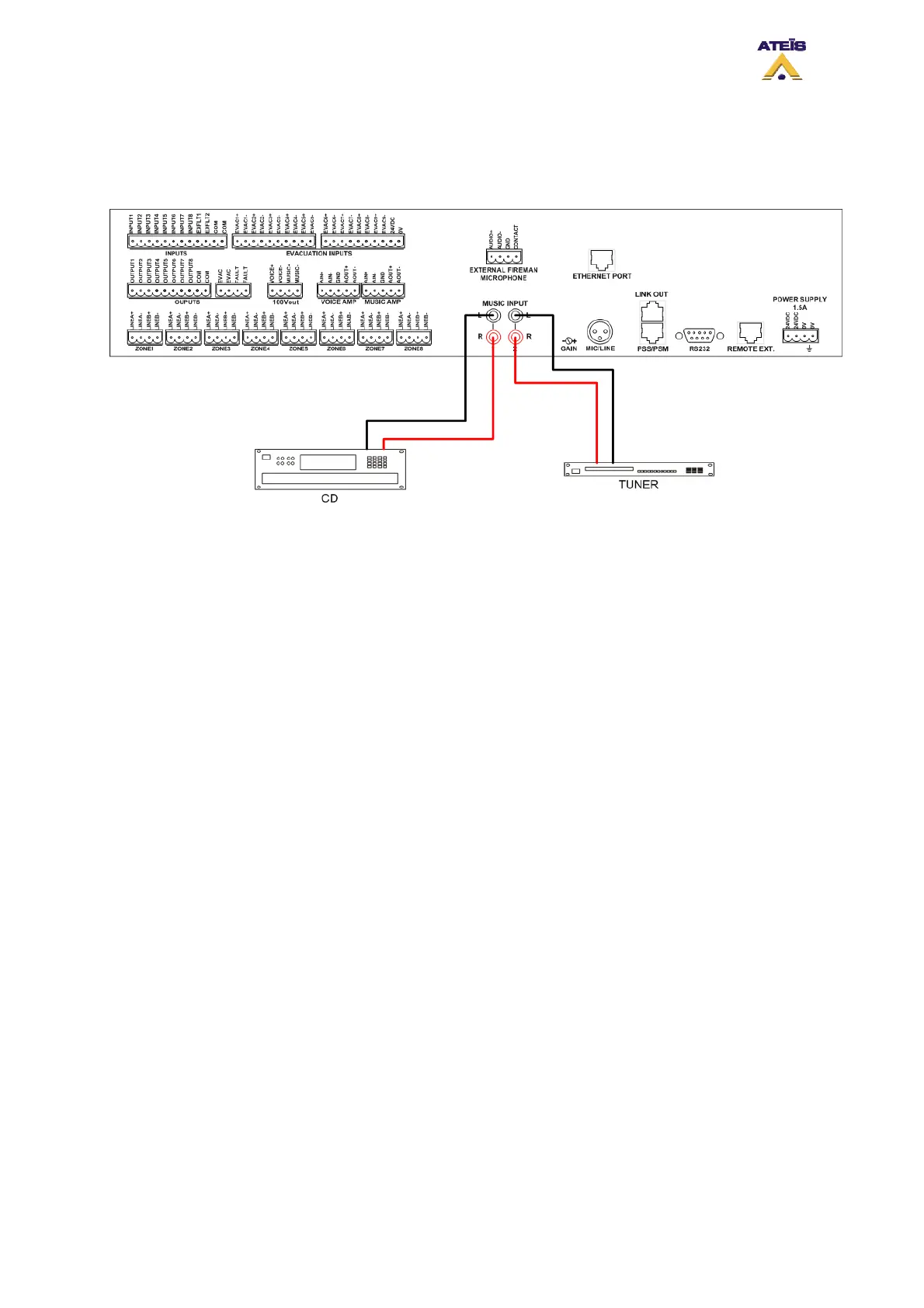

8.33.4 Music Sources
Connecting music sources to DIVA is easy thanks to the CINCH connections. You have a left and right
connection for both music sources. Keep in mind, that DIVA is not a stereo player, all music sources
are processed in mono.
8.33.5 Mic/Line
The MIC/Line input can be used as a microphone input or as a third music input. According to the
schematics below, use an standard XLR cable to link the microphone to DIVA or connect the
Left/Right channel of a music source to XLR connector of DIVA.
Note: gain must be adjusted in case of using microphone or a music source.
Ateïs International
Ch. du Dévent, 1024 Ecublens, Switzerland.
Phone : +41 21 881 25 10
133
