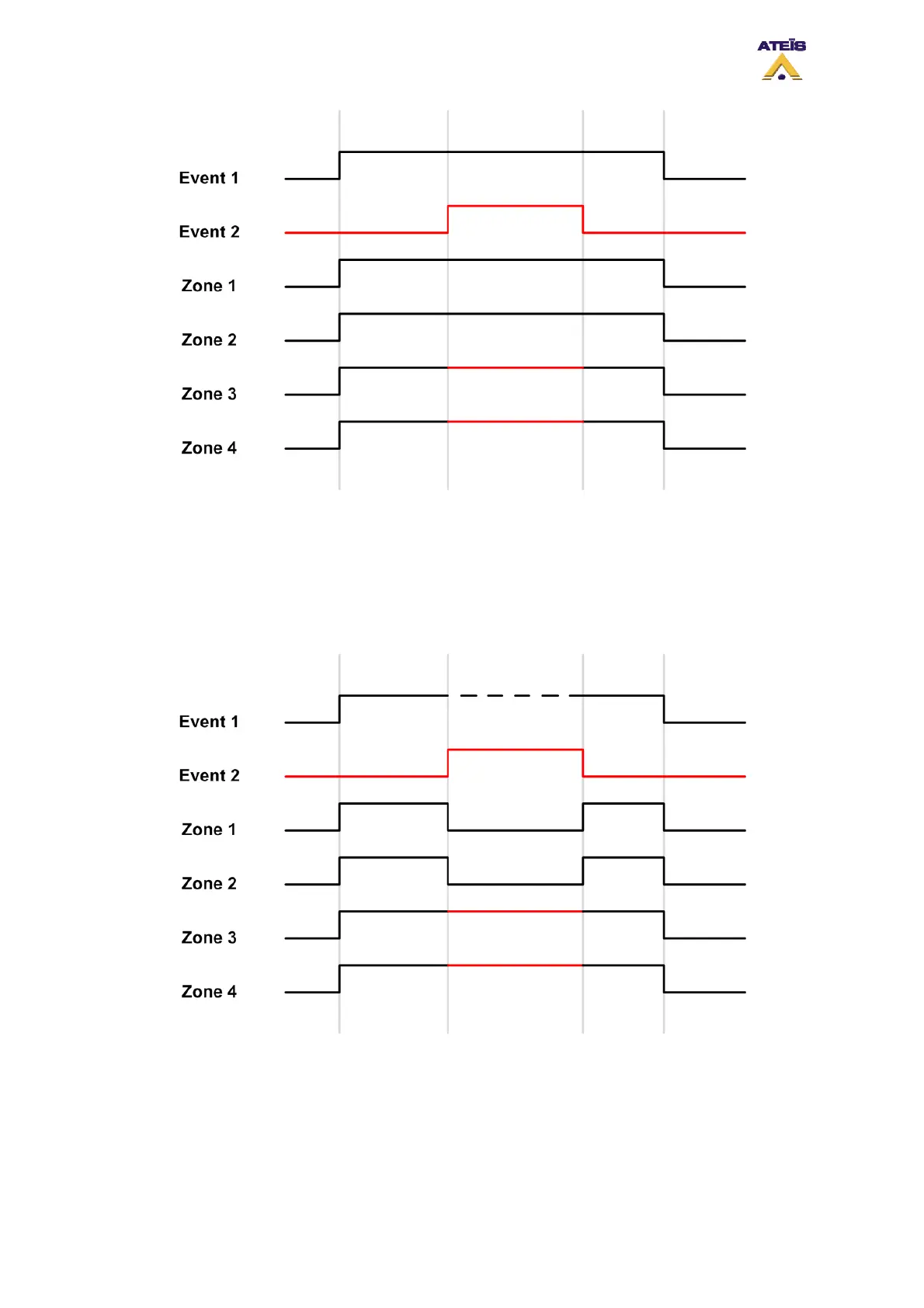

Figure 1 : Chronogram for Coexist mode with 2 common zone
Cancel All mode: when the highest priority event overwrites at least one zone of the lowest priority
event, the lowest priority event will be totally deactivated while the highest priority event is active.
The chronogram on figure 3 describes the process for cancel All mode situation:
Event 1 lowest priority, zone 1, 2, 3 and 4, conflict mode: Cancel All. Event 2 highest priority, zone 3
and 4, conflict mode: whatever.
Figure 2 : Chronogram for Cancel All mode for 2 common zone
Special case:
• 3 events:
- Figure 3: In coexist mode.
Event 1: priority 20, zone 1 and 2, coexist mode, triggered by logic in.
Ateïs International
Ch. du Dévent, 1024 Ecublens, Switzerland.
Phone : +41 21 881 25 10
143
