ATV 200 - (II)Removal Steps of Steering Vertical Column Welding

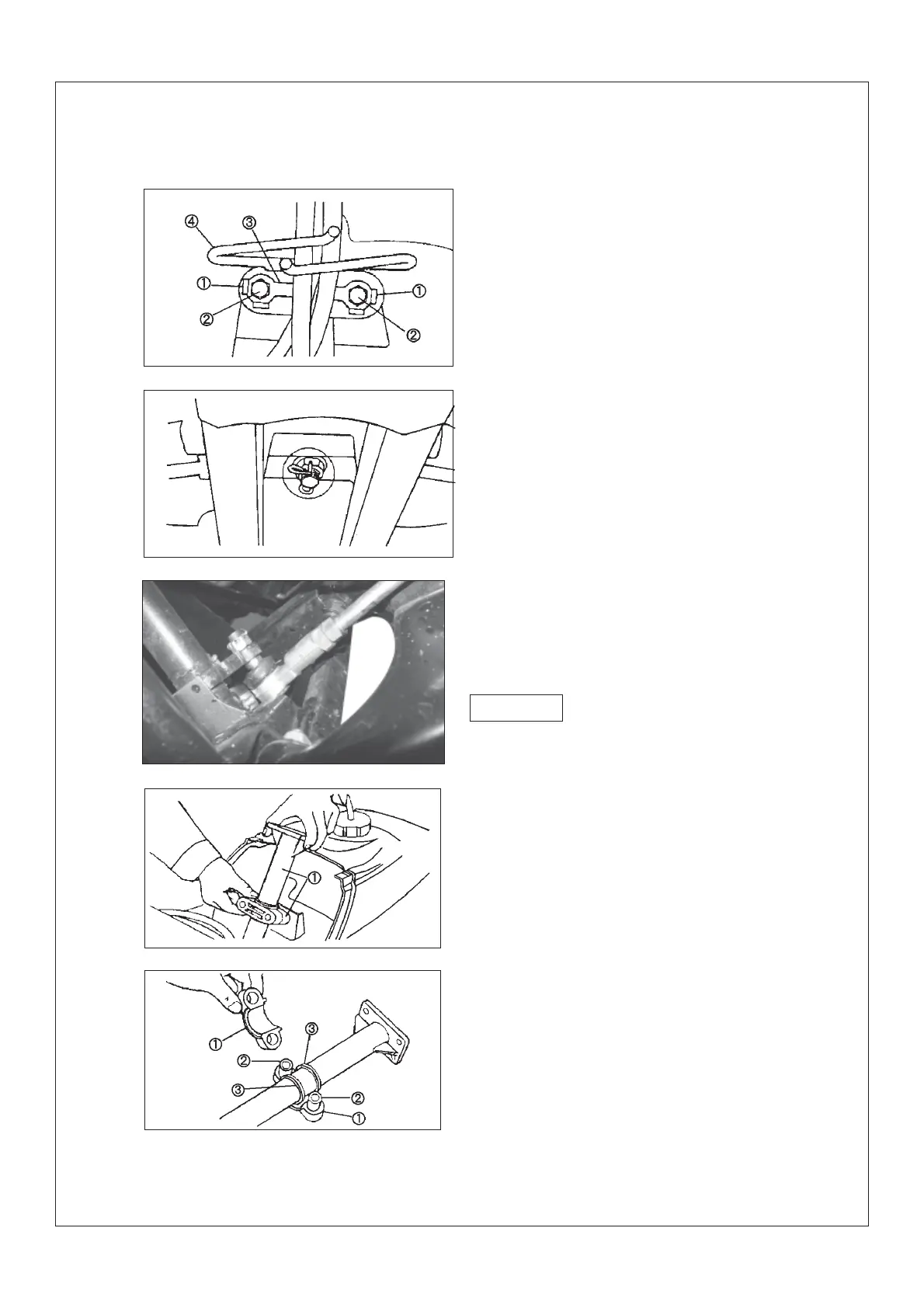

(II)Removal steps of steering vertical column
welding
1.Plain move
¢ÙThe locking part of locking pad as shown
2.Removal
¢ÚBolt M8¡Á60
¢ÛLocking washer
¢ÜClip assy
3.Removal
Install the steering vertical column with split
pin
2.25 ¡Á24
Nut M10
Washer 10
4.Removal
Split pin
Nut M12 ¡Á1.25
Tension rod
When removing the tension rod end and steer-
ing ball pin from the steering vertical column
welding assy and front seat assy of front brake
with common bearing tension tool and other
tools, pay attention to not damage the relevant
parts.
5.Removal
Remove the steering vertical column welding
assy together with steering vertical column
holder.
6.Removal
¢ÙSteering vertical column holder
¢ÚBushing
¢ÛOil seal
Caution
- 95 -
