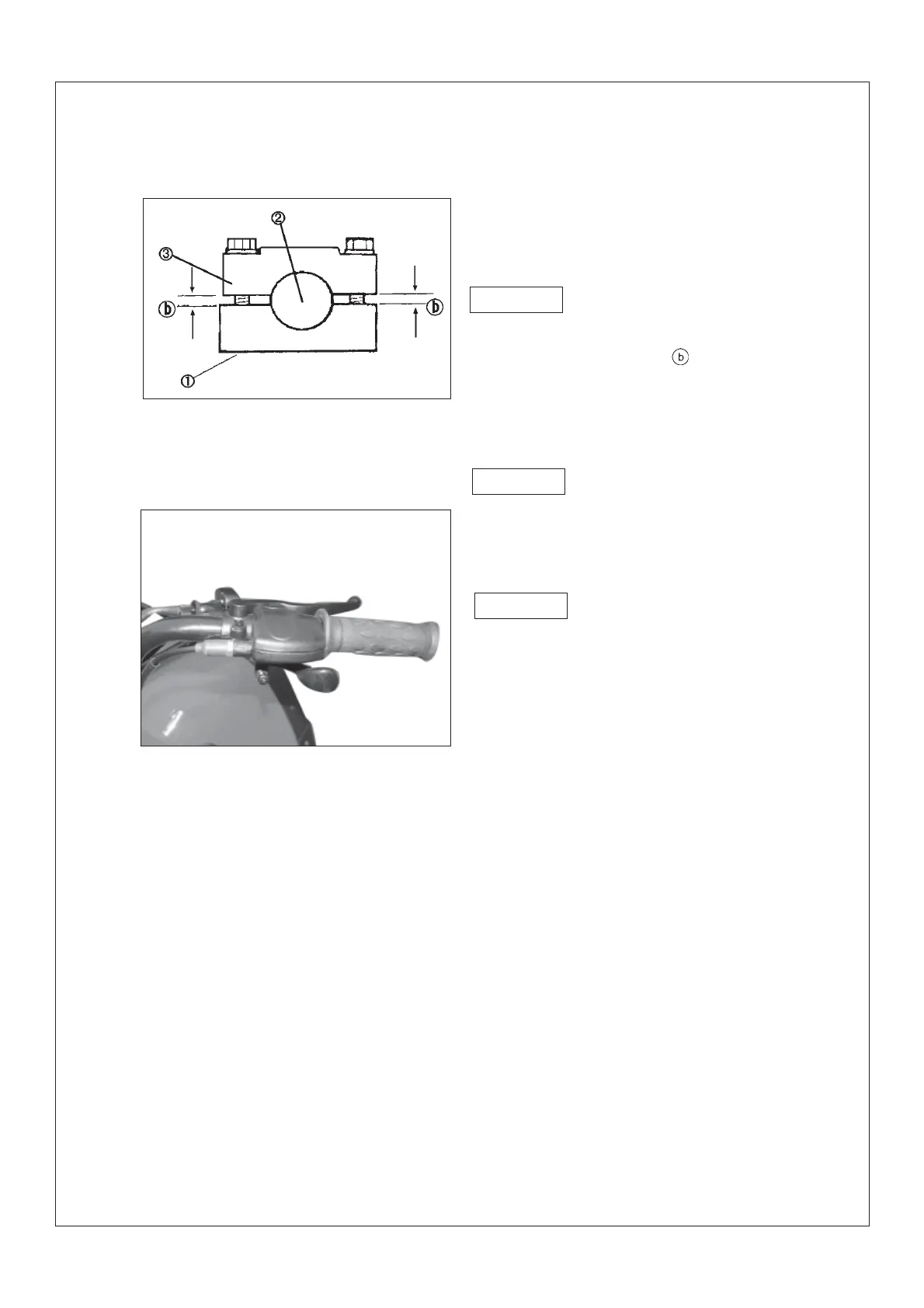

(V)Installation steps of steering bar
1.Install the lower holding seat¢Ù, steering tube
¢Ú and upper holding seat ¢Û.
When tightening the bolt of holding seat, make
ensure the even of clearance .
Attached:bolt torque:20Nm
2.Install the throttle grip unit
The projection of throttle grip must correspond
to the sunken part on the right lever seat when
installation.
Correct installation of cable and wire is very
necessary for ensuring the safety operation of
vehicle.
Refer to chapter 1“wiring diagram of vehicle”
3.Adjusting the free clearance of brake cable
Refer to “Adjustment of Front brake”and “Ad-
justment of free clearance about left handle
lever and rear brake pedal ”in chapter2.
4.Adjusting the toe-in of front wheel
Refer to “Adjustment of Front wheel Toe-in”in
chapter2.
5.Mounting front fender, bumper, front luggage
carrier.
Refer to the second section of chapter2.
