ATV 200 - Section 5 Front Shock Absorber and Front Wheel Fork; (I)Disassembly

Section 5 Front shock absorber and Front wheel fork
(I)Disassembly:
1.Take off front luggage carrier, bumper, front
fender.
Refer to the second section of chapter2
Disassemble the front wheel front brake hub.
brake shoe unit and front brake cap unit
Refer to “Dischargement of front wheel and
front brake”of this chapter

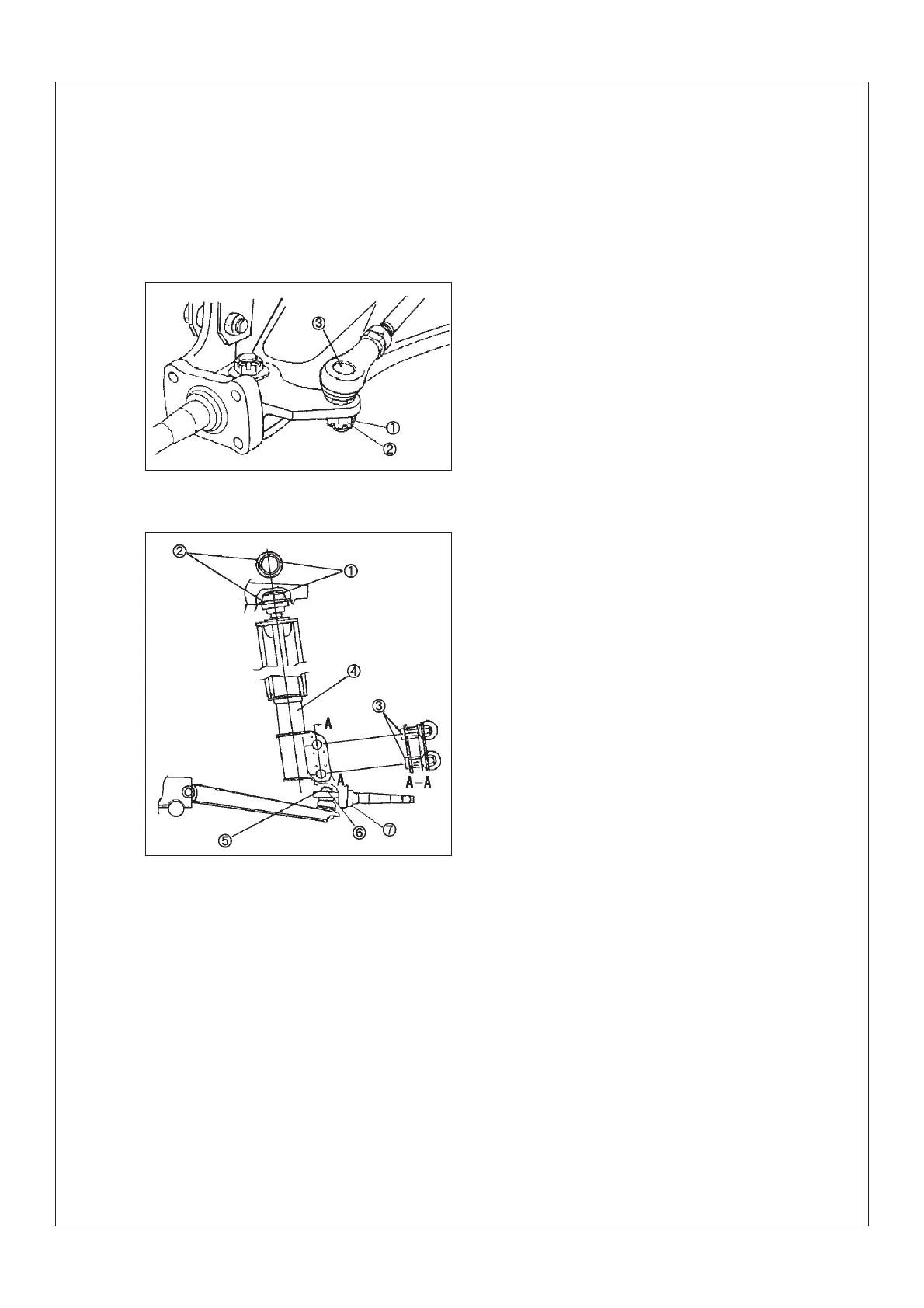

2.Take off split pin¢Ù, nut¢Ú and steering rod
ball pin assembly¢Û.
3.Take off clip on the front shock absorber.
4.Loosen the front shock absorber nut ¢Ú.
5.Take off the bolt ¢Ûunder the front shock
absorber nut of front shock absorber ¢Ú and
front shock absorber ¢Ü.
6.Take off split pin¢Ý, nut ¢Þon the left/right
front seat assy and left/right front seat assy
¢ß.
- 101 -
