ATV 200 - (II)If the Taillight Is out of Work

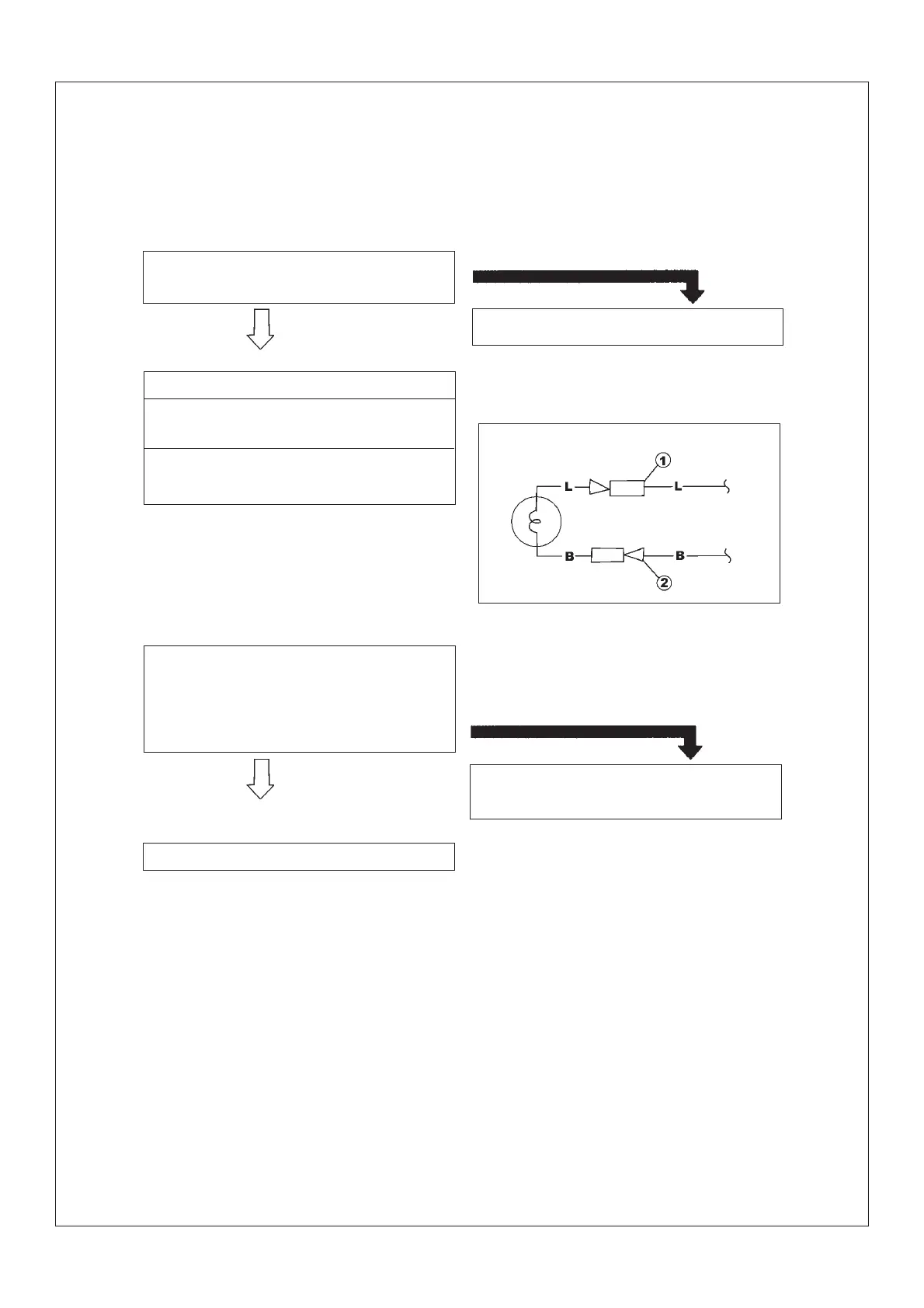

(II)If the taillight is out of work
1.Bulb and bulb socket
.Check if the bulb and bulb socket is correct
2.Voltage
.Connect the pocket multimeter (DC 20V)to
the terminal of taillamp.
Multimeter (+)¡úblue terminal
¢Ù
Multimeter (-)¡úblack terminal¢Ú
Meet specification
.Adjust main switch to ON position
.Adjust lamp switch to “LO”or “HI”position
.Check the voltage of blue wire in coupler of
bulb socket(12V)
No failure on this circuit
Meet specification
Out of specification
There is failure on the circuit from main switch
to bulb socket coupler. Repair it.
No electricfication
Replace bulb and bulb socket
- 135 -
