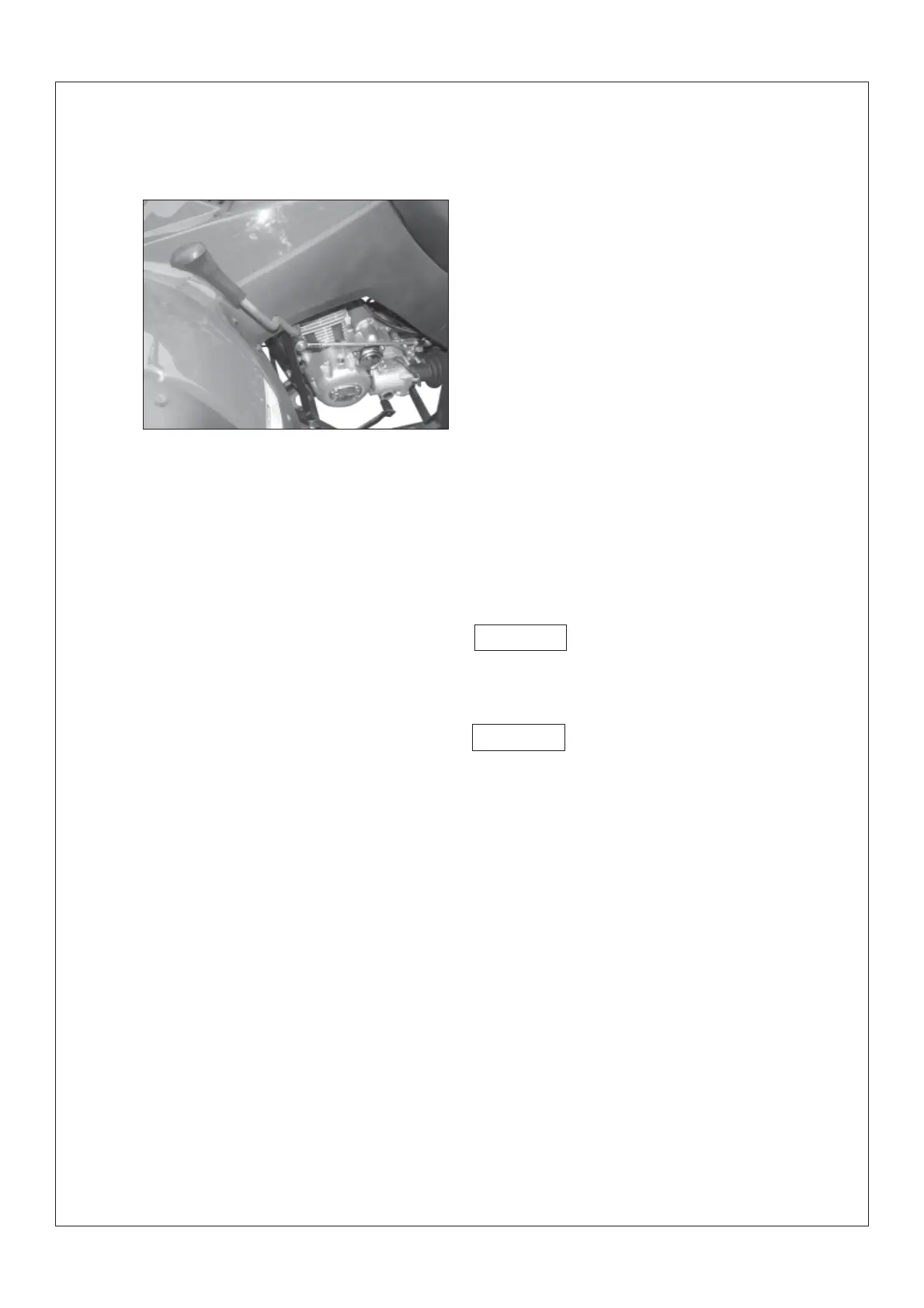

(IX)Inspection of ignition timing
Notice:
Before checking the correct timed ignition
adjust the engine idle speed and free clear-
ance of throttle grip to correct position.
1.Put the vehicle on the flat ground.
2.Start the engine for pre-heating ,and then
stop the engine.
3.Mount induction engine tachometer (90890-
03113)
4.Mount correct timed ignition meter on con-
nection line of spark plug cap(9890-00314)
5.Inspection of ignition timing.
Inspection steps:
a.Take off plug
b.Start the engine, and make the engine run at
1450r/min-1550r/min idle speed.
When the engine is running, the machine, oil
maybe splash out, so be careful to start the
engine.
Ignition timing can’t be adjusted.
6.Mount plug
7.Take off ignition timing meter induction en-
gine tachometer.
Caution
Warning
- 61 -
