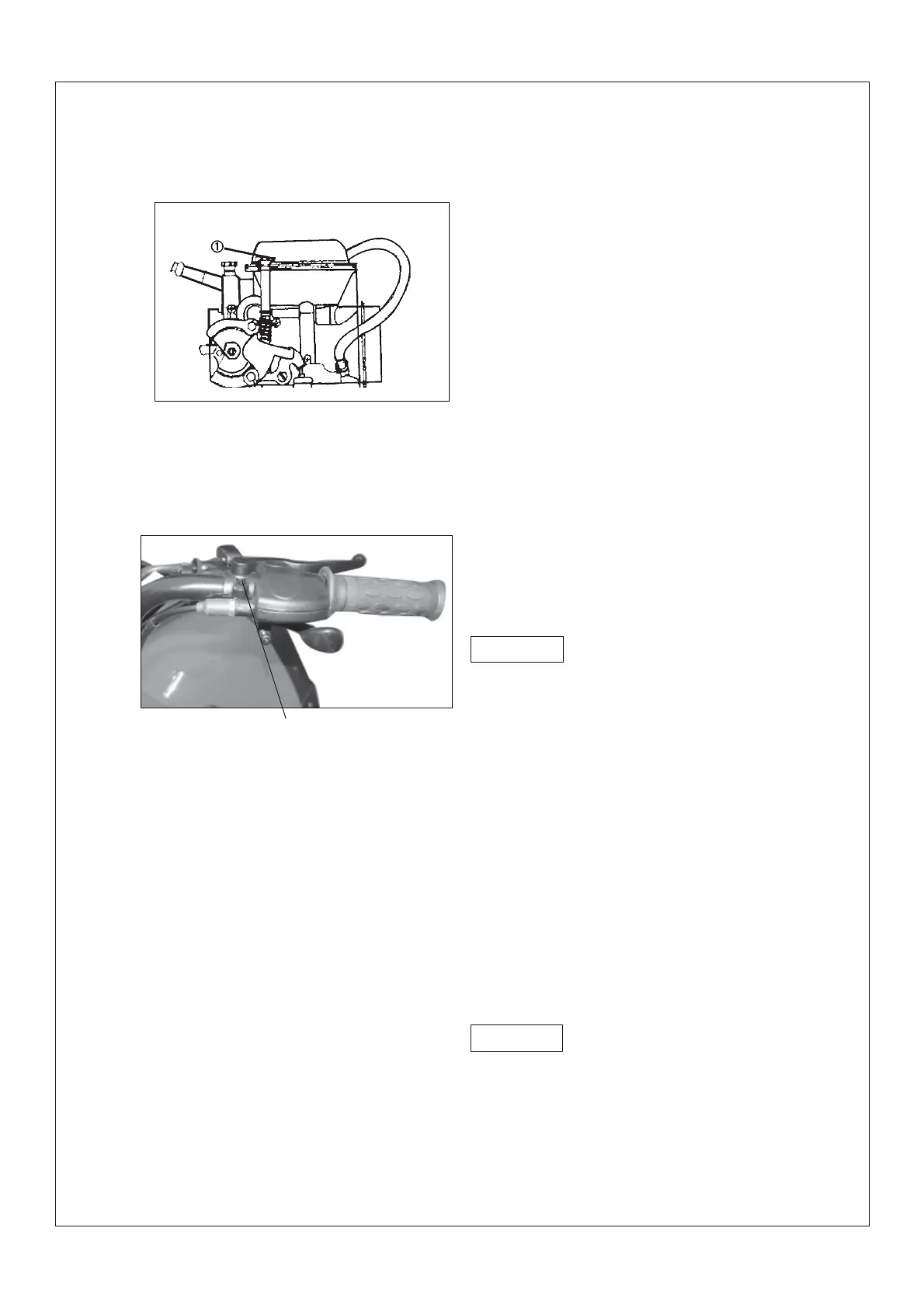

(IV)Adjustment of idle speed
1.Rest the vehicle on the flat ground
2.Start the engine and preheat it at the speed
of 1000-2000r/min, after several minutes, in-
crease the engine speed to 4000-5000r/min.
3.Set the specified idle speed through adjust-
ing the throttle adjusting screw ¢Ù, Screw in
to increase the engine speed and screw out to
decrease the speed.
Specified idle speed:1450-1650r/min
4.Measure the engine speed with measuring
meter.
5.Make sure that the free clearance of throttle
grip is within 3-5mm. otherwise readjust the
idle speed.
(V)Adjustment of free clearance of throttle
grip
First adjust the engine idle speed when adjust-
ing throttle grip.
1.Rest the vehicle on the flat ground.
2.Inspection
.Free clearance of throttle grip@, If out of
specification ¡úadjust free clearance of
throttle grip:3-5mm
3.Adjustment
Adjustment steps of free clearance of throttle
grip.
a.Loosen the locking nut ¢Ù .
b.Turn the adjusting bolt up to the free clear-
ance of throttle grip @is 3-5mm.
c.Tighten up the locking nut¢Ù.
After adjusting the free clearance, move the
lever forward and rearward to make sure that
the engine will not lift.
Caution
Caution
¢Ù
- 56 -
