ATV 200 - Section 2 Check Lamp(Headlight)

Section 2 Check Lamp (headlight)
Check the lamp condition
1.Remove the lamp
Pay attention to support the lamp seat. Don’t pull the lead wire, otherwise it wil be broke.
When the headlight light up, please remove the inflammable and your hand from the lamp.Because
it will be very hot,you can touch it only until it is cool.
Caution
Warning

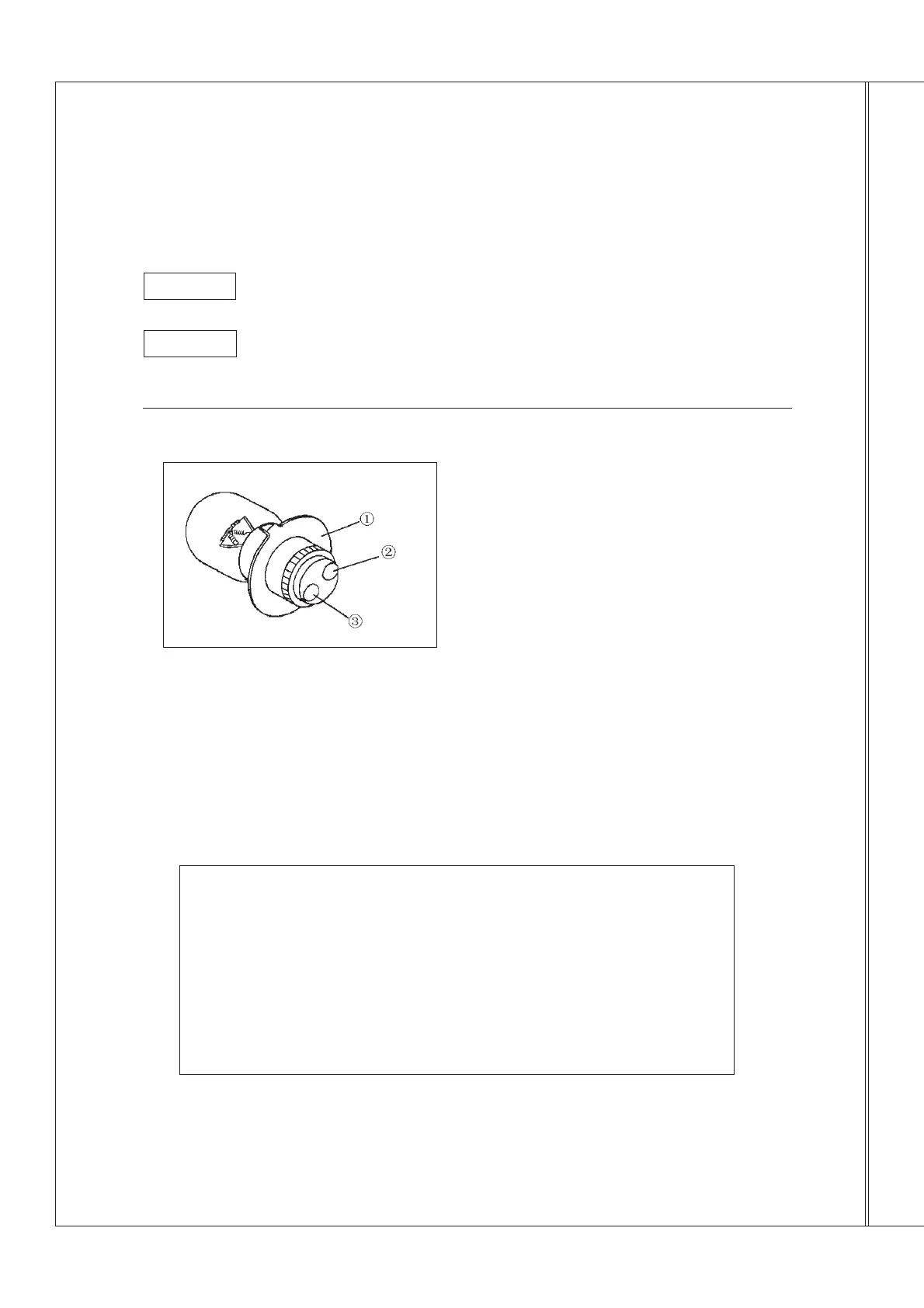

2.Check if the circuit of lamp terminal is on.
checking steps
**************************************
.Adjust the choice knob of pocket multimeter
to “ ¦¸¡Á 1”
.Connect the multimeter pen to correspond-
ing lamp wire end. Firstly connect the multi-
meter pen(+)to wire end ¢Ùand pen(-)wire end
¢Úto check the circuit between ¢Ùand ¢Ú.
Then connect the multimeter pen(+)to wire
end pen (-)to wire end ¢Û.to check the cir-
cuit between ¢Ù and ¢Û.If it display “ ¡Þ”one
time, replace the lamp.
3.Mount a checked lamp to check the lamp
seat.
The same as checking the lamp, connect the
multimeter pen to related lamp seat wire and
check the circuit by the same method as
above.
Color indication:
Br-Brown
R-Red
B-Black
B/W-Black/White
Bl/Blue
G-Green
Y-Yellow
Br/W-Brown/White
R/W-Red/White
O-Orange
Sb-Sky blue
G/Y Green/Yellow
W-White
G/Bl-Green/Blue
Y/R-Yellow/Red
Y/G-Yellow/Green
B/Y Black/Yellow
