(VII)Adjustment of valve clearance.
The valve clearance should be adjusted only
after the engine is cold, the valve clearance
should be adjusted when the piston is at the
end point position of compress stroke.
1.Removal:
1)Rest the vehicle on the flat ground
2)Remove
a.Cushion (Refer to section two “Cushion
Removal”of this chaper)
b.Fuel tank (Refer to section two “Fuel Tank
Removal”of this chaper)

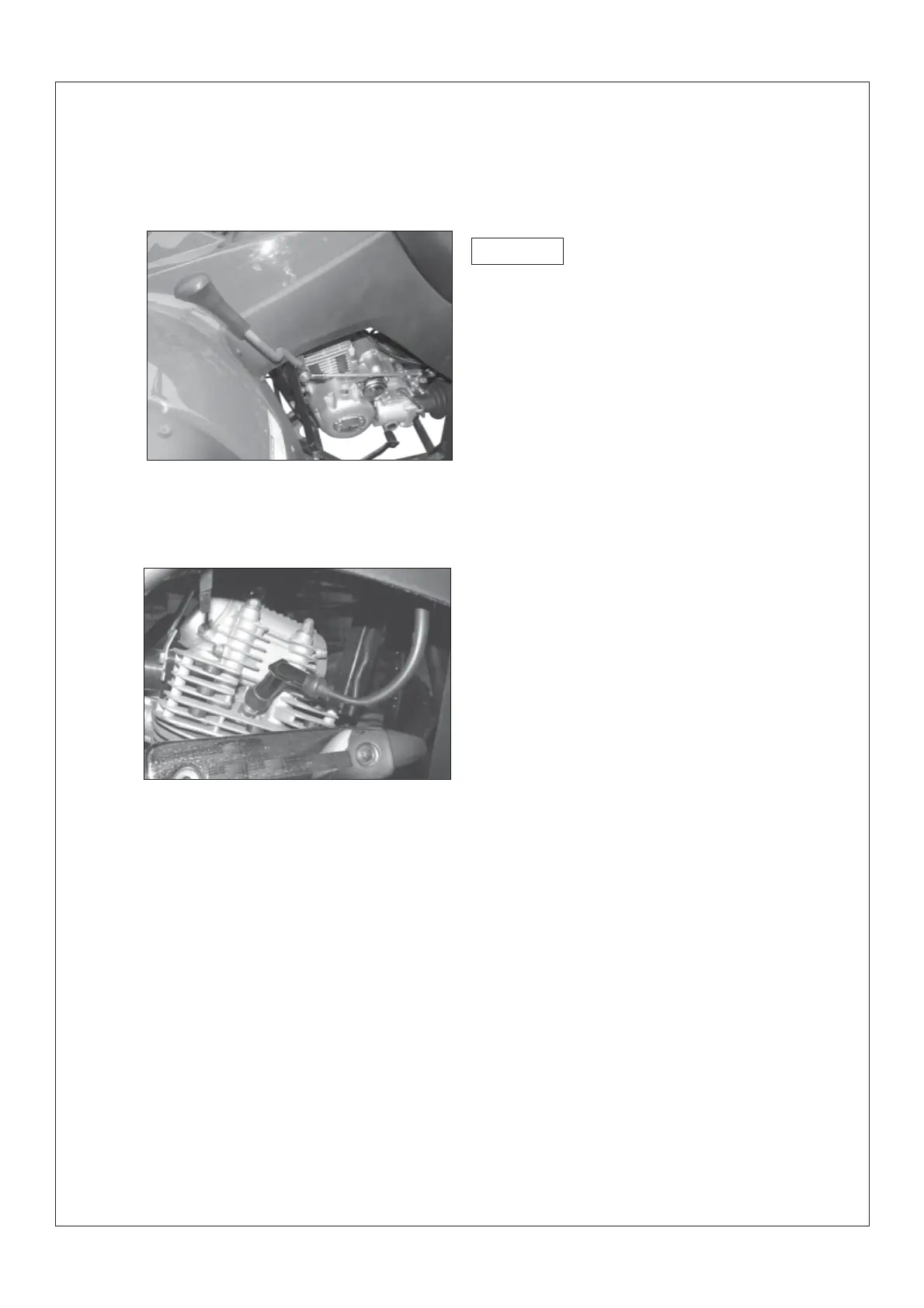

3)Remove:
a.Timing observation hole screw
b.Manual operation start mechanism
4)Remove:
a.valve cap (the side of exhaust valve)
b.valve cap (the side of intake valve)
2.Adjustment
1)Measure the valve clearance
The detailed measure steps are as follows:
a.Turn the crankshaft counterclockwise with
wrench.
Caution
