ATV 200 - (II)Inspection Steps

(II)Inspection steps:
1.Inspection
When inspecting the real wheel, refer to “tire
Inspection”,“Rim inspection”Section of chap-
ter Two.
2.Measurement:
a.radial runout of rim
b.tire surface
Refer to“Front wheel and Front Brake
Inspection”Section of this chapter
3.Inspection

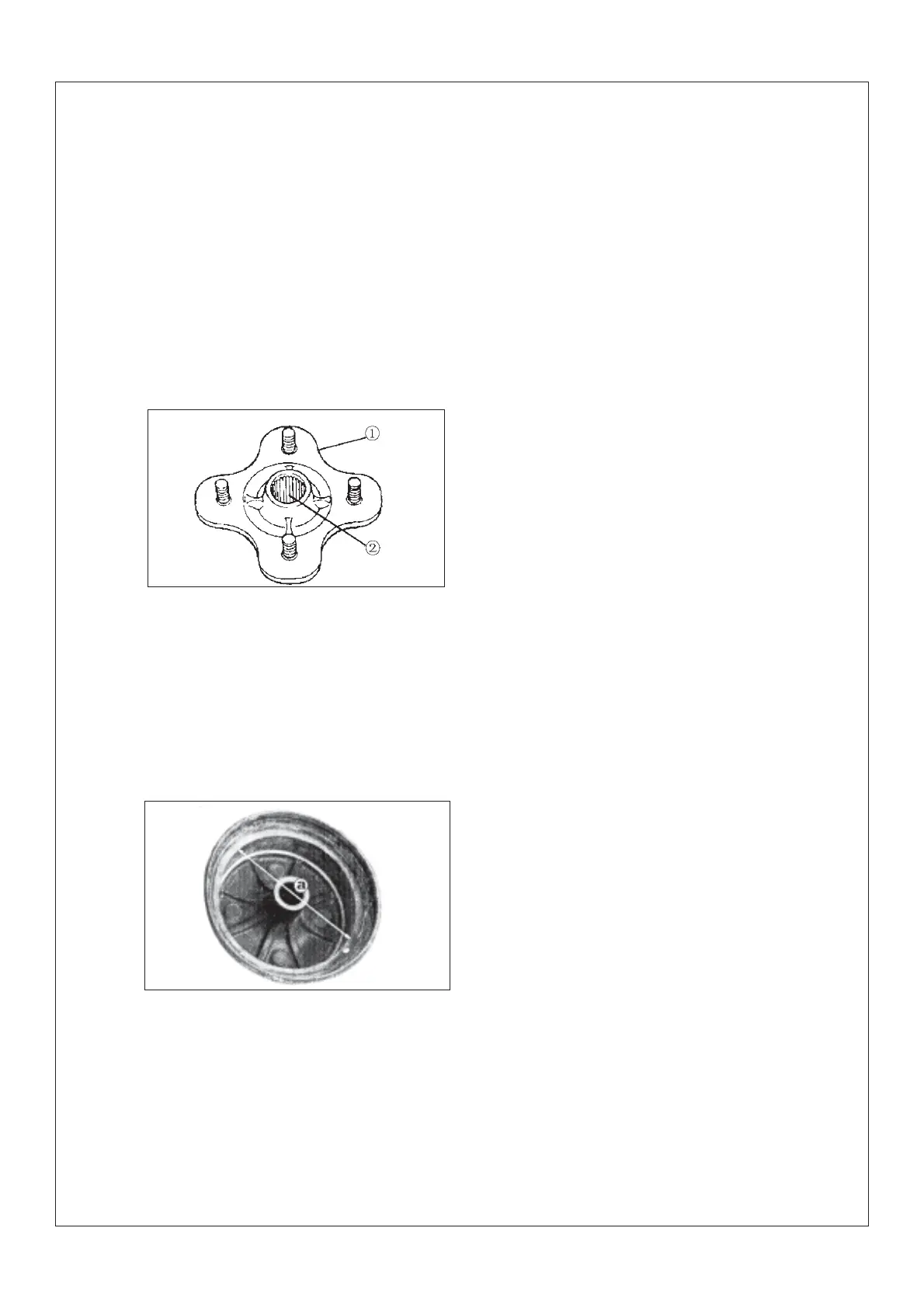

¢ÙRear wheel connection plate ¢Ù,If cracks
or damage is found, replace it.
¢ÚInvolute spline on rear wheel connecting
plate
¢ÚIf worn or damaged, replace it.
4.Inspection:
Friction plate of rear brake
5.Measurement
Thickness of brake friction plate
See the “Front wheel and front brake
inspection”Section of this chapter.
Attached:The thickness of brake friction plate
is :4.0mm(0.16in)
<Wear limit>:2.0mm(0.08in)
6.Inspection
Tension spring of brake shoe
See the “Front wheel and Front brake
Inspection”Section of chapter
7.Measurement
Internal diameter of rear brake hub@
If out of the specification, replace the hub
Attached:Internal diameter of rear brake hub:
160mm
<Wear limit>:161mm
- 87 -
