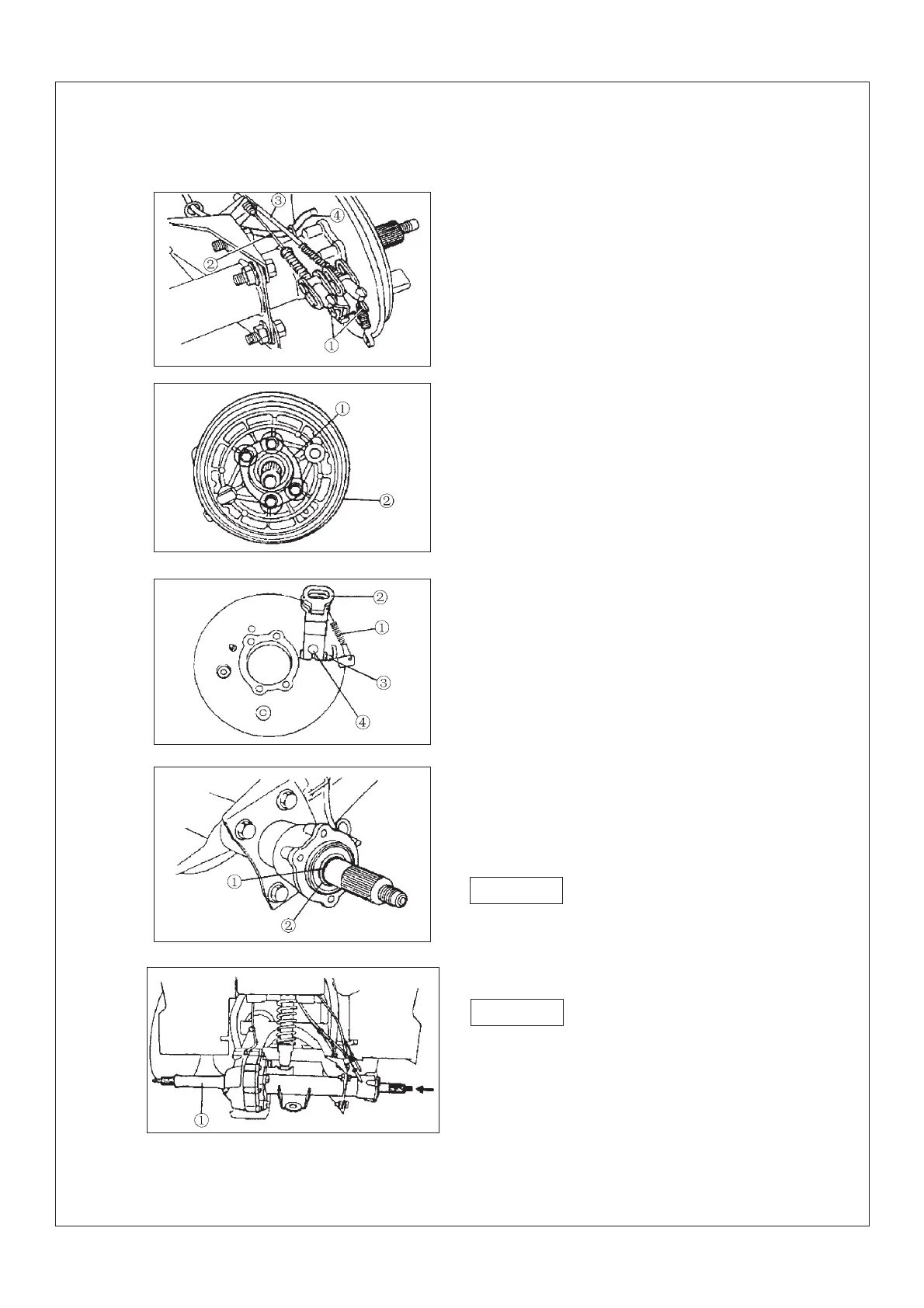

8.Removal:(the ser.No as shown on the
drawing)
¢ÙAdjusting nut, pin and spring of rear brake
arm and rear brake tension rod assy.
9.Removal:
¢ÚRear brake cable
¢ÛRear brake tension rod assy
¢ÜAir pipe of rear brake
10.Removal:
¢ÙRear brake bearing block
¢ÚRear brake hub
11.Removal:
¢ÙTension spring
¢ÚRear brake arm
¢ÛBrake indicating plate
¢ÜRear brake cam shaft
12.Removal:
¢ÙO-ring
¢ÚPlain pad of rear brake cover
13.Removal:
¢ÙRear wheel axle:Beat the right end of the
rear, wheel axle slightly, pull the rear wheel
axle from left end.
Take out the rear wheel axle from the end of
rear wheel axle bushing and gear box with soft
hammer.
During taking out the rear wheel axle, in order
to protect the thread and gear groove from
damage, do not beat the rear wheel axle di-
rectly with hammer.
Caution
Warning
- 86 -
