ATV 200 - Section 11 Inspection of Signal System; (I)If the Neutral Indicated Lamp Is out of Work

Section 11 Inspection of Signal system

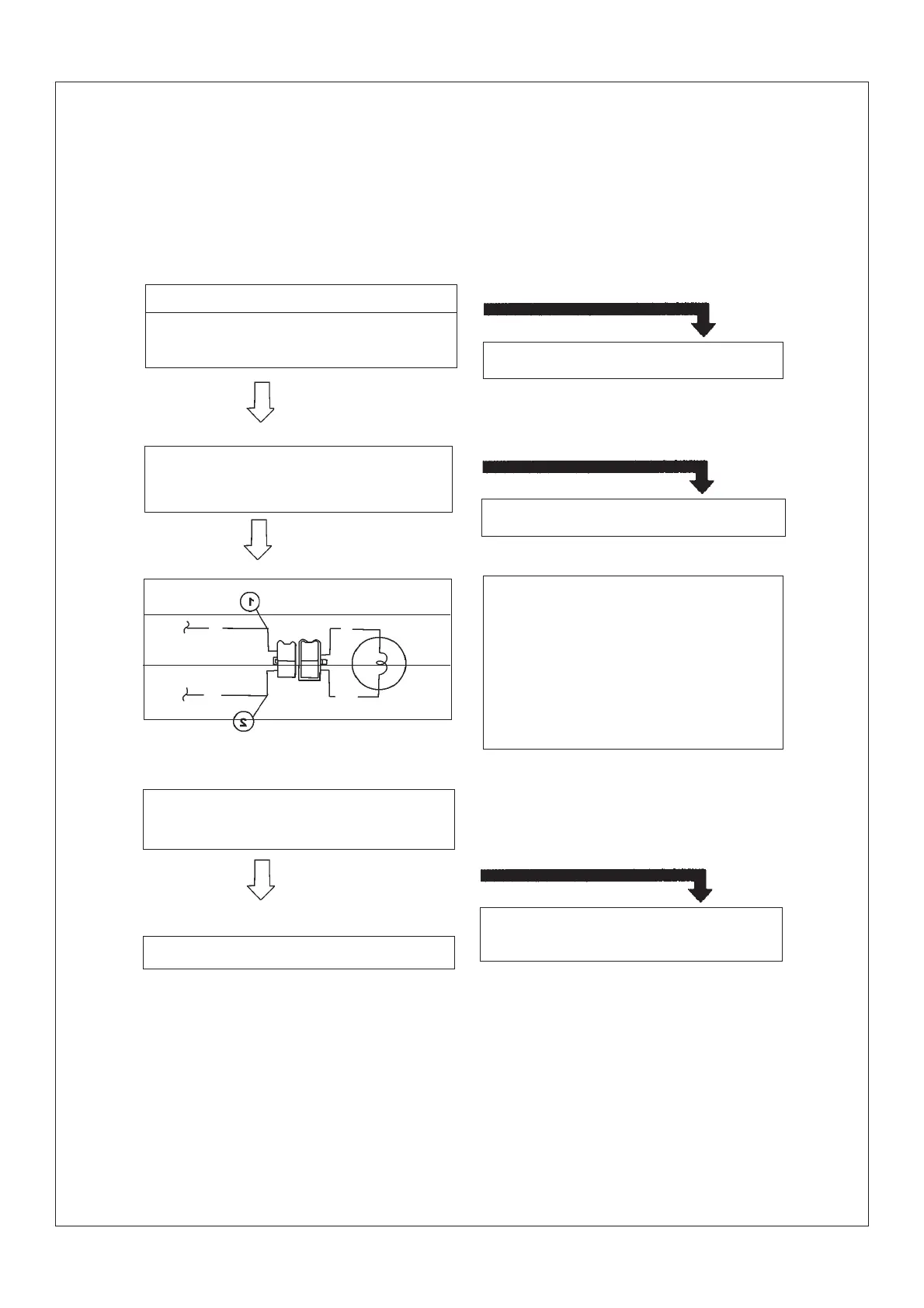

(I)If the neutral indicated lamp is out of work
1.Bulb and bulb socket
.Check if bulb and bulb socket circuit is cor-
rect
2.Neutral switch
Refer to “Inspection of switch”
3.Voltage
.Connect pocket multimeter (DC 20V)to the
terminal of bulb socket
Multimeter (+)
¡úbrown terminal¢Ú
Multimeter (+)¡úsky blue terminal¢Ù
.Adjust main switch to “ON”position.
.Check voltage (12V)
No failure on this circuit
Meet specification
Correct
Correct
No electrification
Replace bulb and/bulb socket
No electrification
Replace neutral switch
Out of specification
If there is failure on the circuit from main
switch to the bulb socket coupler, repair it.
- 139 -
Lb
Br
Lb Lb
Br
Br
Br
Lb
