2.Adjustment

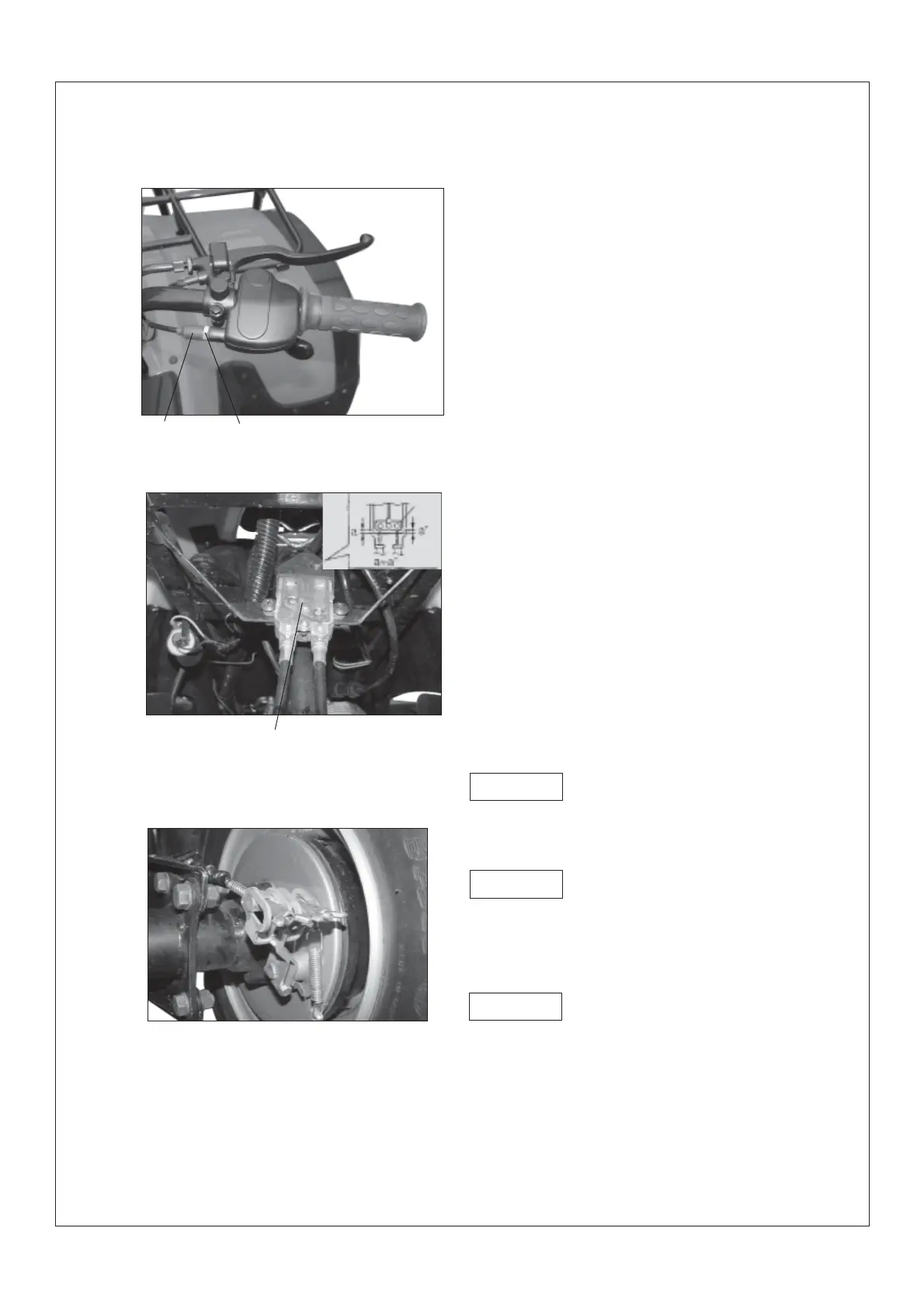

Adjusting procedure of free clearance of right
lever:
.Loosen the locking nut ¢Ù,and rotate the
cable adjusting screw ¢Úclockwise to reduce
the tension of front brake cable.
.Check the cable joint ¢Üof balancer¢Û to ex-
amine the balance.
.If unbalanced. rotate the two adjusting nuts
¢Ý until the cable joint ¢Üis balanced.
.Pick up the front wheel frorm ground, and
rotate the two front wheels, and ensure the
two front brake light brake force.
.Rotate the adjusting screw ¢Ú clockwise or
counterclockwise to gain proper free
clearance.
Clockwise: increase free clearance
Counterclockwise: reduce free clearance
.Tighten the lock nut
(III)Adjustment of free clearance of rear brake
pedal.
Before adjusting, must check the wear condi-
tion of rear brake.
In order to avoid too large or too small brake
force of rear brake, must ensure qualified free
clearance of rear brake pedal.
When braking after adjusting, must adjust the
rear brake pedal simultaneously.
1.Place the vehicle on the horizontal ground
Caution
Caution
Warning
- 40 -
¢Ù
¢Ú
¢Û
¢Ü
