Section 7 No charging in the Battery
Steps

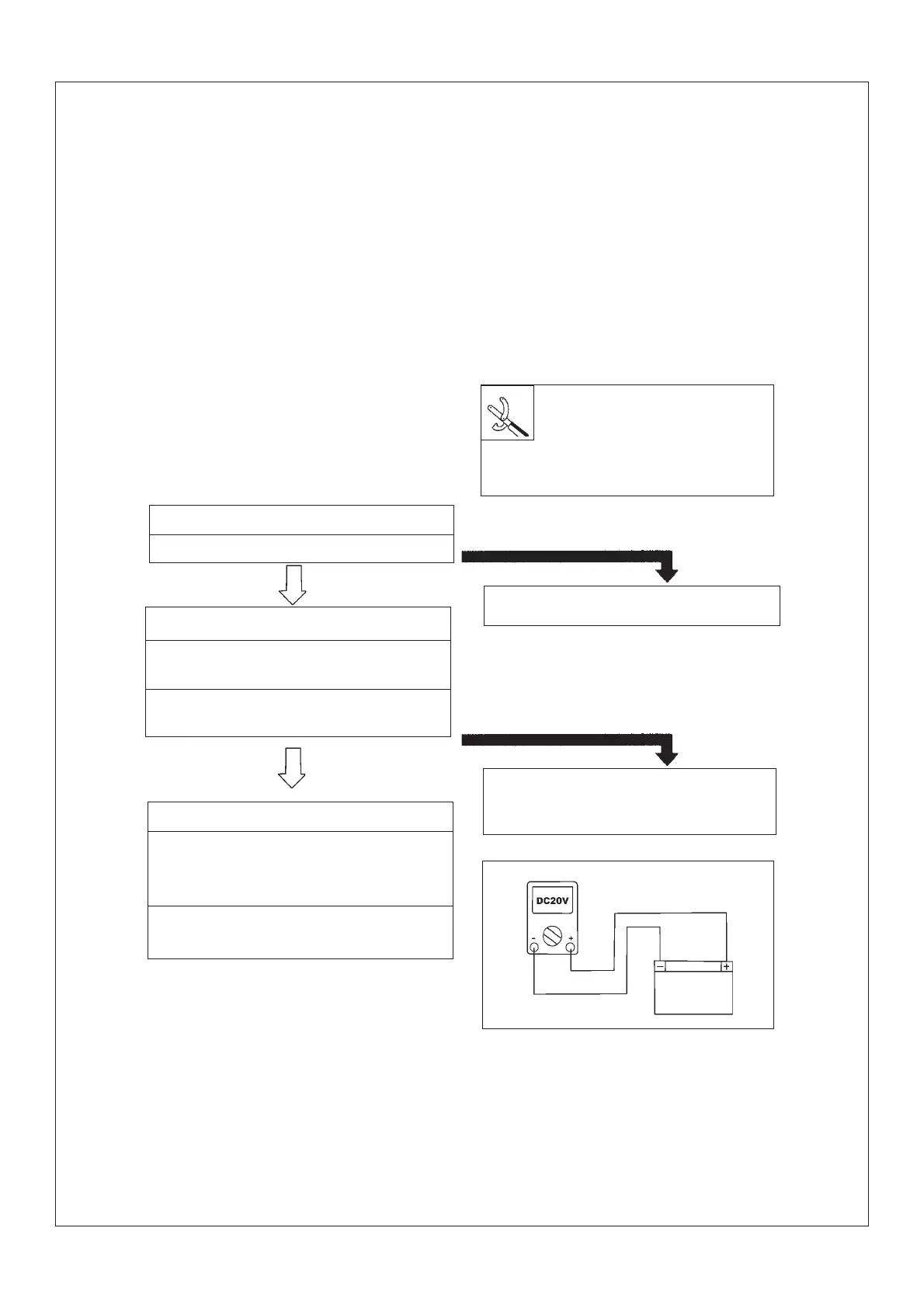

Check:
1.Safety
2.Battery
3.Charging voltage
4.Stator coil
5.Coupling of circuit
(Whole charging system)
Remark
.Remove some parts before maintenance
1)Cushion
.Repair with following special toolings
1.Safety
Refer to “Inspection of switch”
2.Battery
.Check battery condition
Refer to “Inspection of Battery”in charter 3
Voltage:
12.8V or more at 20¡æ(68¡ãF)
Correct
Pass
3.Charging voltage
.Connect engine tachometer to the wire of spark
plug
.Connect pocket multimeter(DC20V)to the battery
Pocket multimeter(+)¡úWhite terminal
Pocket multimeter(-)¡úWhite terminal
.Clean battery terminal
.Recharge or replace battery
Incorrect
Replace the safety
NO electrification
Pocket multimeter
Coil tachometer
Engine tachometer
- 129 -
