.Start the engine and accelerate to 2000r/m or so.
Charging voltage:14-15V at 2000r/m
Remark:
Use battery with full capacity

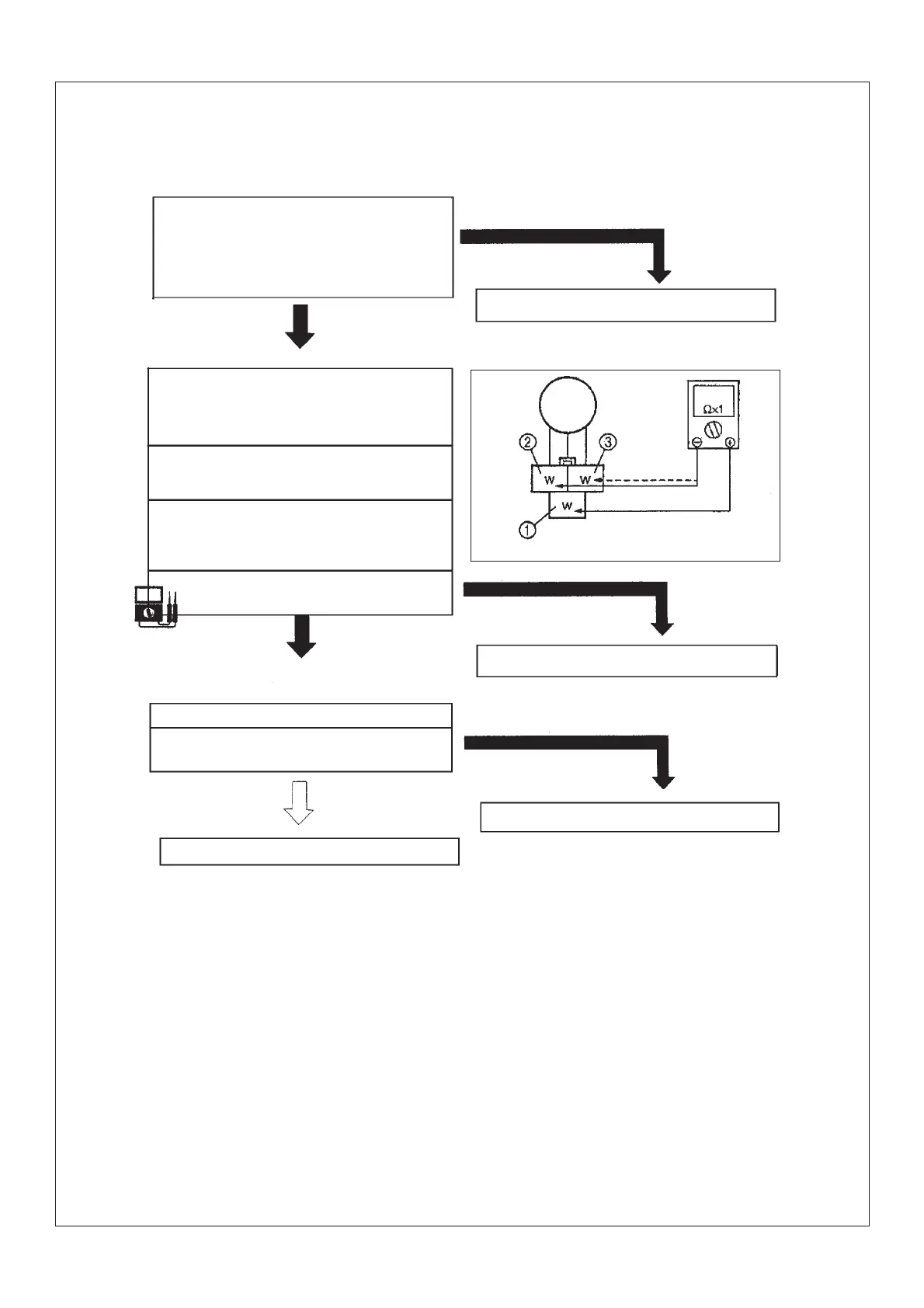

4.Resistance value for stator coil
.Take out the lighting coil of AC magneto from
inserter
.Connect pocket multimeter to stator coil(¦¸¡Á 1)
Pocket multimeter(+)¡úWhite terminal
Pocket multimeter(-)¡úWhite terminal
Pocket multimeter(+)¡úWhite terminal
Pocket multimeter(-)¡úWhite terminal
Measure the resistance value of stator coil
At 20¡æ(68¡ãF)11.10-1.50¦¸
Meet specification
No failure on charging circuit
Oil of specification
5.Coupling of circuit
.Check the whole coupling of charging wire.
Refer to “Electric diagram”.
Replace rectified adjuster
Connect the charging system correctly
Repalce parts of stator coil
Out of specification
Poor connection
Meet specification
Correct
- 130 -
