Chapter V Engine
Section 1 Disassembly of engine
(I)Remove the engine from finished ATV
1.Remove
.Cushion
.Front luggage carrier
.Front bumper
.Front fender
.Rear luggage carrier
.Rear fender
The disassembling method refers to “Fender,
fuel tank disassembly” of chapter II.
2.Oil draining
Screw out oil draining screw plug. Drain off
the lubricating oil of the engine from the oil drain-
ing hole.

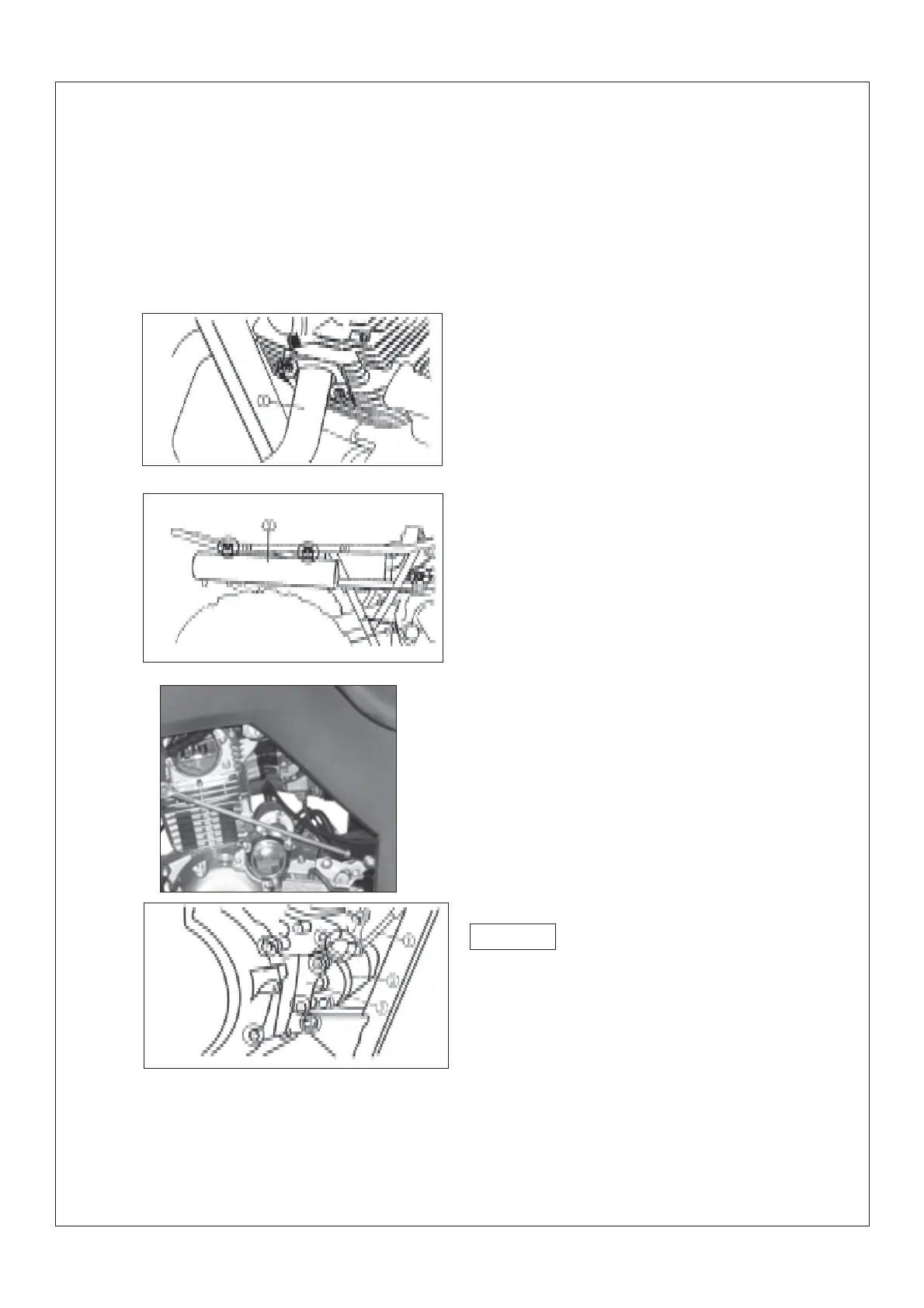

3.Exhaust pipe and silencer
1)Remove
.Exhaust pipe ¢Ù
2)Remove
Silencer¢Ú
4.Carburetor and air intake pipe
Place the throttle cock grip on “OFF”position,
and remove:
.Throttle cable
.Oil pipe
.Hoop
.Carburetor, carburetor seat and hook hitch
assy.
Before disassembling., drain off the gasoline of
the carburetor float cabinet firstly. Wrap the
overflow pipe with cloth to absorb the splashed
gasoline. The gasoline is inflammable, Pay at-
tention not to splash the gasoline on hot engine.
5.Starting motor
1)Remove
.Starting motor line ¢Ù
Caution
- 142 -
