ATV 200 - (VI)Pad Choice of Main Driving Gear and Shift Gear

(VI)Pad choice of main driving gear and shift
gear

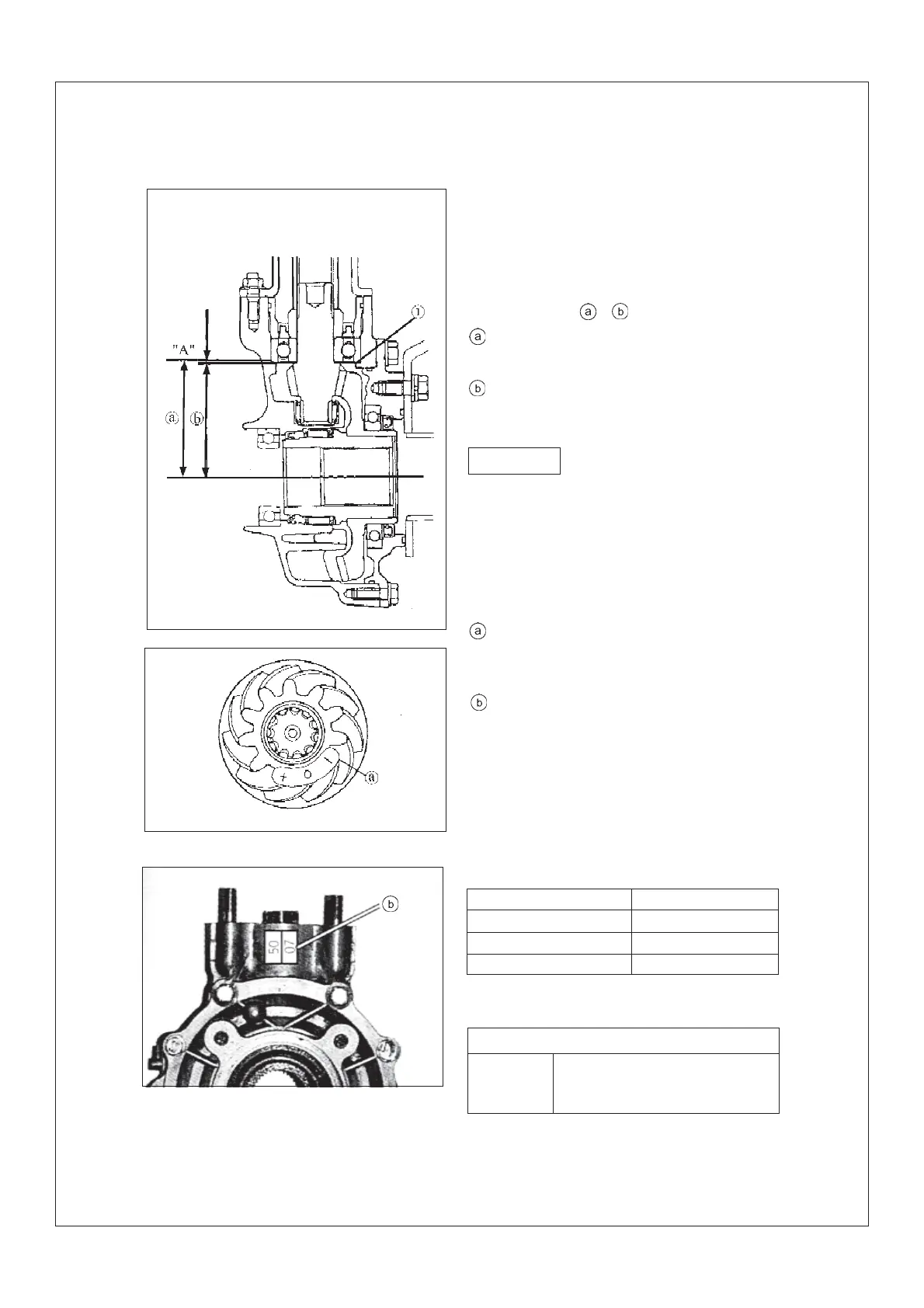

1.Choice of main driving gear pad:
Work out the main driving gear pad
thickness“A”= -
=84 add or subtract the number engraved
on the main driving
=83.5 add or subtract the number engraved
on the driving gear case body.
The unit of all the numbers engraved on the
main driving gear and driving gear case body
is 1/100mm.
For example:
1)If on the main driving gear engraved“+01”
=84+0.01=84.01
1)If on the driving gear case body en-
graved“10”
=83.5+0.01=83.60
3)So:“A”=0.41
4)Amend the percent digit and choose proper
pad.
In above example, the resulted value is 0.41,
but the meter indicates to amend 1 of percent-
age digit to 0,so the pad thickness is 0.40mm.
Caution
The pad has following thickness.
Number on percent digit
0,1,2
3,4,5,6,7
8,9
Amending value
0
5
10
Thickness
mm
Main driving gear pad
0.15 0.50
0.30 0.60
0.40
- 73 -
