ATV 200 - (I)Removal Steps

(I)Removal steps

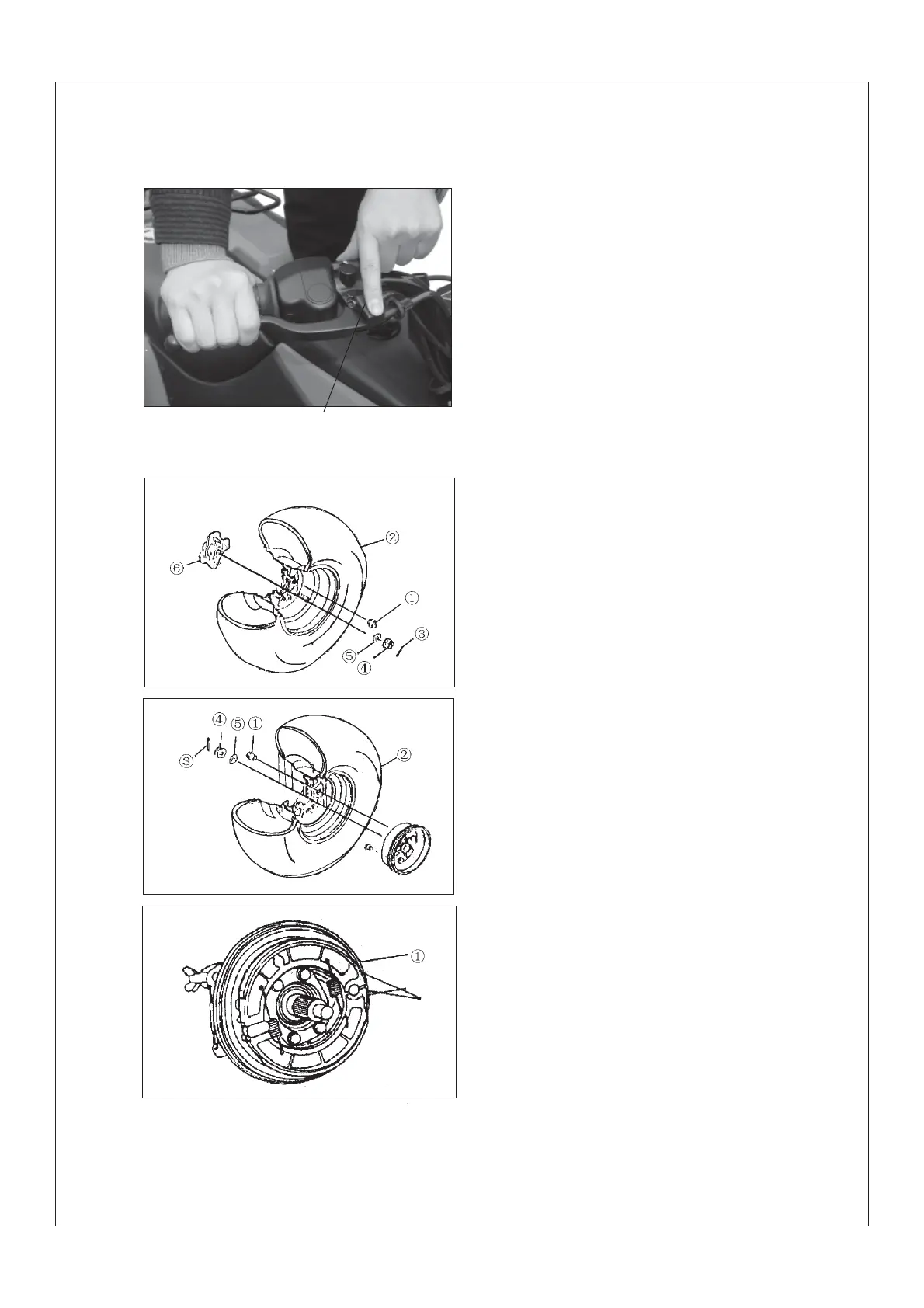

1.Loosen the connecting nuts of front and rear
wheels.
2.Stop up the front wheel with wood, then put
a proper supporting article under the frame so
as to lift the rear wheel and make the rear
wheel leave the earth.
In order to avoid the parts falling, which will
cause danger, during removal process, rest
the vehicle firmly.
4.Removal (the Ser. No is corresponding to
the Ser.No on the drawing)
¢Ùconnecting nut of front and rear wheels
¢ÚLeft rear wheel
¢ÛSplit pin
¢ÜRear wheel axle nut
¢ÝWasher
¢ÞRear wheel connecting plate
5.Removal (the Ser.No is corresponding to the
Ser. No on the drawing)
¢ÙConnecting nut of front and rear wheels
¢ÚRight rear wheel
¢ÛSplit pin
¢ÜRear wheel axle nut
¢ÝWasher
6.Loosen the rear brake clip
7.Removal:
Brake shoe assy ¢Ù
- 85 -
