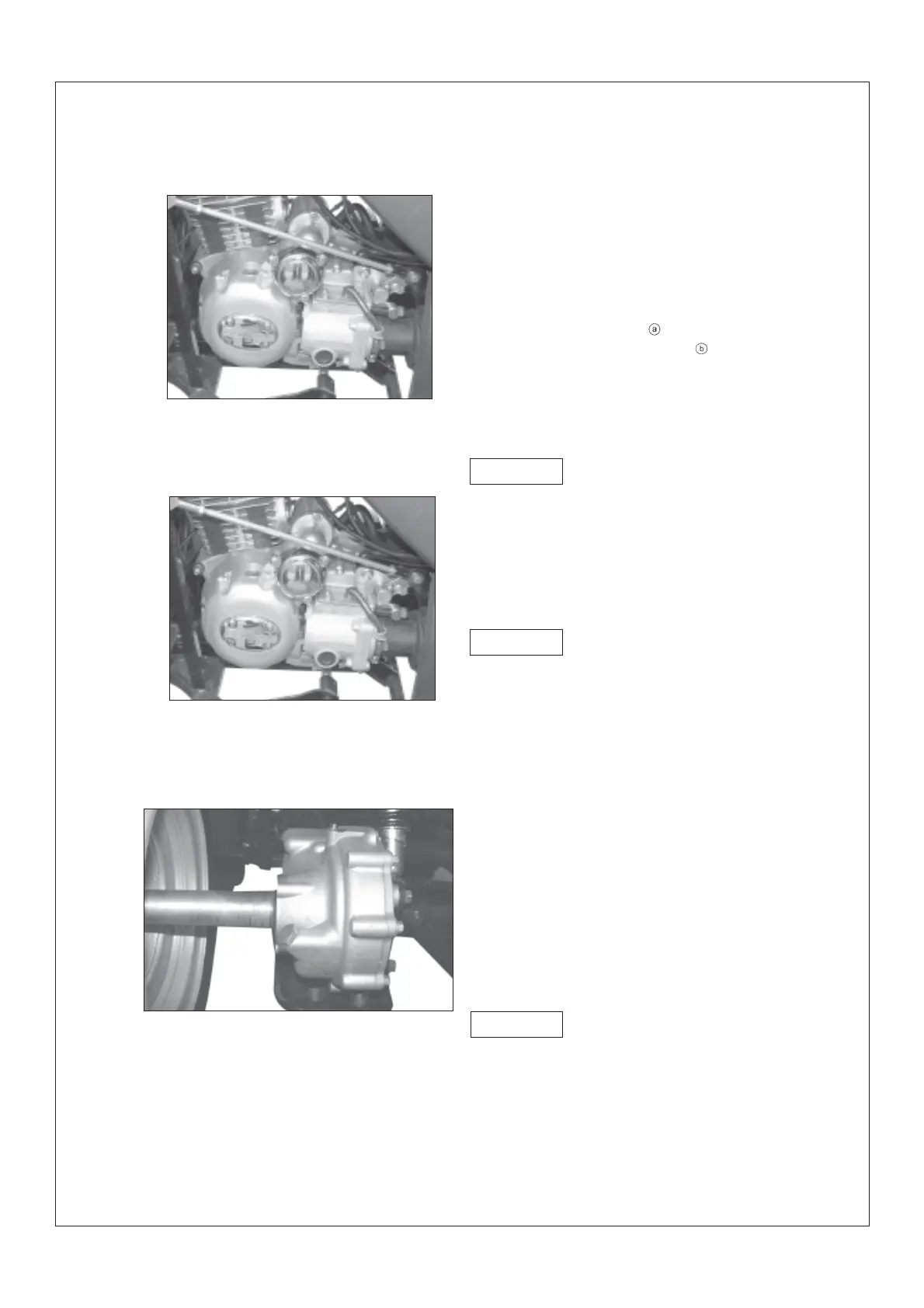

(IV)Position adjustment of steering lever
.Position adjusting procedure of steering lever.
.Place the vehicle on the flat ground.
.Change the shift to the 1st gear, and pull the
steering lever to reverse gear position.
.Loosen the locking nut
.Screw in or out the adjusting nut of steering
lever until the middle line of the tension rod
plate aims at the alignment mark on the rear
transmission cover (or the vehicle will not re-
lease the gear in driving when on driving or re-
verse gear.)
.Screw tightly lock nut
Torsion of lock nut :15N.m
After adjusting the steering lever, ensure the
reverse gear indicator to light up when the steer-
ing lever is on reverse gear position.
(V)Lubricating oil level inspection of rear driv-
ing gearcase.
Check the lubricating oil level of rear driving
gear case. Refill the oil if the level is low:
The engine must be in cold state. (at normal
temperature.)
Checking procedure:
.Place the vehicle on the flat ground.
.Place an oil catcher under the rear driving gear
case.
.Remove the oil filling screw plug and sealing
washer.
.Observe the oil level: the correct lever should
be on the bottom of oil filling hole.
.If the oil level is too low, please refill the rec-
ommended engine oil to specified oil level.
Refer to the section “Replacement of engine oil
of rear driving gear case”.
.Check the damage of sealing washer .If
damaged, replace it .
.Install the sealing washer and oil filling screw
plug ¢Ù.
.Install the sealing washer firstly before install-
ing the oil filling screw plug.
.After installing the oil filling screw plug, check
the leakage.
Torsion of oil filling screw plug: 23N.m
Caution
Caution
Caution
