ATV 200 - (II) Rear Fender

(II) Rear fender

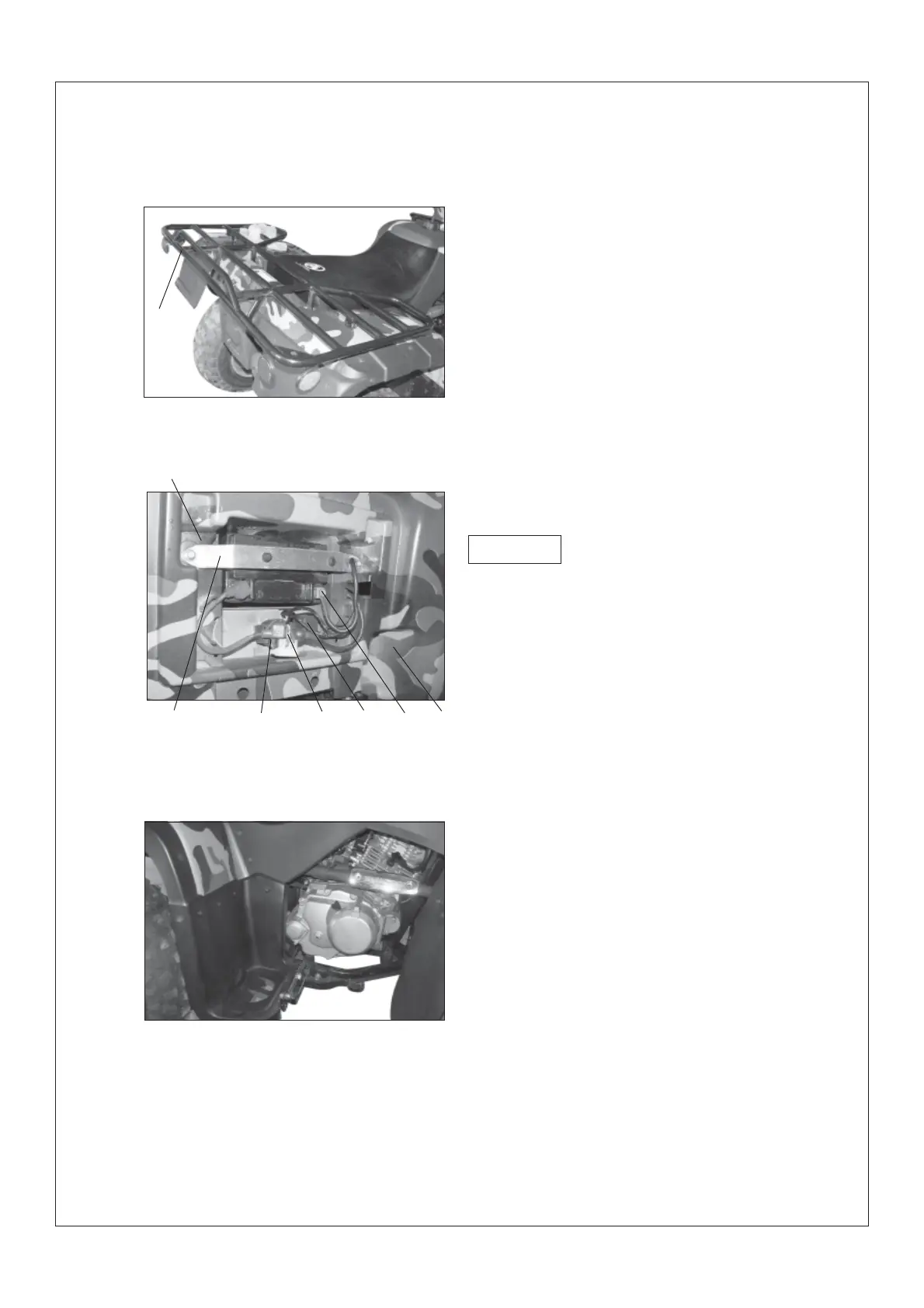

1.Disassembly
(1)Place the vehicle on the horizontal ground.
(2)Disassemble the rear luggage carrier ¢Ù
(3)Disassemble the cushion (see the centents
of cushion disassembly in this section)
(4)Disconnect the negative wire ¢Ýand posi-
tive wire ¢Ü of battery.
Should disconnect the negative wire¢Ý firstly.
(5)Disassemble the clamp plate ¢áof battery.
(6)Disassemble the starting relay ¢Þ.
(7)Disassemble the cut-off relay ¢ß.
(8)Take out the battery ¢à.
(9)Disassemble the rear fender ¢â.
Caution
¢Ù
¢à
¢á
¢Ü
¢Þ
¢ß
¢Ý
¢â
- 33 -
