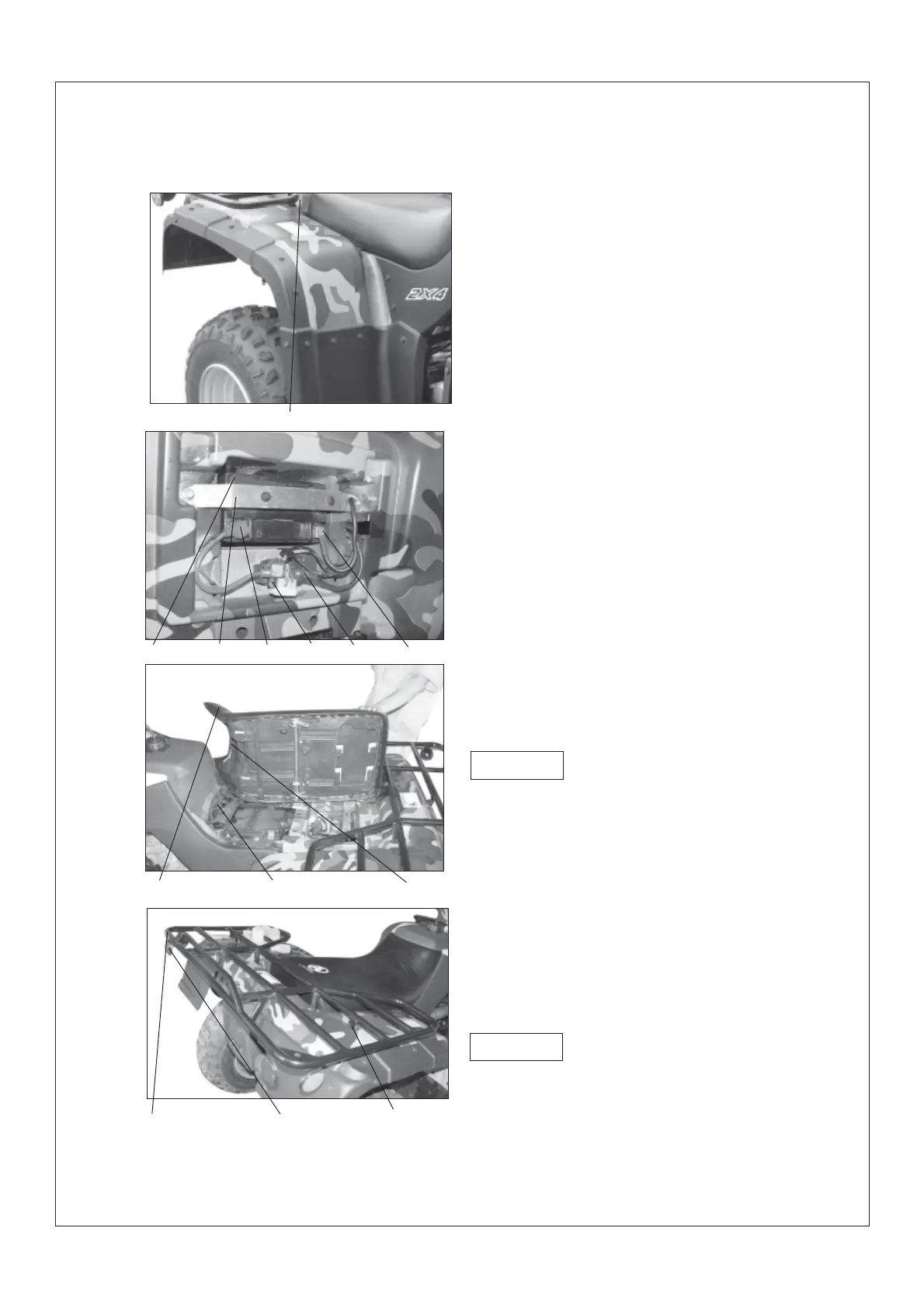

2.Installation
Operate according to reverse procedure of
“Disassembly”.Pay attention to the following
points:
(1)Install:
Rear fender
Bolt ¢Ù(rear fender and frame).The torsion is
7N.m.
Bolt ¢Ùand rubber hood of protecting plate
(rear fender and frame).The torsion is 7N.m.
(2)Install:
a.Battery ¢Ù
b.Battery clamp plate ¢Ú
(3) Install:
a.Cut-off relay ¢Û
b.Starting relay ¢Ü
c.Connect the positive wire ¢Þof battery
d.Connect the negative wire ¢Ý of battery
(4)Install the cushion¢Ù
Insert the support lug ¢Ú of cushion into the
plug seat ¢Ûon the frame, then press down
the cushion.
(5)Install the rear luggage carrier ¢Ù
Torque requiement of fasteners:
Bolt ¢Úfastening torque: 3N.m
Bolt ¢Ûfastening torque:9N.m
Caution
Caution
Remember to install the bushing on the con-
necting point of luggage carrier and frame.
¢Ù
¢Ù ¢Ú
¢Þ
¢Ü
¢Û
¢Ý
¢Ù
¢Û
¢Ú
¢Ù
¢Ú
¢Û
- 34 -
