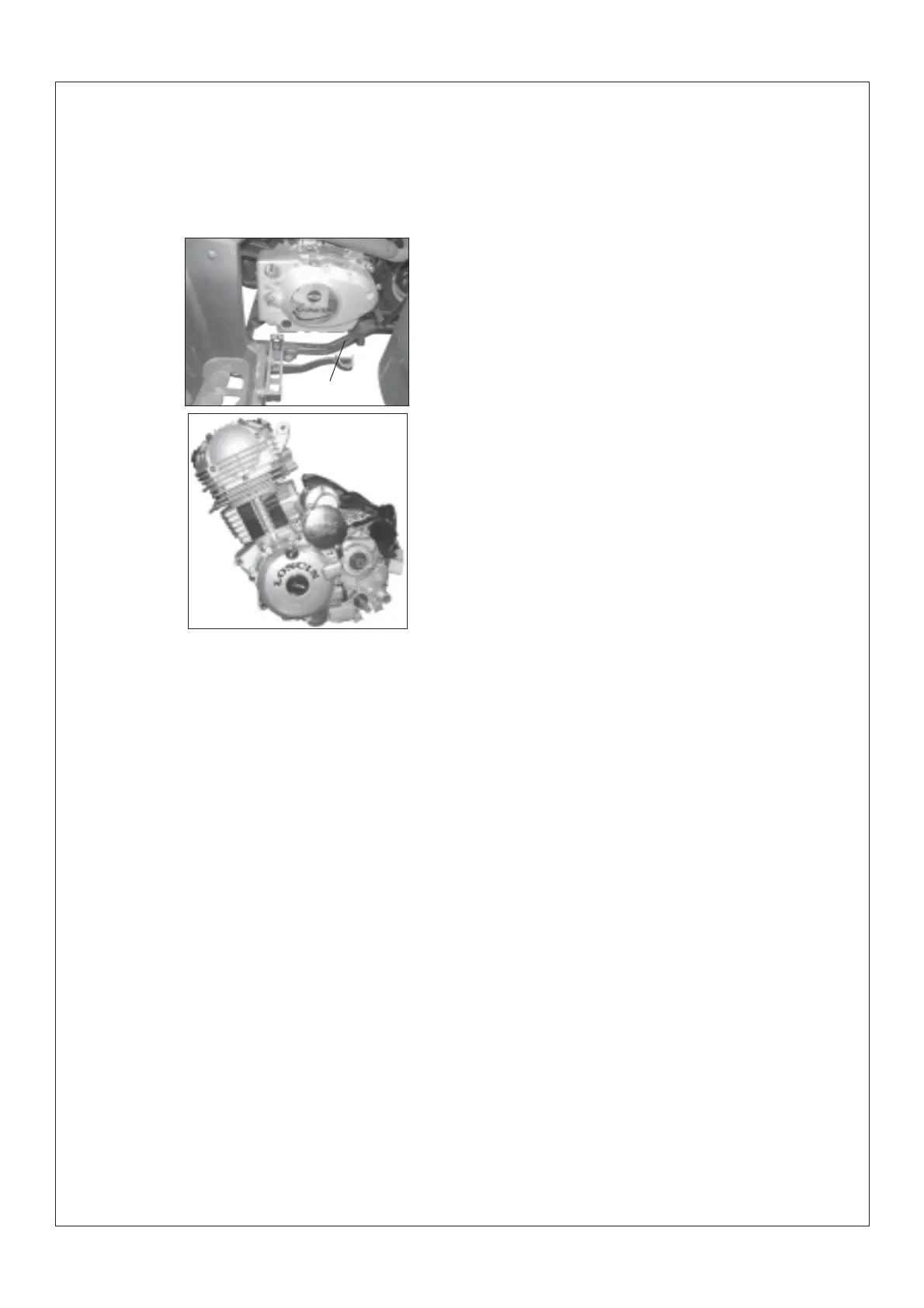

Section 3 Identification code, and engine N0.
Identification code
It is engraved in the left or right side of front
supporting main tube of engine of frame.
Engine N0.
It is engraved on the lug of top middle part of
right crankcases of engine.
Section 4 Points for attention in maintenance
- 4 -
1.Preparation when disassembling
1.1 First clean the dirt, mud and attach-
ment on the vehicle before removing or
disassembling.
1.2 Use proper special tools cleaning de-
vice and means.
1.3 Keep all the components away from
fire source. Pay attention to the safety, Don’t
be burned by the high temperature portion of
engine, exhauster and silencer etc. Be sure to
take care of each other when operation with
other people.
1.4 When disassembling the ATV, put the
mated components, such as gear pairs,
cylinder, piston and other “mated” components
by normal running in together, When assem-
bling or replacing these components, they should
be in pairs.
1.5 When disassembling the engine, clean
all the components and put in the tray in the
order of disassembly, this in assembling, can
not only increase the assembling speed, but also
ensure the rightness of assembling.
2.Replace the components
When replacing the components, be sure
to use qualified products provided by use lubri-
cants and grease which brand is assigned by
lubricate.
3.Oil seal, shim, o-ring, clip, split pin,
elastic washer.
3.1 When disassembling to maintain the
engine, in order to ensure that the reassembled
engine have good sealing and connecting part
is fixed and reliable, all the oil seal, shim, o-
ring, clip, split pin and elastic washer should be
replaced, be sure to keep lip of oil seal surface
of shim and o-ring in cleaning condition.
3.2 When reassembling, apply lubricants
to lubricate all the mated components and
bearing, apply grease for oil seal.
