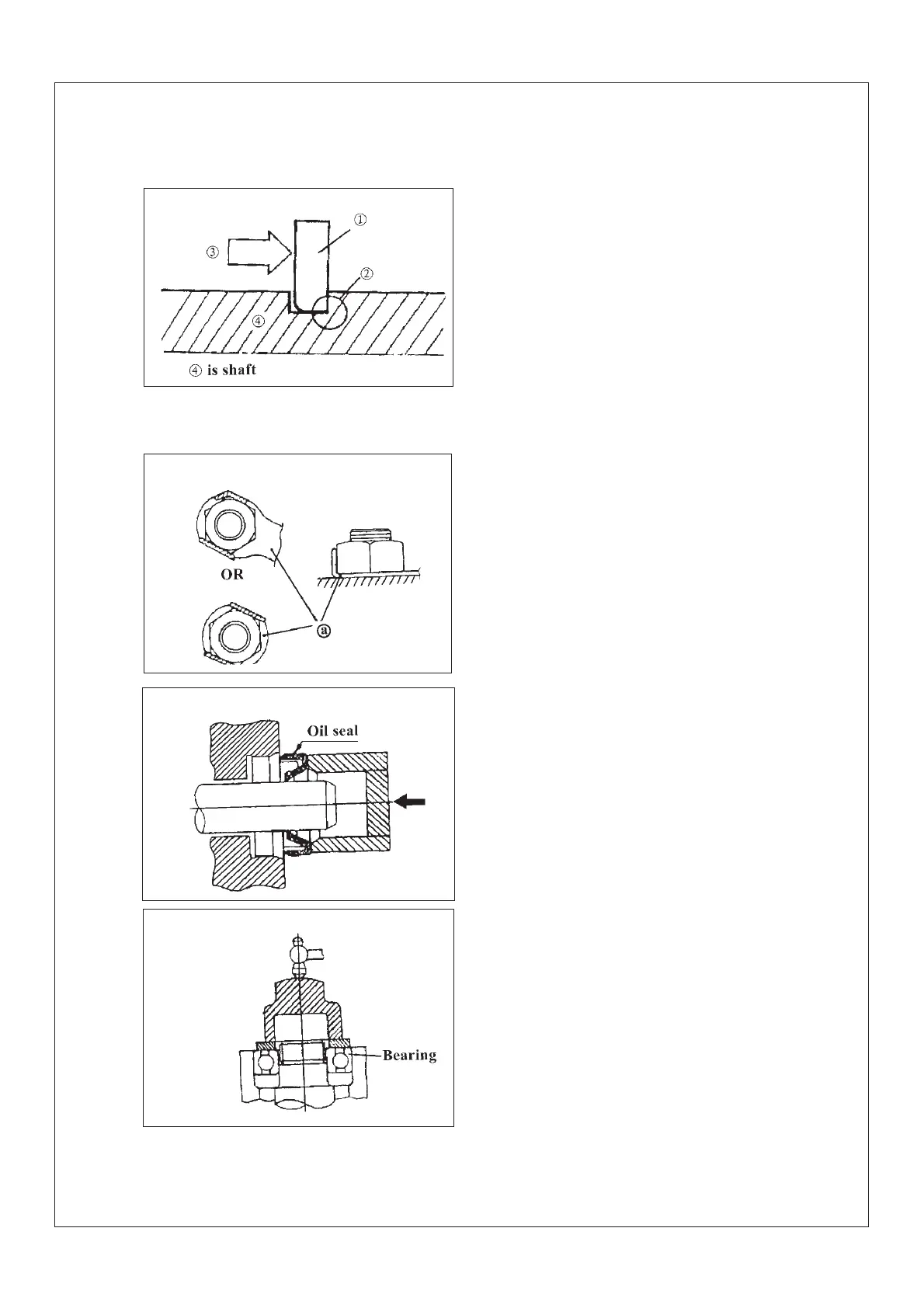

4. Clip
4.1Before assembling, be sure to check
all the clips carefully.Use a new one after re-
moving the clip of piston pin. When mounting
clip ring ¢Ùmake the sharp face ¢Úon the op-
posite position of impacted face ¢Ûof clip.
(see left fig)
5.Locking washer /shim and location pin
5.1When reassembling after
disassembling. be sure to replace all the lock-
ing washer /shim and location pin @ After
bolt or nut is fixed on the locking position. be
sure to bend and fix both ends of locking shim
along head of bolt or direction of nut.
6.Bearing and oil seal
6.1 When assembling bearing and oil seal
put the mark or specification of manufacturer
outside, When assembling oil seal apply a thin
film of lithium-base grease on the lip of oil
seal.
Caution:
Don’t blow to dry the inside of bearing
with compressed air, this would damage the
surface of bearing.
- 5 -
