(IV)Disassembly
Support the vehicle firmly and ensure no turn-
over
1.Drain the oil:
The oil of rear driving gear case
Refer to 3rd section“Replacement of engine
oil of rear driving gear case”of chapter2.
2.Disassemble
1)Cushion
2)Rear luggage carrier
3)Rear fender
Refer to 2nd section“rear fender”of chapter
3.Disassemble
1)Rear wheel(left)
2)Connecting plate of rear wheel
3)Rear wheel(right)
4)Rear brake and rear brake hub
5)Rear wheel shaft
Refer to “Rear wheel/rear brake/rear wheel
shaft”of this chapter
4.Disconnect:
Air pipe (rear driving gear case)

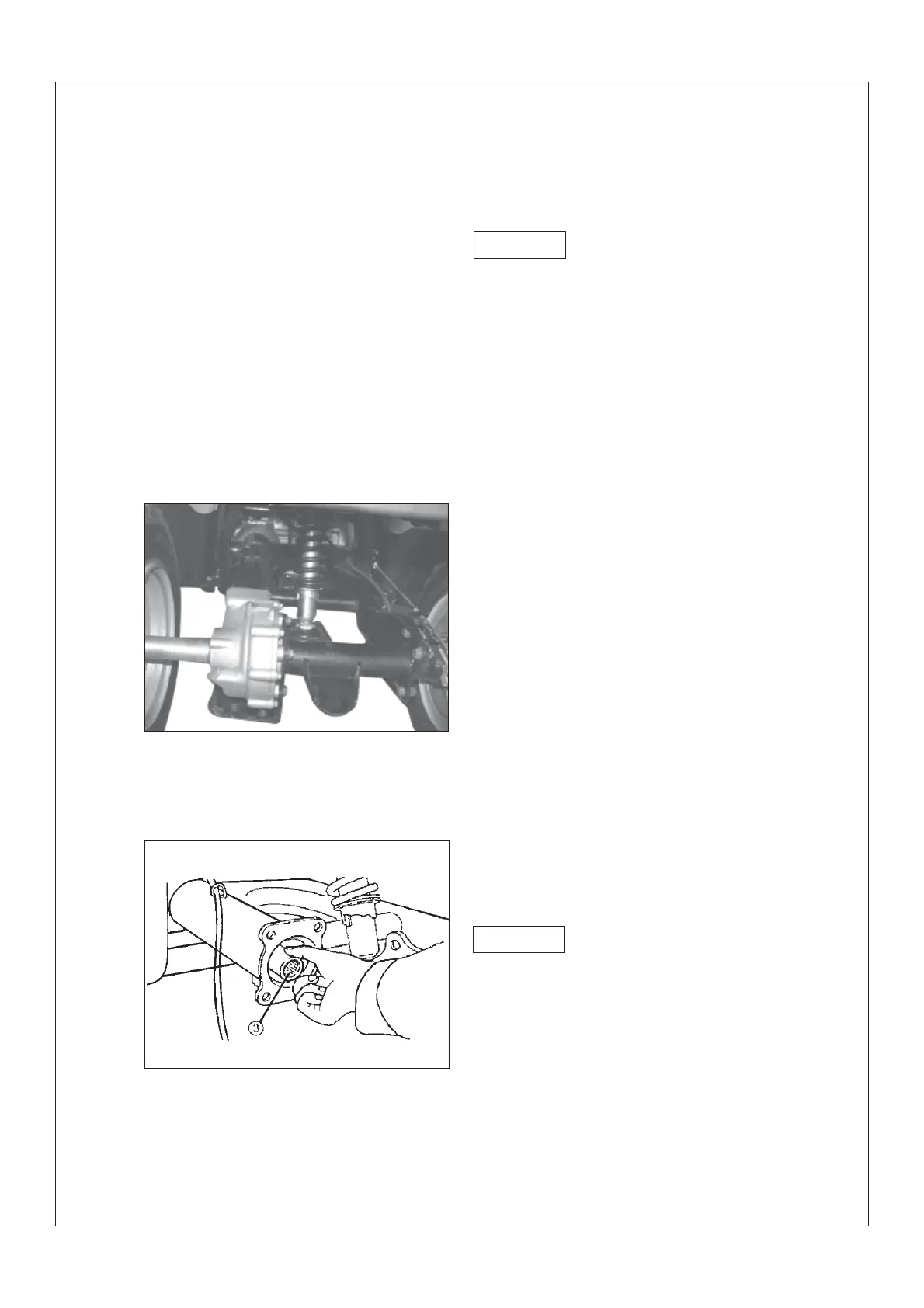

5.Disassemble
rear driving gear case body
1) When the driving gear case is removed from
the rear wheel fork, the transmission shaft¢Û
may drop out.
2)Pay attention not to lose these components.
Caution
Warning
- 69 -
