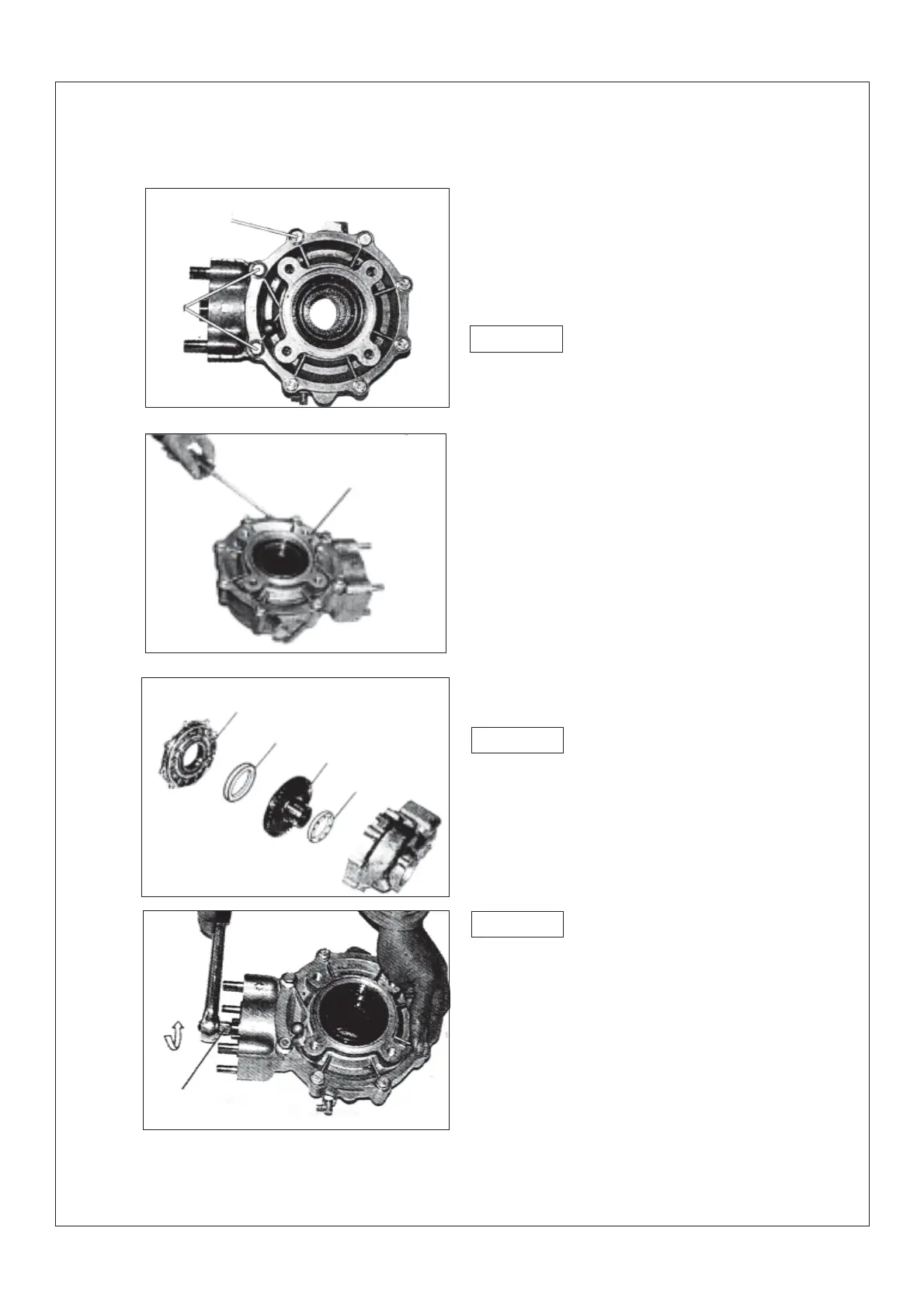

1.disassembly
a.Remove
bolt¢Ù M6
bolt ¢ÚM8
Remove the bolts alternately. Loosen each bolt
by 1/4 circle, and remove them after all of them
are loosened.
b. Disassemble:
1)Rear driving gear case body ¢Ù
2)Annular gear pad ¢Ú
3)Shift gear ¢Û
4)Thrust plain pad¢Ü
c.Disassemble:
Bearing gasket(transmission shaft-last grade)
There are left handed thread on the bearing
gasket. Rotating it clockwise may loosen the
bearing gasket.
When reinstalling the bearing gasket, use spe-
cial wrench ¢Ù.
Caution
Caution
Caution
¢Ù
¢Ú
¢Ù
¢Ù
¢Ú
¢Û
¢Ü
¢Ù
- 70 -
