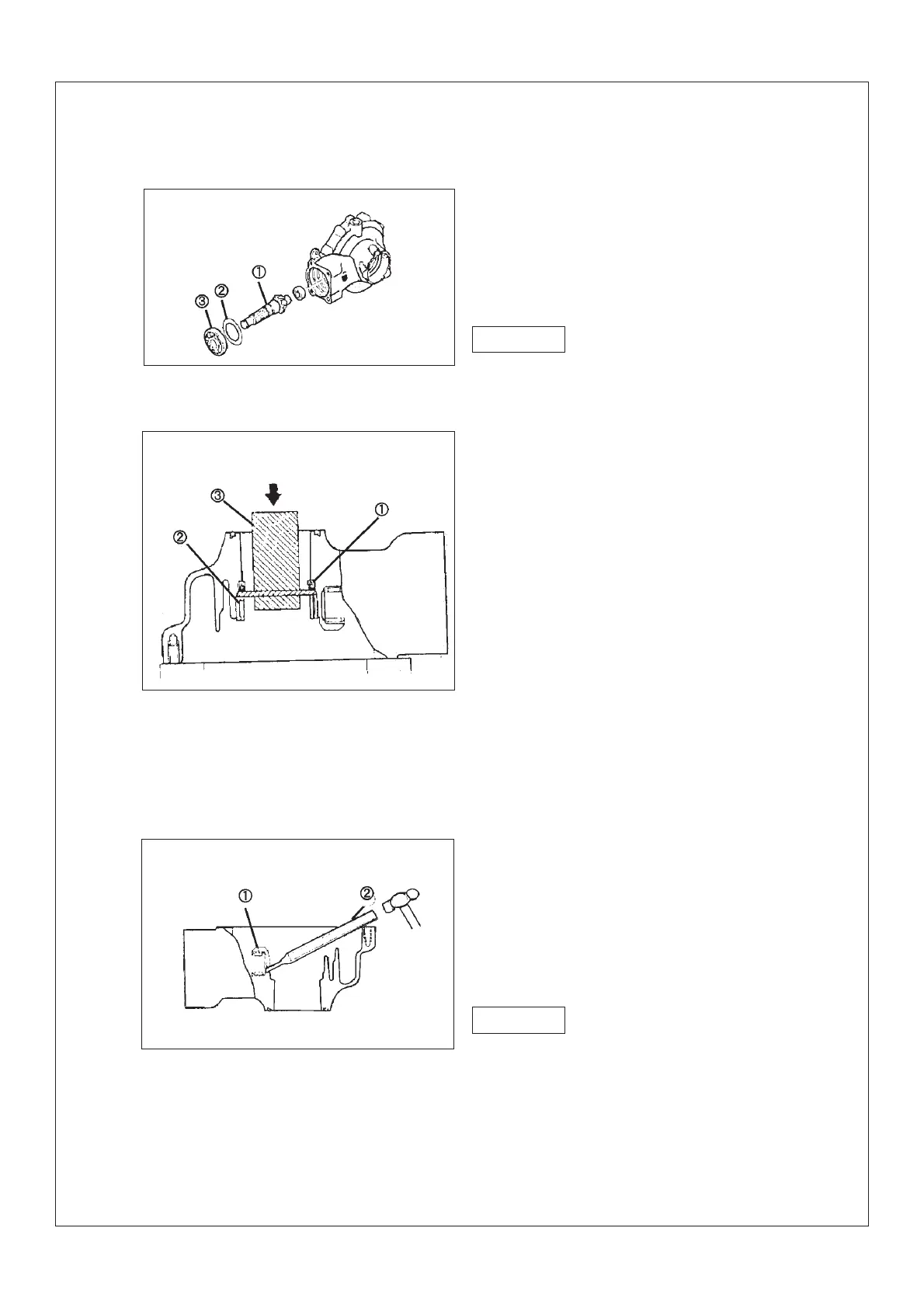

d.Disassemble
Tap the main driving gear lightly with soft
hammer,and remove the main driving gear¢Ù
(with thrust pad ¢Úand bearing ¢Û)
If it is necessary to replace the gear, should
remove the main driving gear firstly. Do not
use the original bearing thrust pad. Replace
them.
e.Disassemble:
1)Oil seal¢Ù
2)Bearing ¢Ú (shift gear)
Use proper pressure assemble tool ¢Ûto rear
driving gear case, and support it properly.
f.Disassemble:
Bearing ¢Ù(main driving gear)
disassembling procedures:
1)Warm the rear driving gear case to 150¡æ
2)Remove the outer circle of bearing with a
proper punching pin¢Ú.
3)Remove the inner circle of bearing of main
driving gear.
It is very difficult to remove the inner circle of
the main driving gear bearing. In general it is
unnecessary to remove it.
Caution
Caution
- 71 -
