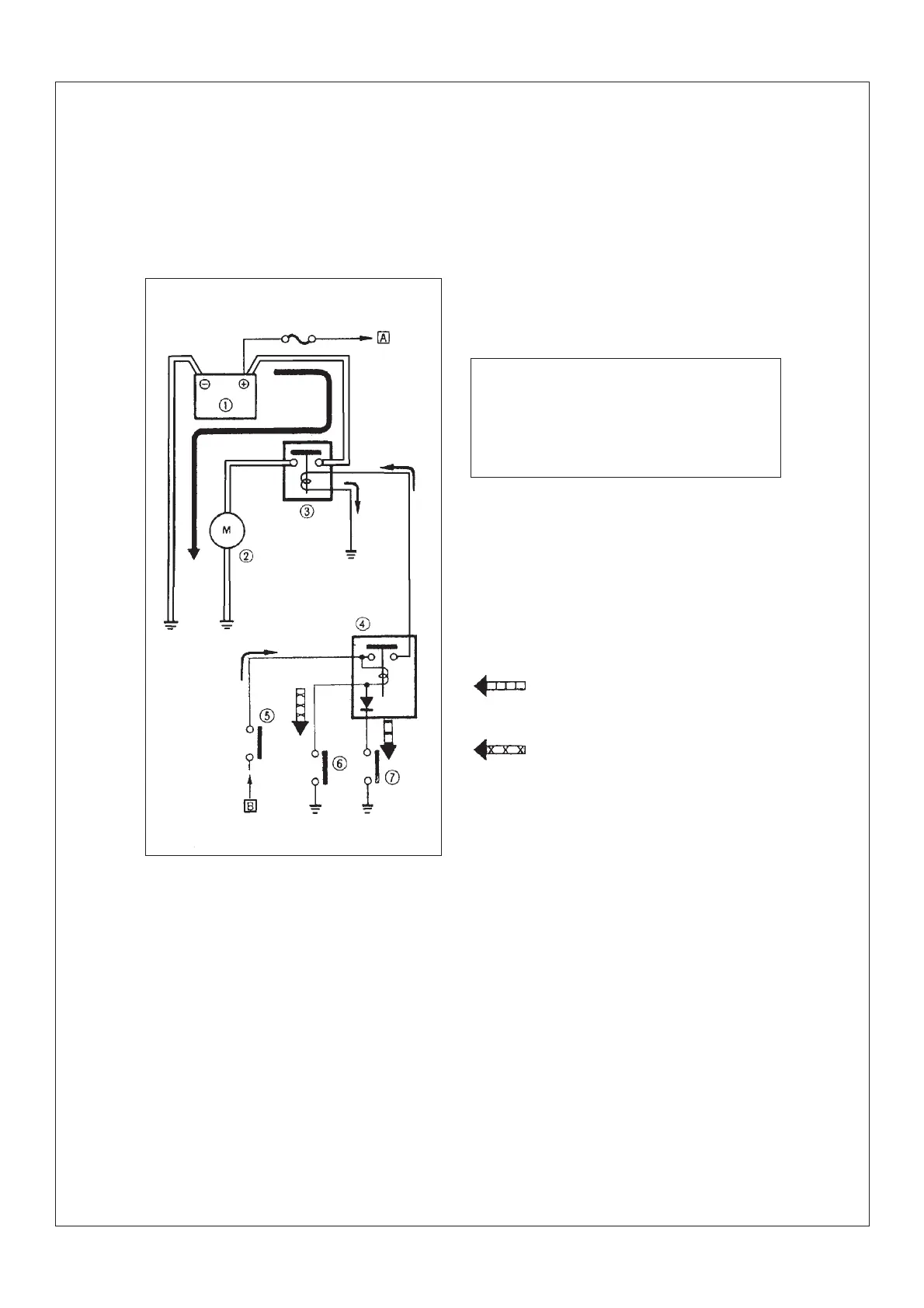

Section 4 Running of starting circuit
The starting circuit of this vehicle include start-
ing motor, cut-off relay, rear brake switch and
neutral switch. If the main switch is in position,
the starting motor could be operated only at
the following conditions:
¢ÙBattery
¢ÚStart motor
¢ÛStart relay
¢ÜCut-off relay
¢ÝStart switch
¢ÞRear brake switch
¢ßNeutral switch
(A)To main switch
(B)From main switch
When the vehicle is in driving or reverse start,
and the rear brake is in idle start, then the cut-
off relay will prevent starting device from
running.On this condition, cut-off relay is
closed, which leading the current can’t reach
to starting motor.
.Driving device is at neutral position(neutral
switch is closed)
.Tension brake switch (rear brake is closed)
When driving device is at neutral
position.
When rear brake is tensioned
- 122 -
