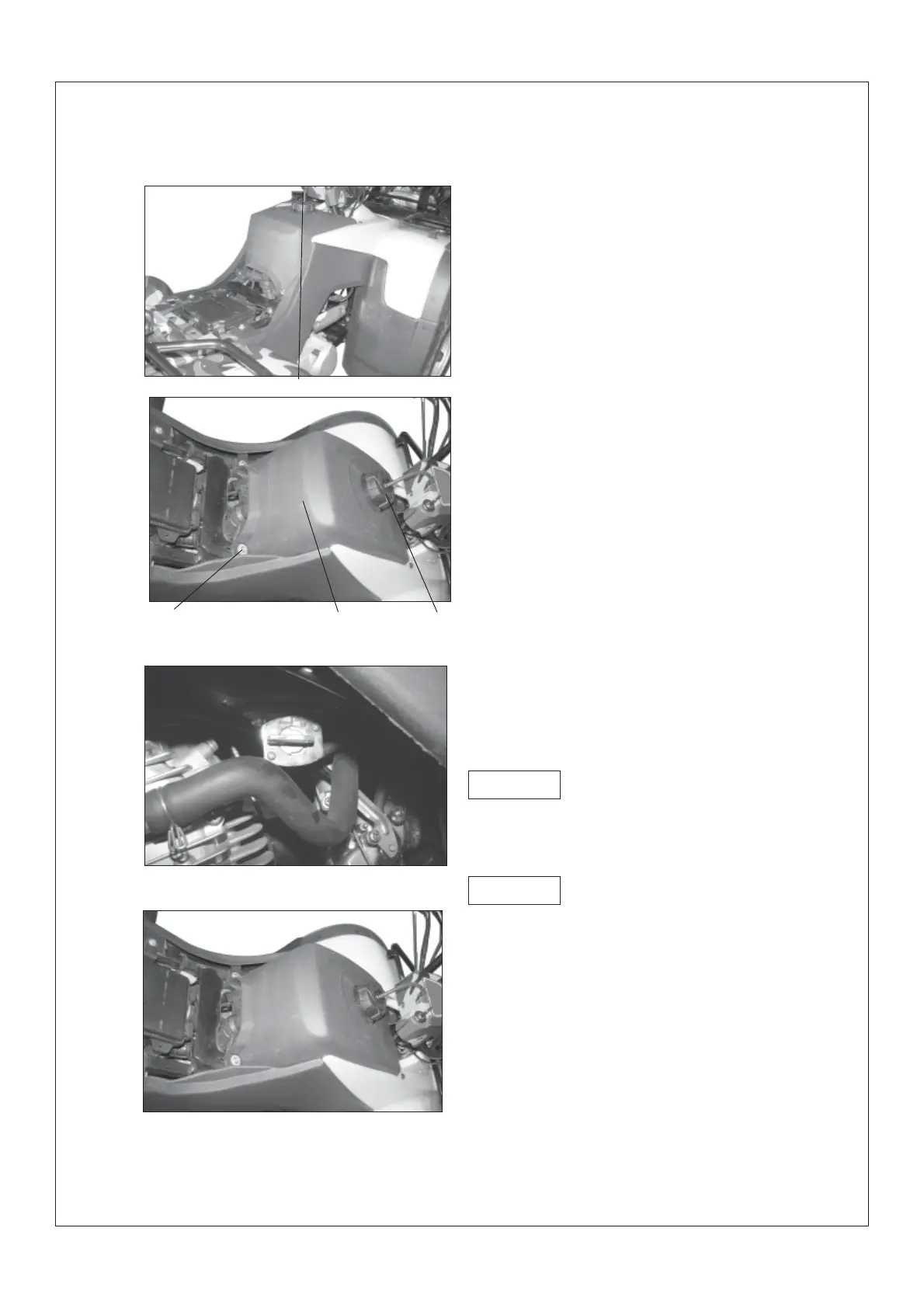

(III)Fuel tank
1.Disassembly
(1)Place the vehicle on the horizontal ground.
(2)Disassemble the cushion (see“Cushion
disassembly”of this section)
(3)Remove the air hose ¢Ùon the fuel tank
cover.
(4)Remove:
a.Bolt¢Ú, flat washer 30, installing bushing of
upper cover of fuel tank, washer and rubber
hood 2 of fuel tank.
b.Screw
c.Plastic expansion screw assy.
d.Fuel tank cover ¢Û.
e.Upper cover of fuel tank ¢Ü.
(5)Remove the rubber pad of fuel tank, and
screw the fuel tank cover onto the fuel tank
immediately.
(6)Pull the fuel cock lever to “OFF”position.
(7)Remove the fuel inlet pipe
Warning
Place a cloth on the engine to absorb the
splashed gasoline.
Caution
The gasoline is inflammable. Avoid splashing
it on the hot engine.
(8)Remove:
Bolt, flat washer 30, rubber hood of fuel tank
and installing bushing of fuel tank.
(9)Remove the air inlet pipe of air filter, sup-
porting pad of air pipe.
(10)Remove the fuel tank.
¢Ù
¢Ú
¢Û
¢Ü
- 35 -
