Section 9 Inspection of Lighting system

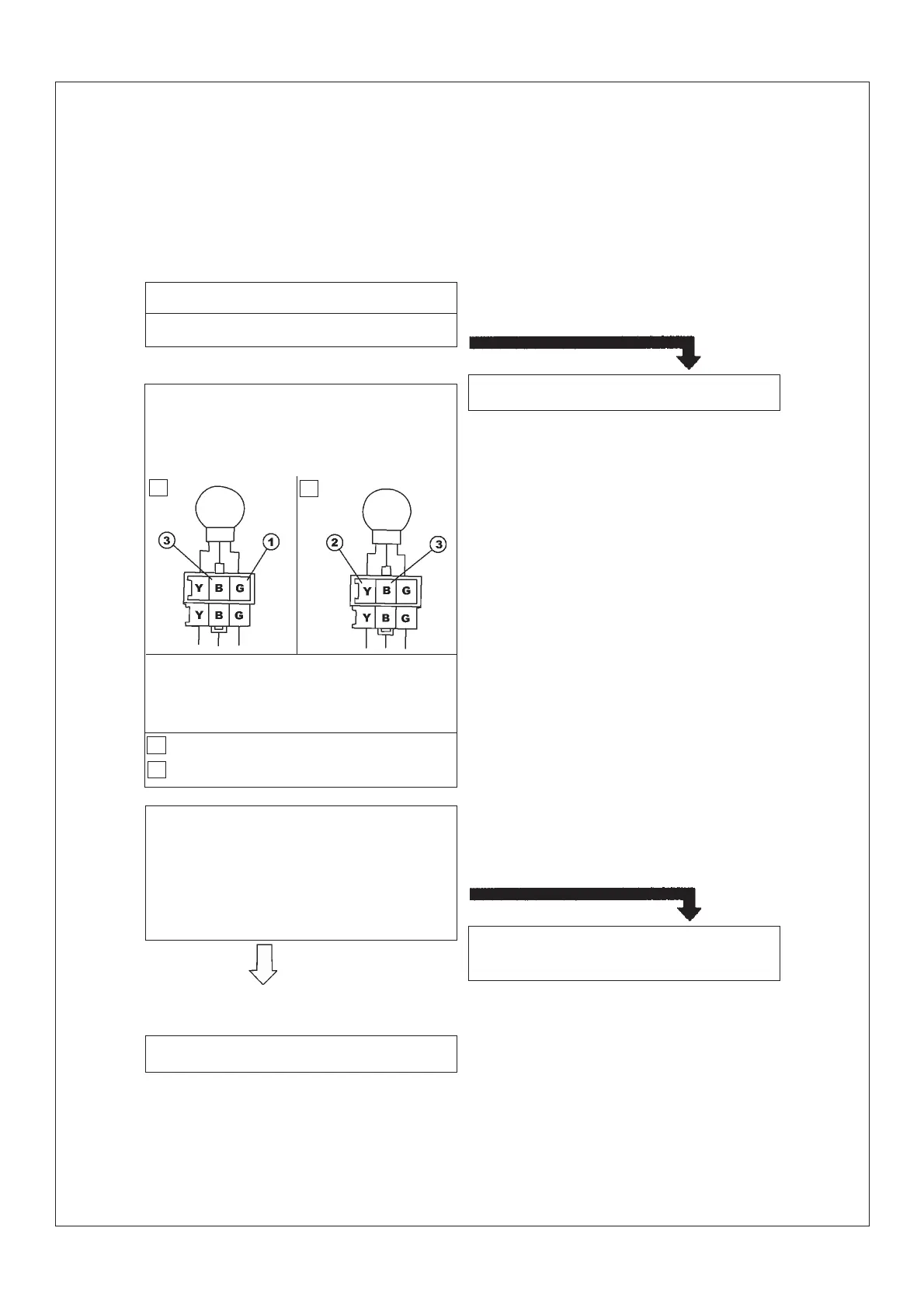

(I)If the headlight is out of work
1.Bulb and bulb socket
.Check the bulb and bulb socket condition
2.Voltage:
Connect multimeter to the coupler of head-
light socket(DC,20V)
B
A
Multimeter(+)¡úgreen terminal ¢Ùor yellow
terminal
¢Ú
Multimeter(-)¡úblack terminal¢Û
When lamp switch is adjusted to LO position.
When lamp switch is adjusted to HIposition.
A
B
.Adjust main switch to “ON”position.
.Adjust main switch to “ON”or
“HI”position.
.Check the voltage of
“green”and“yellow”wires in coupler of bulb
socket.
No electrification
Replace bulb and bulb socket
Out of specification
There is failure on the circuit from main switch
to bulb socket coupler. Repair it.
No failure on circuit
Meet specification
