ATV 200 - Section 5 Maintenance and Adjustment of Engine; (I)Adjustment of Clutch; (II)Clean of Air Filter

Section Five Maintenance and Adjustment of Engine

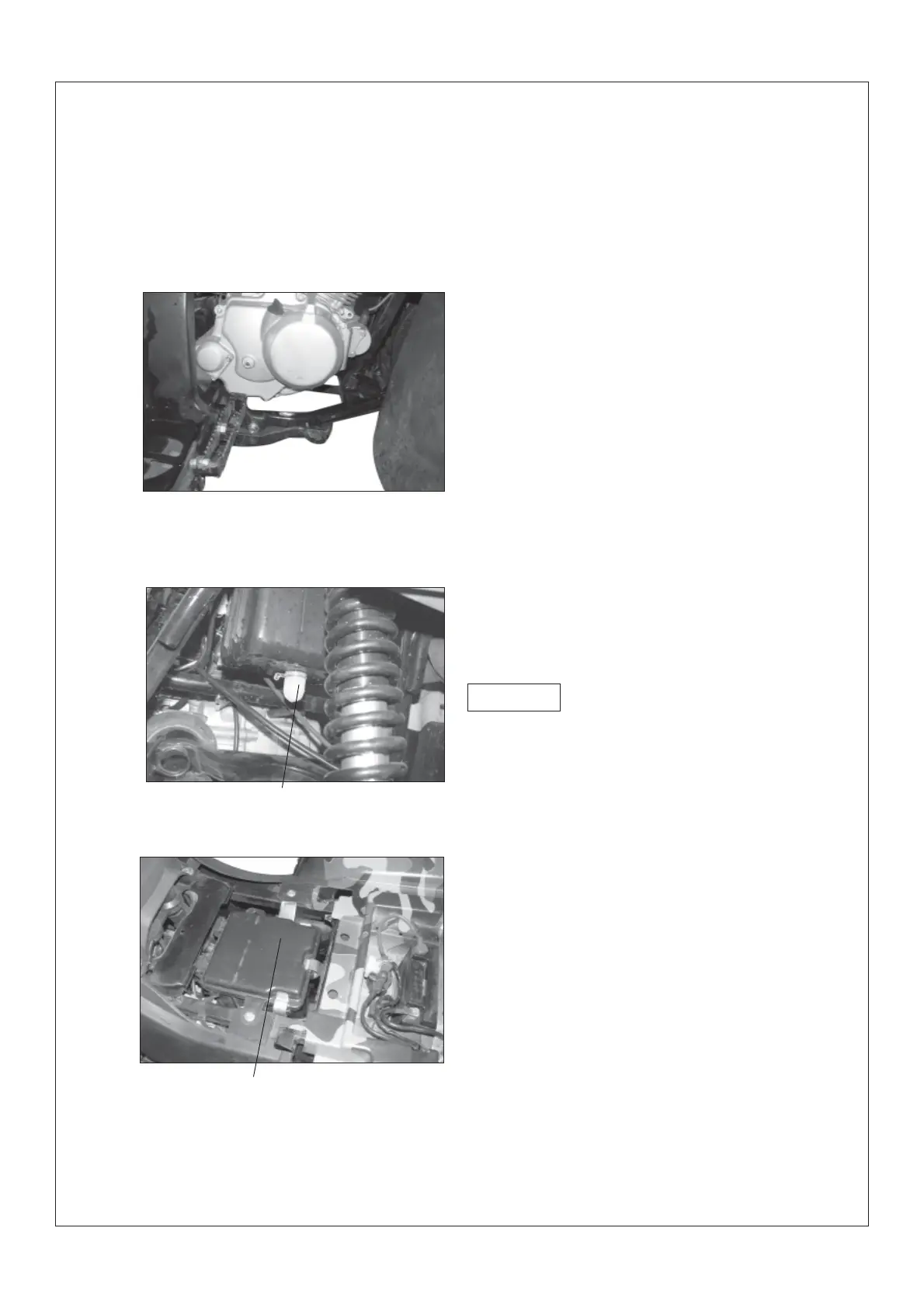

(I)Adjustment of clutch
Adjustment steps:
a.Loosen the locking nut
b.Turn the adjusting screw rod counterclock-
wise slowly up to be unable to turn,then turn1/
8 clockwise, and fasten the adjusting screw
rod to this position and tighten up the locking
nut with the torque of N.m.
Turn the adjusting screw rod counterclockwise
to decrease the clearance of clutch,Turn the
adjusting screw rod clockwise to increase the
clearance of clutch.
(II)Clean of air filter
There is a inspection cup ¢Ùon the bottom of
the air filter, if the dust or water deposited in
the cap, clean the filter core and fitter box of
air filter.
1.Remove the cushion (Refer to“cushion re-
moval” of this chapter)
2.Remove the air filter box cover ¢Ù,air filter
components.
Caution
¢Ù
¢Ù
- 53 -
