2.Adjust

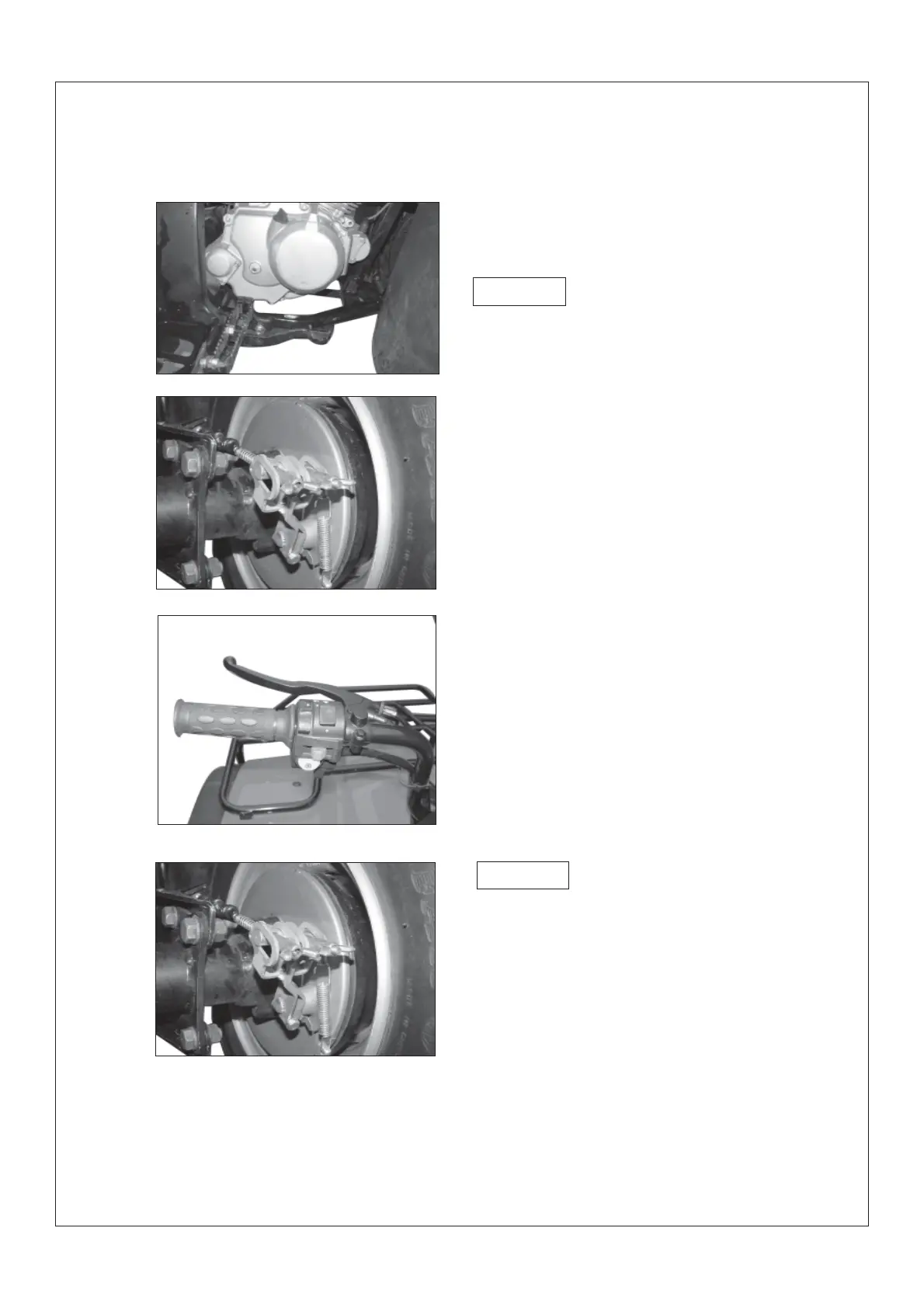

.Free clearance of rear brake pedal
Adjusting procedure:
Before adjusting, tread the rear brake pedal
2-3times.
.Loosen the locking nut completely, and screw
in the cable adjusting screw completely.
.Loosen the adjusting nut of rear brake cable
and adjusting nut of rear brake pedal.
.Tighten up the adjusting nut of rear brake
pedal until gaining correct clearance:
Free clearance (rear brake pedal ): 20-30mm.
.Rotate the adjusting nut of rear brake cable
until gaining correct clearance : 0-1mm
.Screw out the adjusting screw of rear brake
cable until gaining correct free clearance:
Free clearance(left lever ):5-7mm
.Screw up the locking nut
.Check the free clearance of left lever and
rear brake pedal.
If not conforming to standard value, repeat
above procedures to adjust.
After adjusting, raise the rear wheels from the
ground and rotate them to confirm no brake
force to block the rotation. Otherwise repeat
above adjustment.
Caution
Warning
- 41 -
