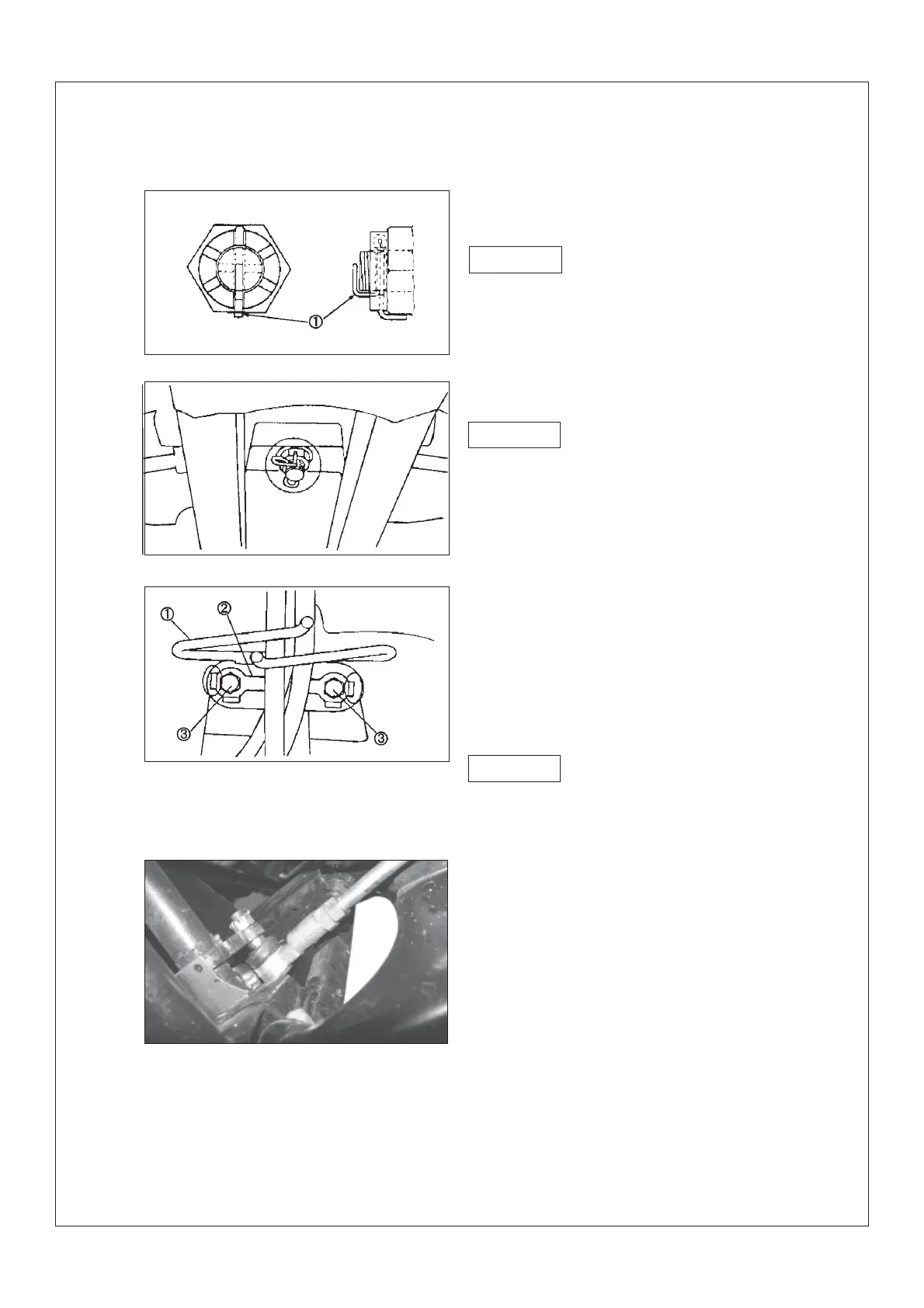

7.Mounting split pin¢Ù
Don’t loosen the nut after the torque is fixed.
If the nut recess is not correspondence with
split pin hole on the double -screw bolt, tighten
the nut to align them.
Always use new split pin
8.Tighting
After mounting the washer,nut, split pin under
the steering vertical column.
Nut torque:30Nm
9.Install
Clip¢Ùlocking washer¢Úbolt ¢Û
Attached:bolt torque:23Nm
Always use new locking washer.
10.Bent showing supporting lug of locking
washer to lock tightly the bolt.
11.Fill the lubrication oil at the oil cup to lubri-
cate the bearing under the steering vertical
column.Lubrication oil is Lithium base grease.
Warning
Caution
Warning
- 99 -
