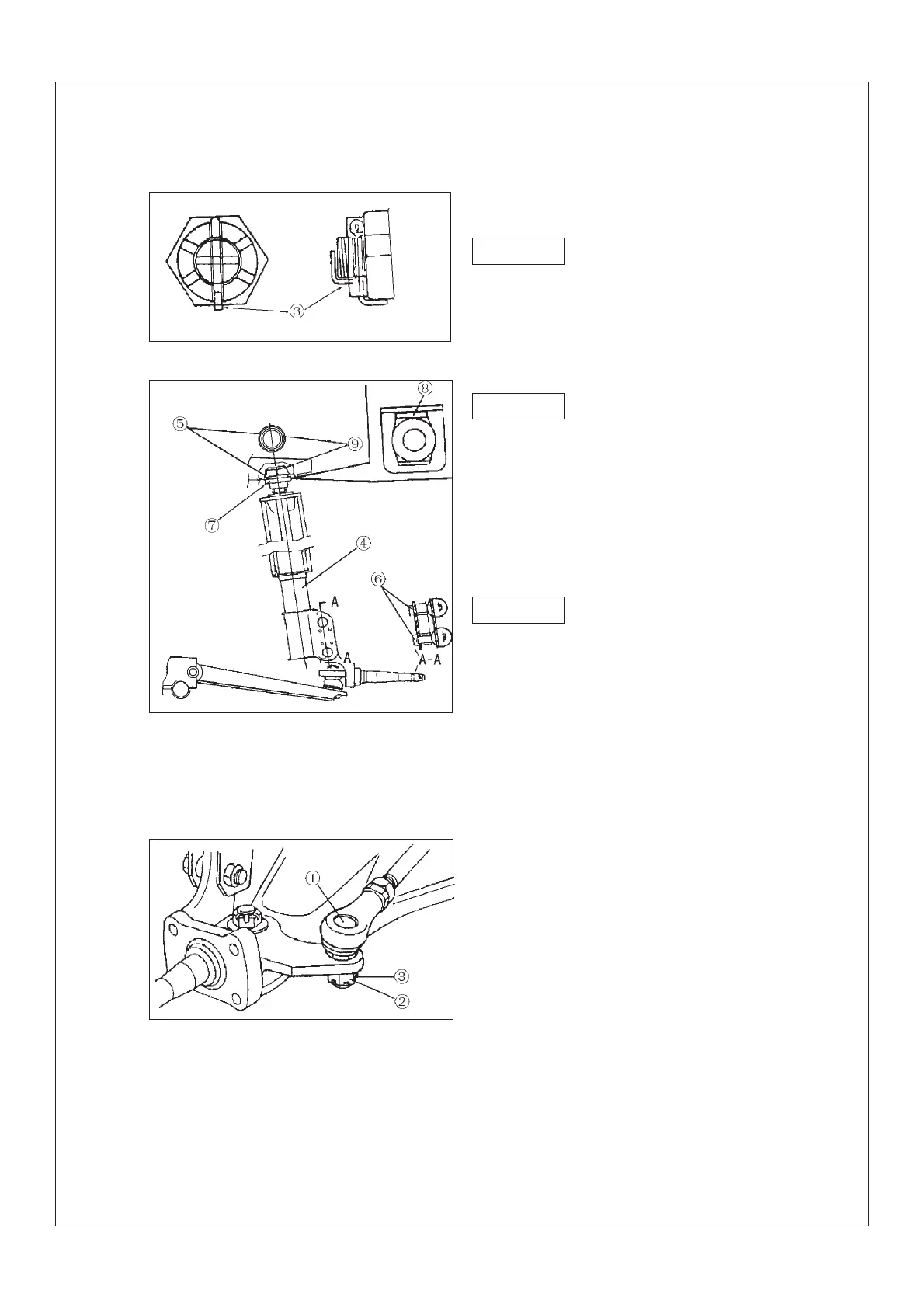

5.Mount the split pin ¢Û
Don’t loosen the nut after marking the stan-
dard torque.If the recess on the nut is not cor-
respondence with split pin hole on the bolt,
correct it by tightening the nut.
Must use new split pin.
6.Mount:
Front shock absorber ,front shock absorber nut
¢Ý,bolt ¢Þunder the front shock absorber.
Before fixing the front shock absorber nut¢Ý,
Must ensuring the side plane ¢à of universal
joint¢ßis limited by frame limited block.
In order to the head of bolt is forward, the cor-
rection of bolt mounting direction ¢Þ under the
front shock absorber should be guaranteed.
7.Tighten the nut ¢Ý,bolt of front shock
absorber ¢Þ
Attached:Nut torque of front shock absorber:
55Nm
Botl torque :78Nm
8.Mount circlip¢ß
9.Mount steering lever ball pin assembly ¢Ù,
nut ¢Úand split pin¢Û
Attached: Nut torque:25Nm
