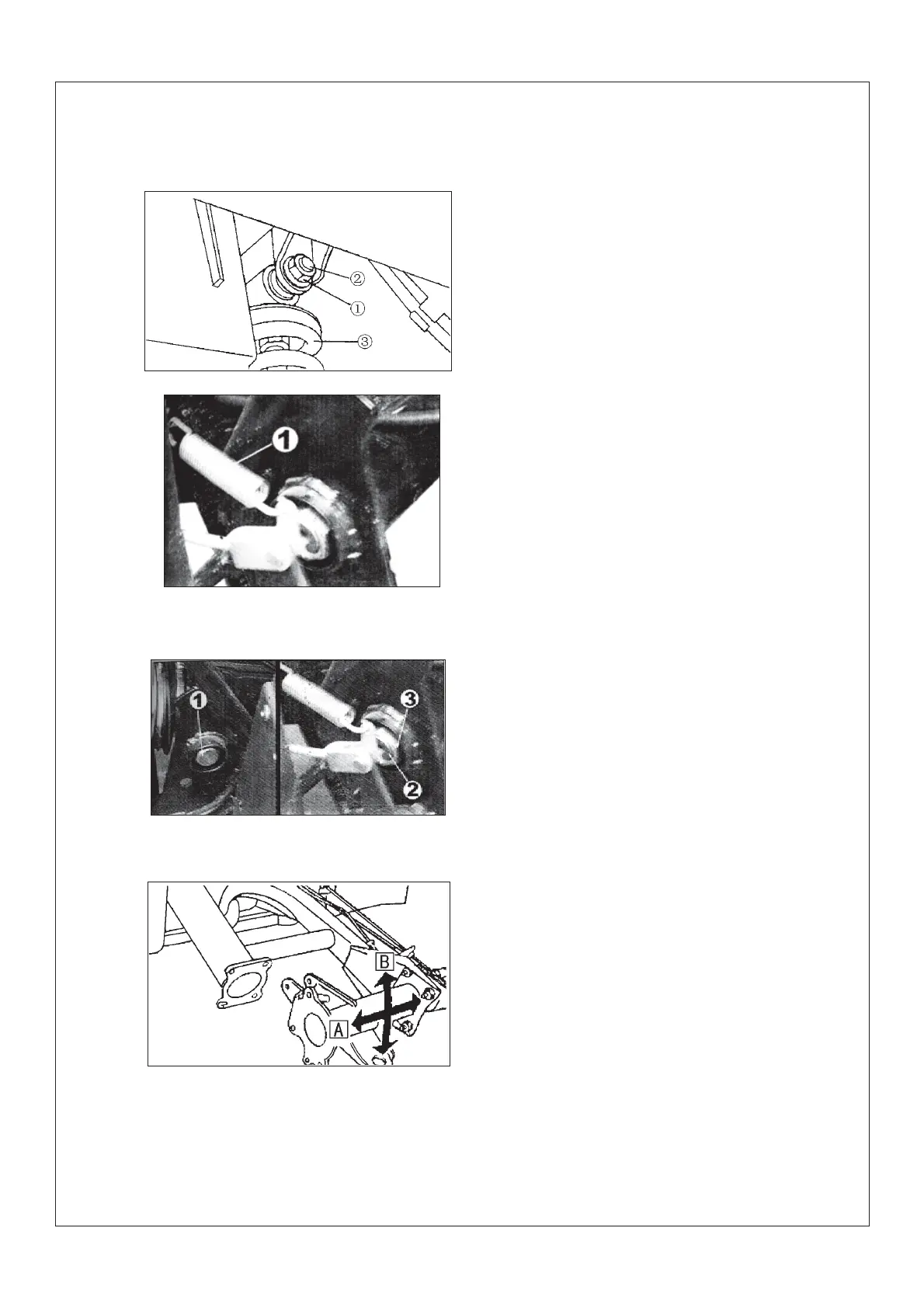

5.Take off nut ¢Ùon the rear shock absorber,
bolt ¢Ú,rear shock absorber ¢Û.
6.Take off rear brake tension spring ¢Ù
7.Take off dusty cap on rear arm axle (¢Ù.¢Ú
point)
8.Check the free clearance of rear wheel fork
checking steps.
a:Check the torque value of rear arm joint bolt
¢Ùand the torque value of rear arm bolt ¢Ú
and nut ¢Ûof rear wheel fork right side.
Attached:Torque of rear arm joint bolt¢Ùand
nut¢Û is 130N.m
Torque of rear arm joint nut¢Ú is 6N.m
b:Move the rear wheel fork across to check
the side clearance (A).If the clearance is big,
check the relevant parts of bush bearing 30203
and frame.
Attached:Free clearance value is less than 1.
00mm
c:Move the rear wheel fork up and down to
check the vertical clearance.If the clearance
is too tight limited or uneven, check the rel-
evant parts of bush bearing 30203 and frame.
- 108 -
