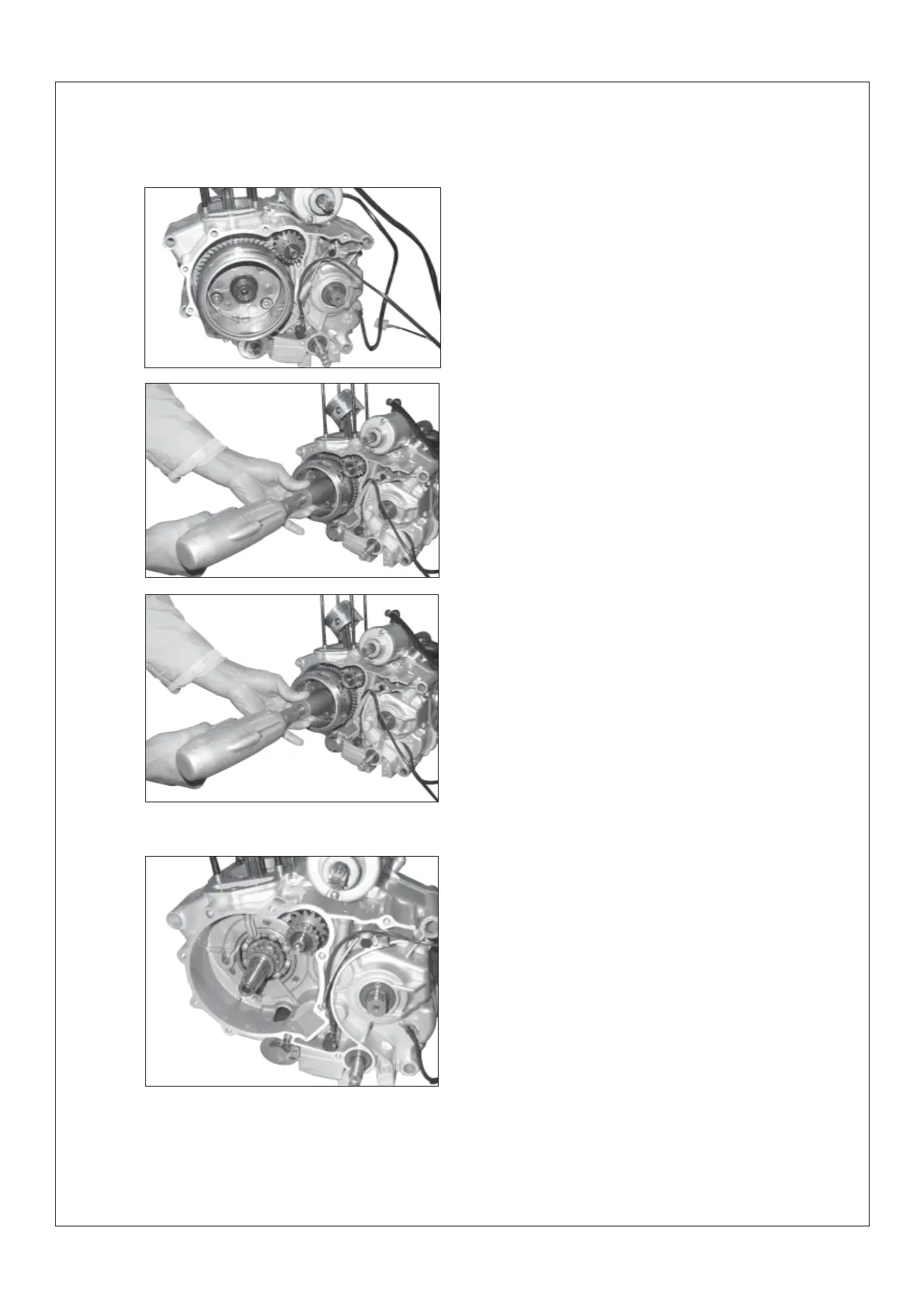

13.Remove

.Gasket of left crankcase cover

.Location pin

.Intermediate gear shaft

.Washer

.Duplex intermediate gear(starting motor)

14.Remove

.Magneto

Caution:

Disassemble the magneto rotator with special

tool

15.Remove

.Semicircle key

.Electric starting gear assy

.Washer

16.Remove

.Upper guide plate(air intake side)

.Timing chain

- 148 -
