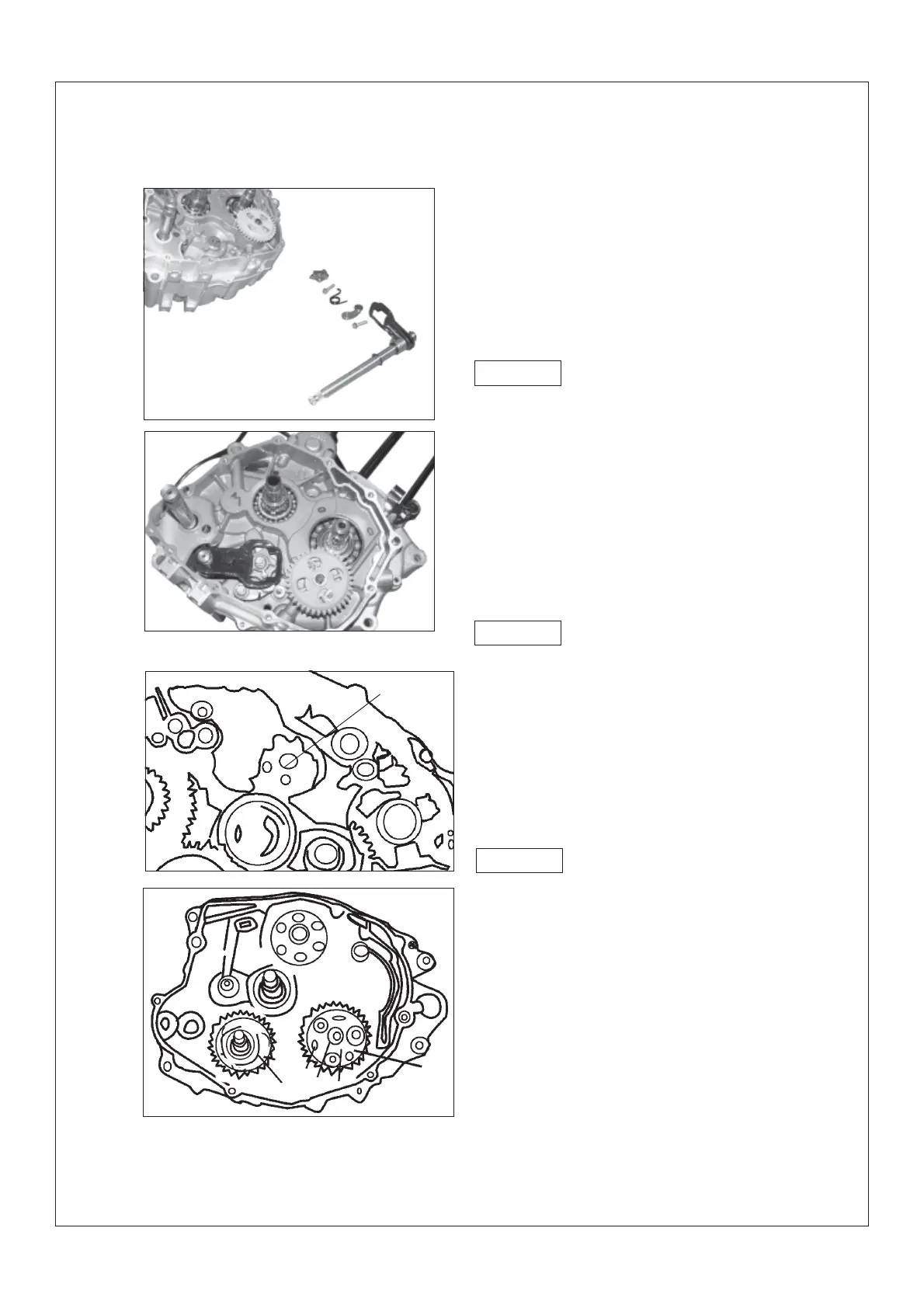

23.Remove
.Shift lever unit
.Washer
.Limit torsion spring
.Limit lever unit
Pull the limit lever unit and shift lever unit along
the arrow direction, then you can remove them
from the star-shaped gear.
24.Remove
.Star-shaped gear (on shift cam)
.The location pin is easy to drop down. pay
attention not to lose it.
25.Remove
.Nut (balance shaft gear)
.Slap the locking washer flat before removing
the nut
.Put a cloth folded thickly between the bal-
ance shaft gear ¢Ùand balance shaft driving
gear ¢Úfor seizing to prevent the rotation of
the two gears when removing the nut.
Caution
Caution
Caution
¢Ù
¢Ú
¢Ù
¢Û
- 151 -
¢Ù
¢Ú
